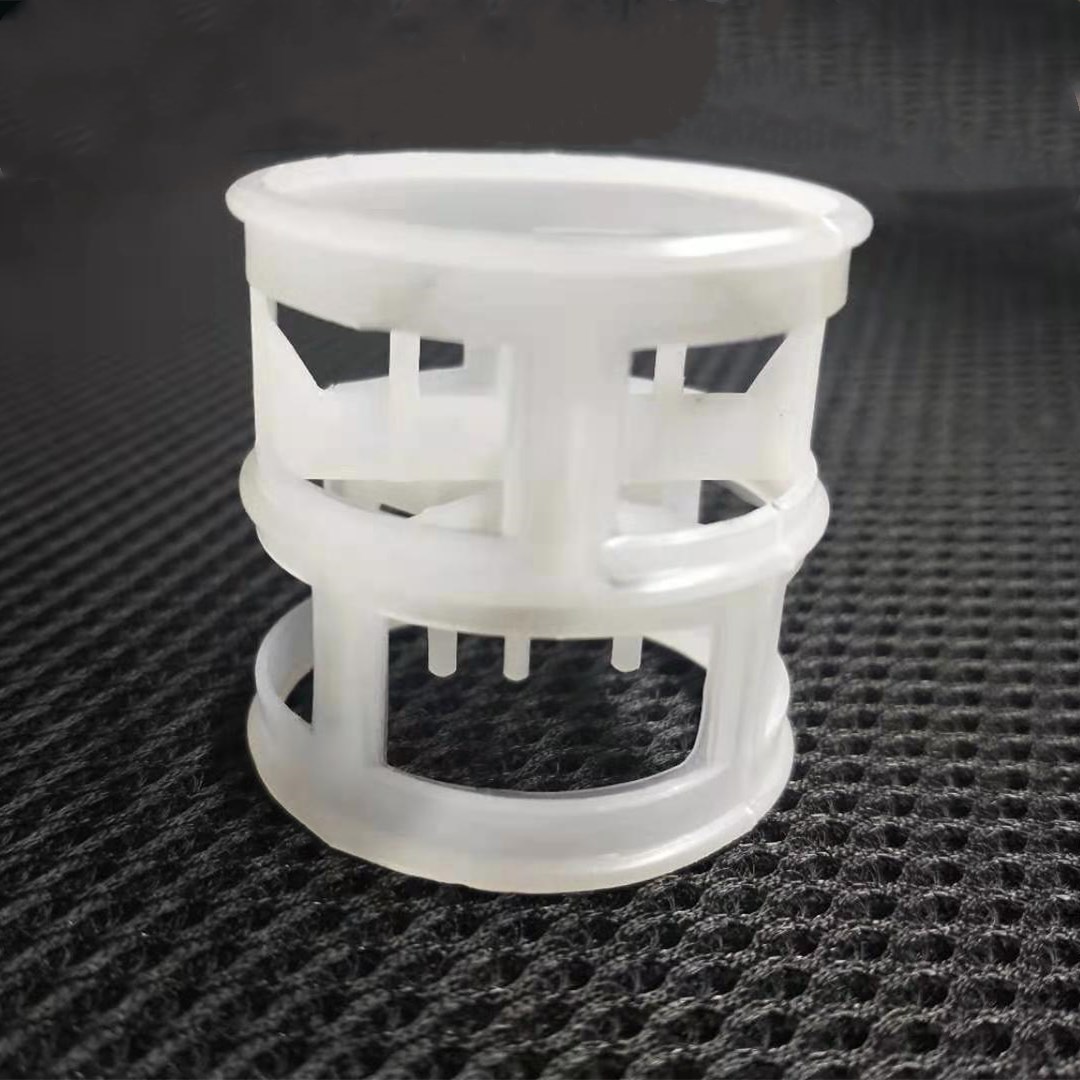

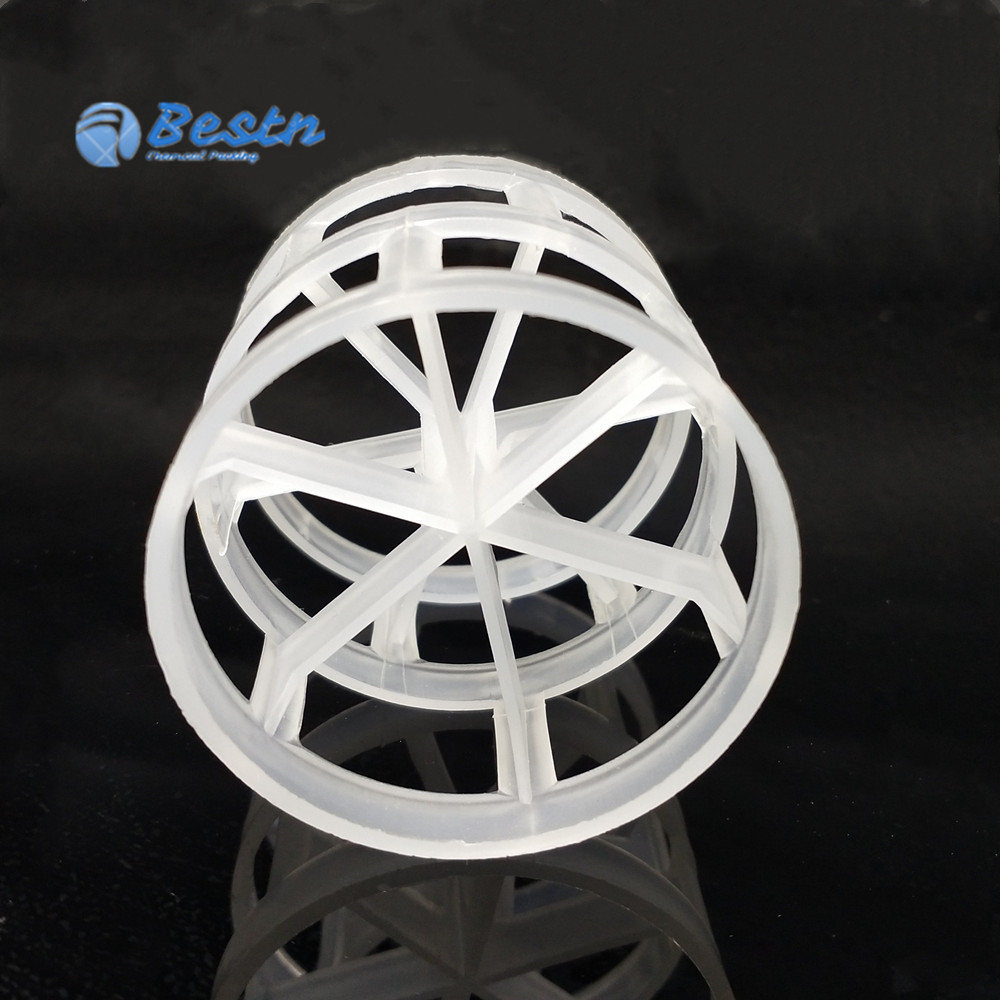

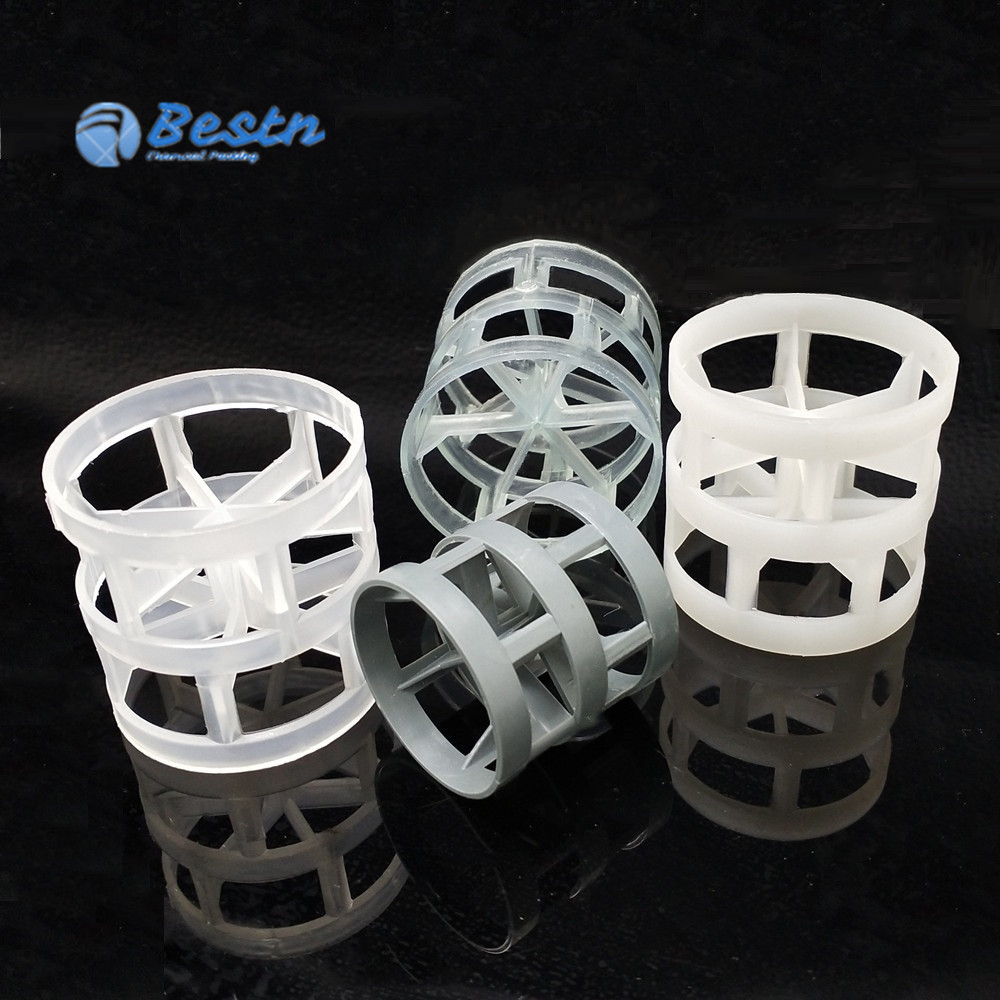

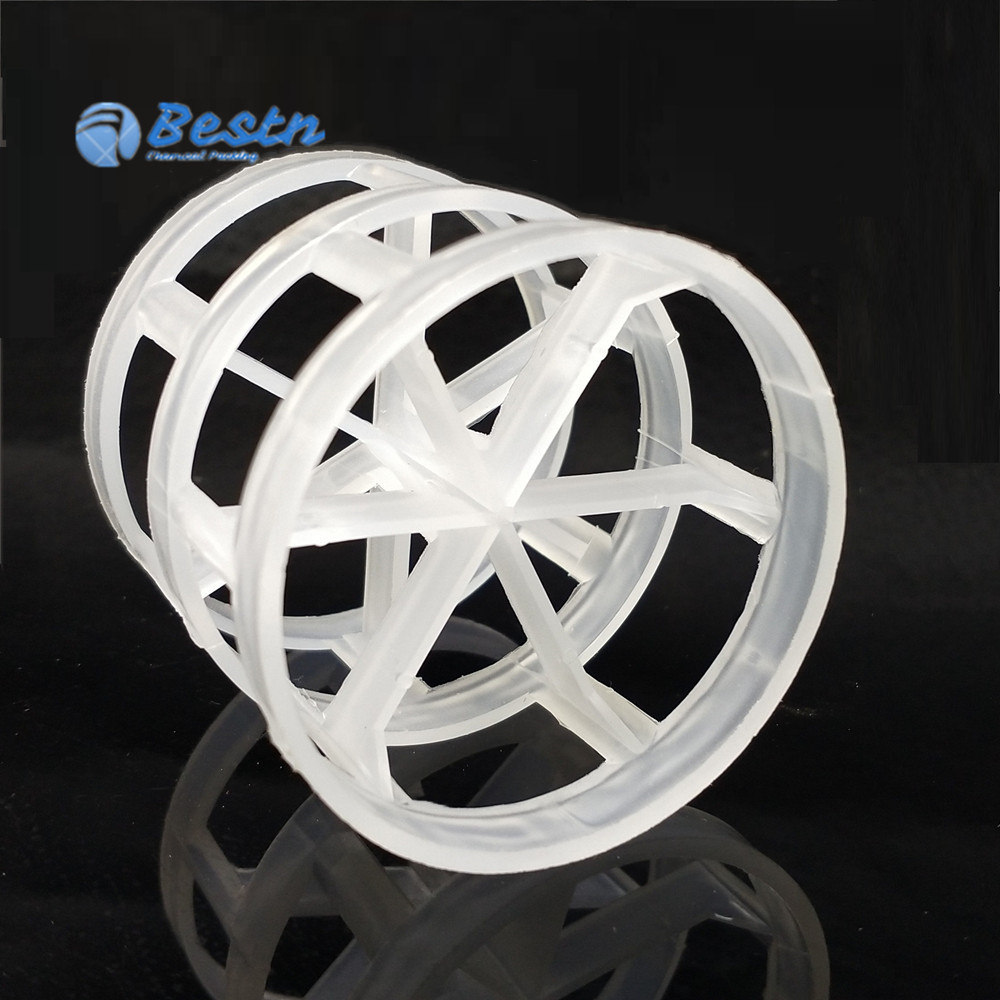

Plastic Pall Ring

Model Number:BS-PPR

Place of Origin:Pingxiang

Keywords:pall ring, pp pall ring, pall ring packing, 50mm pall ring

Plastic pall ring is made from heat resistant and chemical corrosion resistant plastics, including polyethylene (PE), polypropylene (PP), reinforced polypropylene (RPP), polyvinyl chloride (PVC), chloridized polyvinyl chloride (CPVC) and polyvinylidene fluoride (PVDF).

INQUIRE NOW Contact us 86 (0) 799 6699600 / 0086 15179934828 info@bestpacking.cn
jenny@towerpacking.cn

Pall ring has features such as high free volume, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high mass transfer efficiency and so on, and the application temperature in media ranges from 60 to 150.

For these reasons it is widely used in the packing towers in petroleum industry, chemical industry, alkali-Chloride industry, coal gas industry and environmental protection, etc.



Technical data:

Item

Plastic Pall Rings

Model

Dimension (mm)

No. per volume

Surface Area

Void Volume

Dry packing

factor

Dia x Hgt x Thk

Pcs/m3

m2/m3

%

m-1

PPR-16

16X16X1.0

180000

188

91.1

275

PPR-25

25X25X1.2

49000

175

90

239

PPR-38

38X38X1.4

13600

155

89

220

PPR-50

50X50X1.5

6300

93

90

127

PPR-76

76x76x2.6

1830

73.2

92

94

Application

- Aviation industry

- Automotive industry

- Brominating plants

- Chemical industry

- Caustic soda plants, CL lines

- Deionization plants

- Pharmaceutical industry

- Paper and pulp process lines

Material

Polyethylene (PE), polypropylene (PP), reinforced polypropylene (RPP),

polyvinyl chloride (PVC), chloridized polyvinyl chloride (CPVC) and

polyvinylidene fluoride (PVDF).

Delivery Time

7-10 days since payment receipt.

Loading :

Package

Plastic bag

Super sack

Carton

1X20GP

25m3

20-24m3

20m3

1X40GP

54m3

40m3

40m3

Physical & chemical properties of plastic Random Packing:

Performance / Material

PE

PP

RPP

PVC

CPVC

PVDF

Density (g/cm3)

0.94-0.96

0.89-0.91

0.93-0.94

1.32-1.44

1.50-1.54

1.75-1.78

Operation Temp.(oC)

90

>100

>120

>60

>90

>150

Chemical corrosion resistance

Good

Good

Good

Good

Good

Good

Compression Strength(Mpa)

>6.0

>6.5

>7.0

>6.0

>8.0

>10.0
