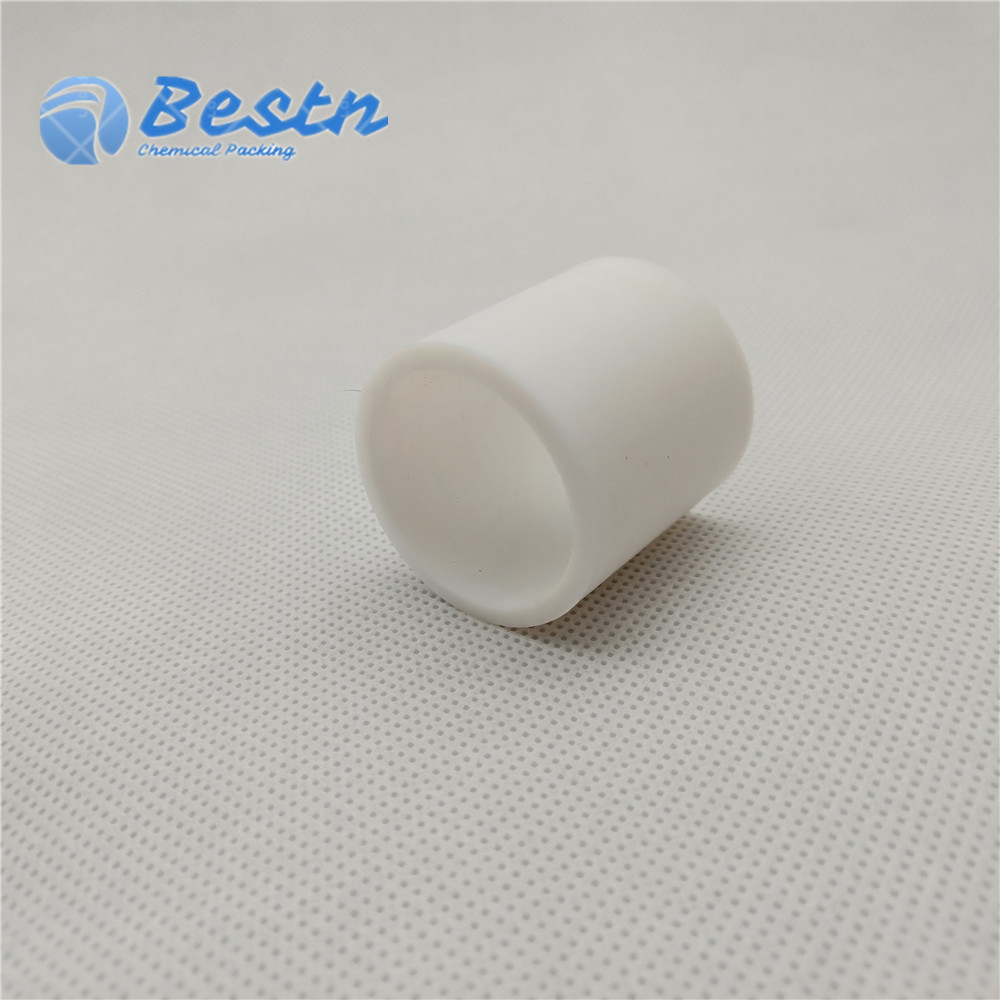

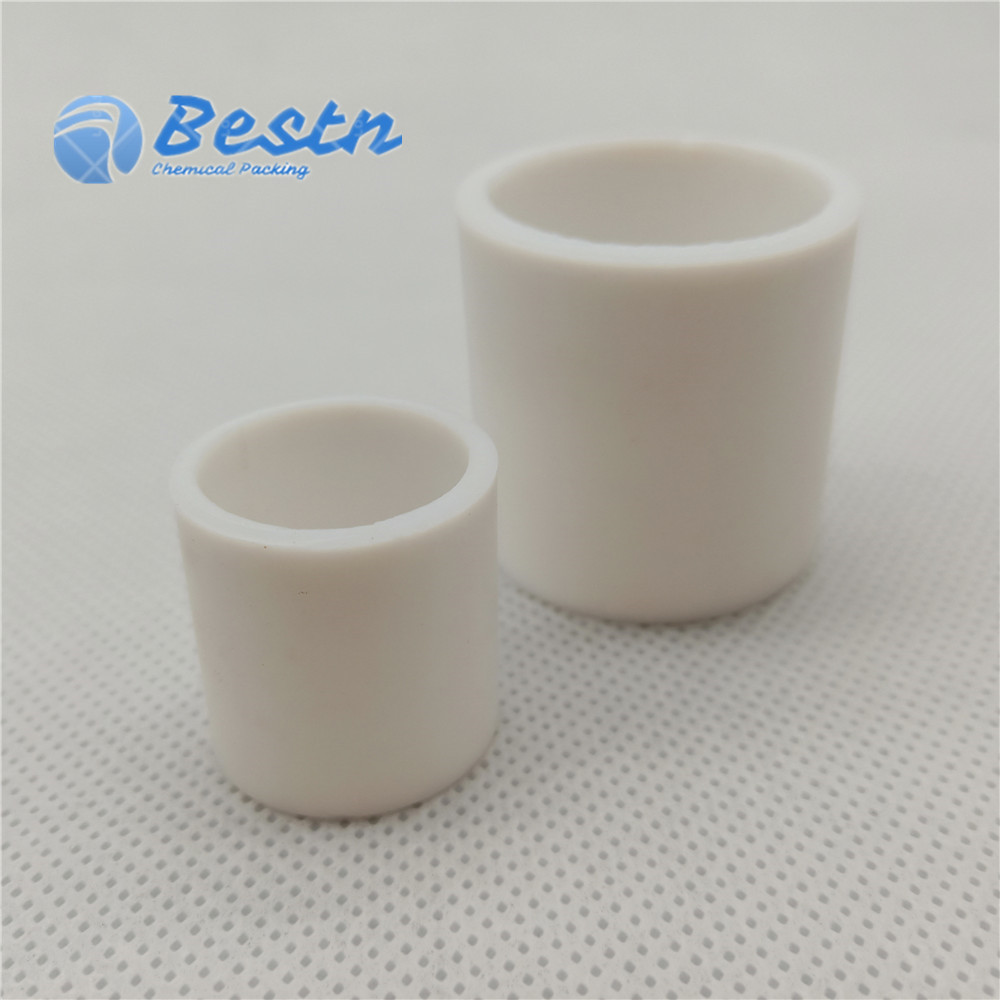

PTFE Raschig Ring
Model Number：BS-PTRR
Place of Origin：Pingxiang,China
Keywords：PTFE Raschig Ring,F4 Rashig ring , Polytetrafluoroethylene raschig ring
Low pressure drop, high throughput, high efficiency and good liquid distribution; our newly-developed reinforcing pall ring is resistant to high temperature 250 ℃ (no deformation) and can ensure smooth flow of gas and liquid medium.
INQUIRE NOW
Contact us
86 (0) 799 6699600 / 0086 15179934828
jenny@bestpacking.cn
With opening in the wall, PTFE raschig ring can improve distribution of gas and liquid and enable full utilization of inner surface area.
Performance parameters
Specification
mm
Capacity
kg/m3
Packing number
n/m3
Specific surface area
(m2/m3)
Void ratio
(%)
20×20×2
522
110000
267
0.928
25×25×2
423
56000
219
0.934
38×38×3
368
14000
165
0.946
50×50×4
390
6500
113.5
0.949
65×65×4
480
4600
84
0.948
76×76×5
328
1850
73
0.92
Features
Low pressure drop, high throughput, high efficiency and good liquid distribution; our newly-developed reinforcing pall ring is resistant to high temperature 250 ℃ (no deformation) and can ensure smooth flow of gas and liquid medium.
