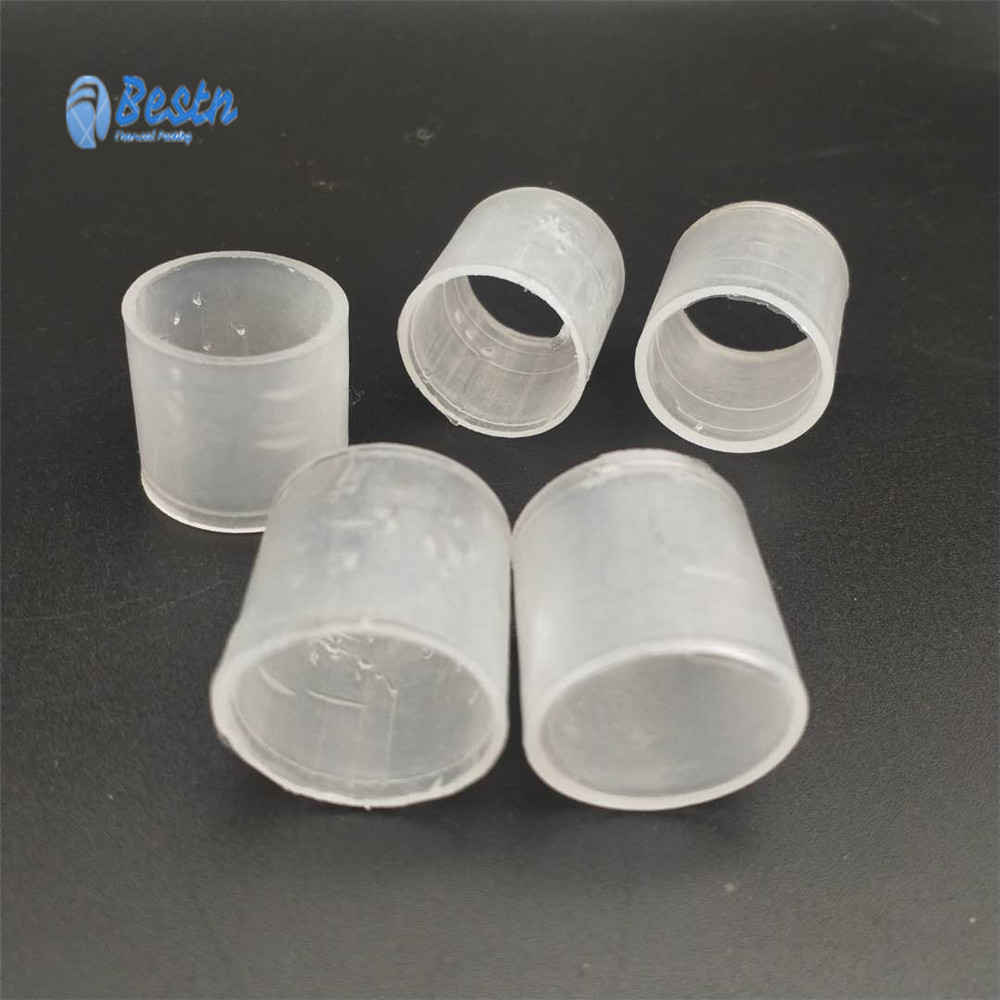

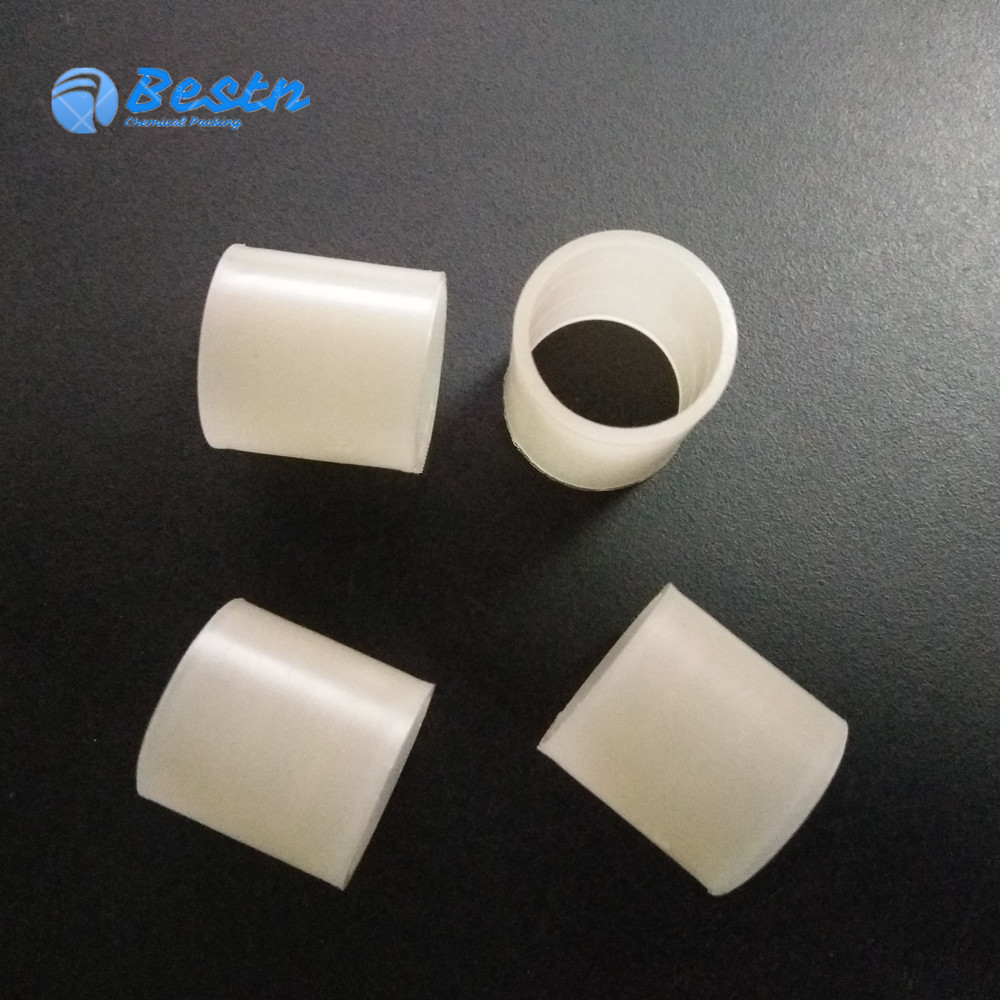

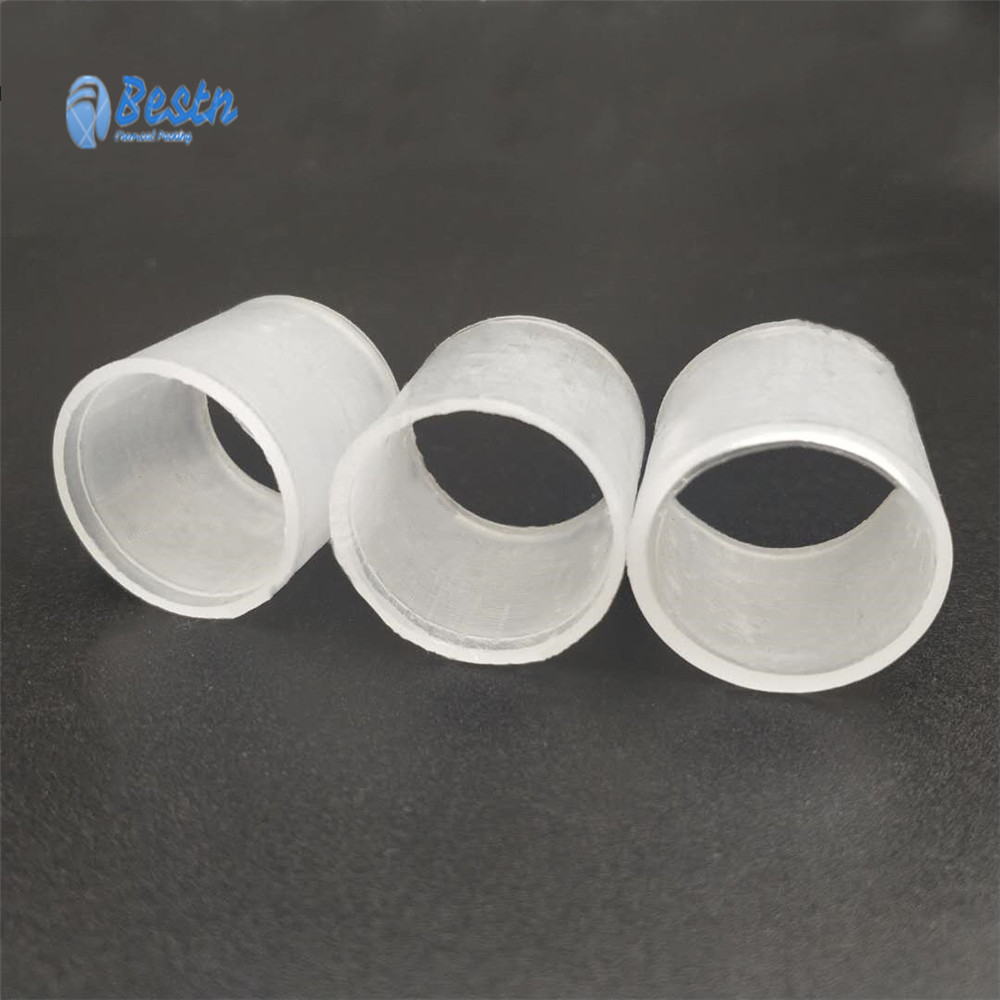

Plastic raschig ring
Model Number:BS-PRR
Place of Origin:Pingxiang,China
Keywords:Plastic raschig ring ,PP Raschig ring, pvdf raschig ring, random packing
It provide a large surface area within the volume of the column for interaction between liquid and gas or vapour.
INQUIRE NOW
Contact us
86 (0) 799 6699600 / 0086 15179934828
jenny@bestpacking.cn
Introduction:
Plastic raschig ring is the most early-developed product in random packing.It has a simple shape with equal length at its diameter and height.It provide a large surface area within the volume of the column for interaction between liquid and gas or vapour.
Characteristic:
1. Low pressure drop, large void space, large flux, high mass-transfer effiency, low energy consumption etc.
2. Excellent distribution in tower packing.
3. Widely used in seperation and absorption process, reducing pressure for device, deviating sulfur for your systems. Can easily isolate Ethylbenzene, Toluene, Trimenthypentane etc.
4. Package: Enhanced plastic super bag in jumbo bag, wooden case or carton. Other packing methord are available upon our request. Different package, different packing size, it's optional.
5. Operational temperature range: Up to +150°c
Product specification
Size(mm)
Number per m3
Bulk density(kg/m3)
Free volume (%)
Surface area
Φ15*15*0.3
240,000
385
94
360
Φ25*25*0.3
51,000
231
96
215
Φ38*38*0.4
14,500
207
96
135
Φ50*50*0.5
6,300
200
96
105
Φ80*80*0.8
1,600
200
96
80
(m2/m3)
