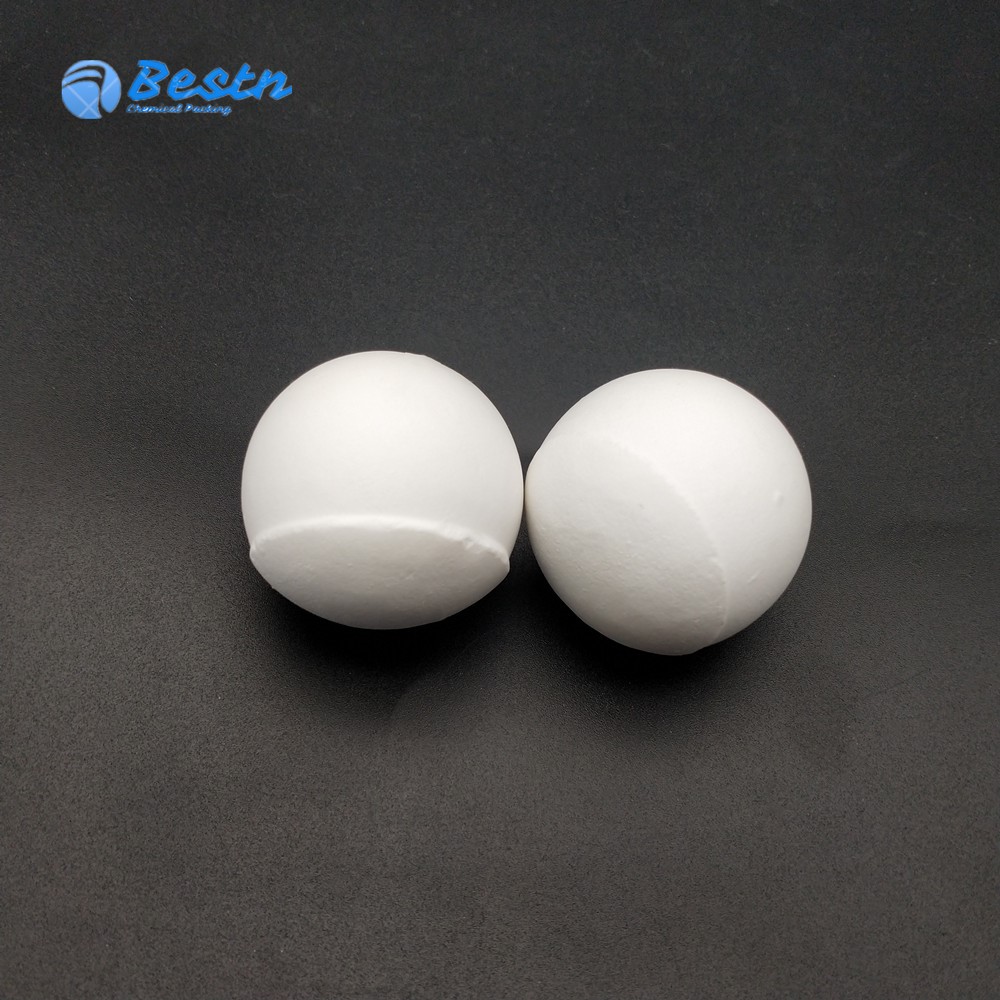

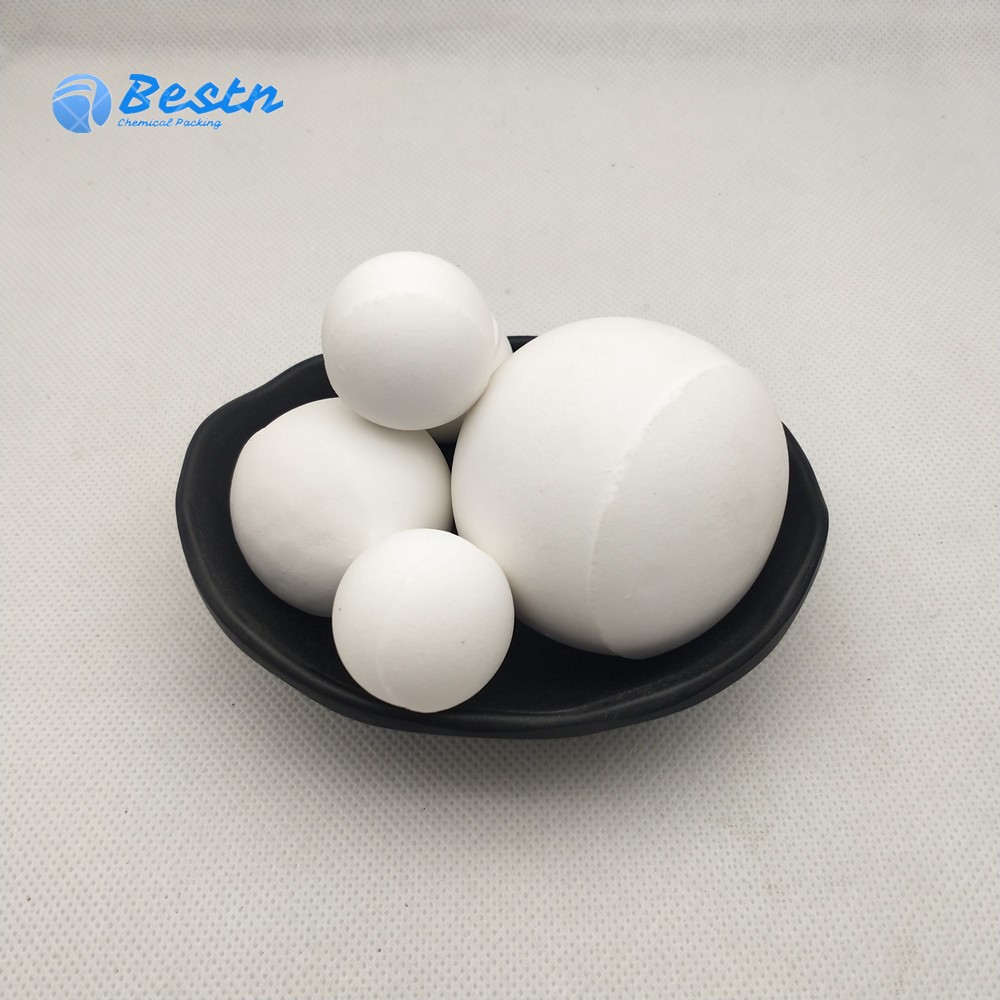

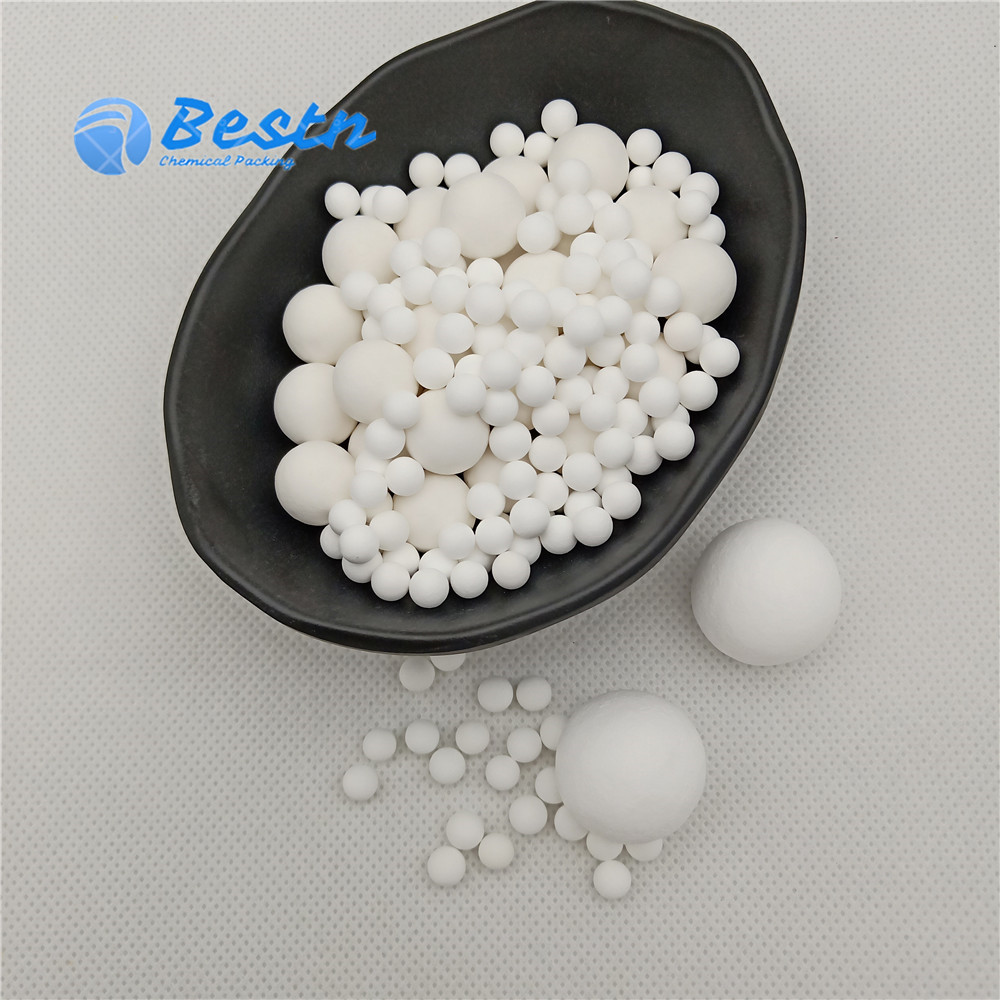

Grinding Ceramic ball

Model Number:BS-GCB

Place of Origin:Pingxiang,China

Keywords:high alumina grinding ball , 92% Al2O3 ball, grinding ball

Alumina grinding ball has been widely used in ball mills as abrasive media for ceramic raw materals and glaze materials in ceramic factors, cement factories, enamel factories and glasswork owing to the extraordinarily high density, high hardness, high wear resistance.

INQUIRE NOW Contact us 86 (0) 799 6699600 / 0086 15179934828 info@bestpacking.cn
jenny@towerpacking.cn

Alumina grinding ball has been widely used in ball mills as abrasive media for ceramic raw materals and glaze materials in ceramic factors, cement factories, enamel factories and glasswork owing to the extraordinarily high density, high hardness, high wear resistance. During the abrasive/grinding processes, ceramic aballs will not be broken, it will not comtaminate the materials to be grinded.


Application:

1)Grinding ceramic ball is one ideal ball mill grinding media, it can keep the purity and improve the stability of grinded materials.

2)The alumina grinding ball have been widely used in ball mills as abrasive media for ceramic raw materials and glaze materials in ceramic factories, cement factories, enamel factories and glasswork.

3)The main features are high density, high hardness and strength, high wear resistance, thermal stability, corrosion resistance and non-pollution etc.

4)During the abrasive/grinding processes, ceramic balls will not be broken, it will not contaminate the materials to be grinded.

5)Type: According to the content of aluminum oxide: 60-70%, 65-75%, 95%.


Typical Characteristics

Specification

65Alumina Ball

75Alumina Ball

90Alumina Ball

92Alumina Ball

95Alumina Ball

99Alumina Ball

Al2O3(%)

65

75

90

92

95

99

Fe2O3(%)

0.5

0.5

0.1

0.1

0.1

0.1

Mohs Hardness

8

8~9

9

9

9

9

Water Adsorption (%)

0.05

0.05

0.02

0.02

0.02

0.01

Density (g/cm3)

2.95

3.25

3.55

3.60

3.65

3.8

Crush Strength (MPa)

1650

1700

1900

2000

2250

2500

Abrasion Loss (%)

0.03

0.02

0.01

0.01

0.01

0.01


Appearance Demand



High Alumina Grinding Balls

Medium Alumina Grinding Balls

Carbonized Alumina Grinding Balls

Color

White

White

Ash-black

Crack

Not Permission

Not Permission

Not Permission

Impurity

Not Permission

Not Permission

Not Permission

Foam hole

Above ф1mm not permission, size in ф0.5mm permit 3 balls

Flaw

Max. size in ф0.3mm permit 3 balls


Advantage

(1) High wear-resistance:
The alumina balls’ wear-resistance is higher than the common alumina balls’. When it is working, the ball won’t pollute the grinding materials, so it can keep the purity and improve the stability of grinded materials especially the ceramic glaze.

(2) High density
High density, high hardness and the high grinding characters save the grinding time, enlarge the smashing room. So it can improve the grinding efficiency.




Package
