Refractory Ceramic Ball
Model Number：BS-RCB
Place of Origin：Pingxiang,China
Keywords：Ceramic fire-resistant ball,Refractory Ceramic Ball, heat storage ball
Refractory balls include ordinary refractory ball and high alumina refractory ball. The ordinary refractory ball is suitable for converter and shift converter of sulfuric acid and fertilizer industry.
INQUIRE NOW
Contact us
86 (0) 799 6699600 / 0086 15179934828
jenny@bestpacking.cn

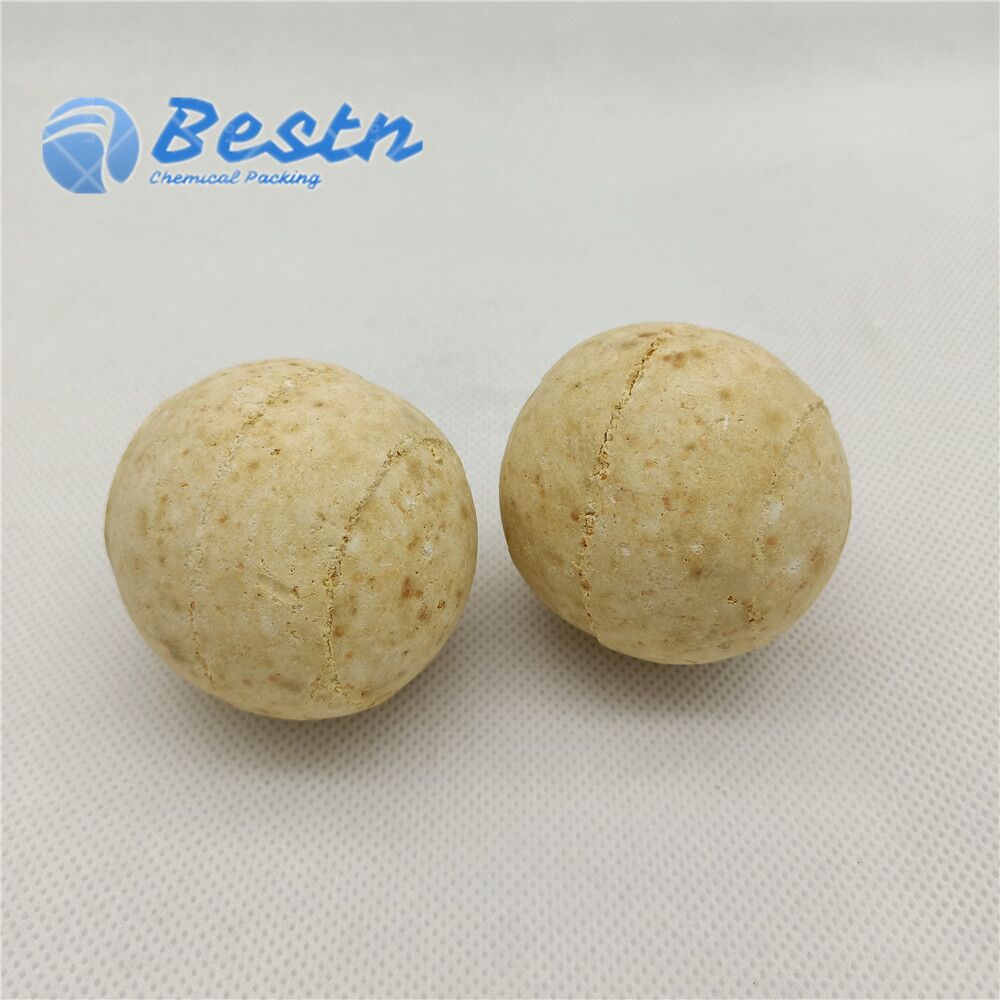

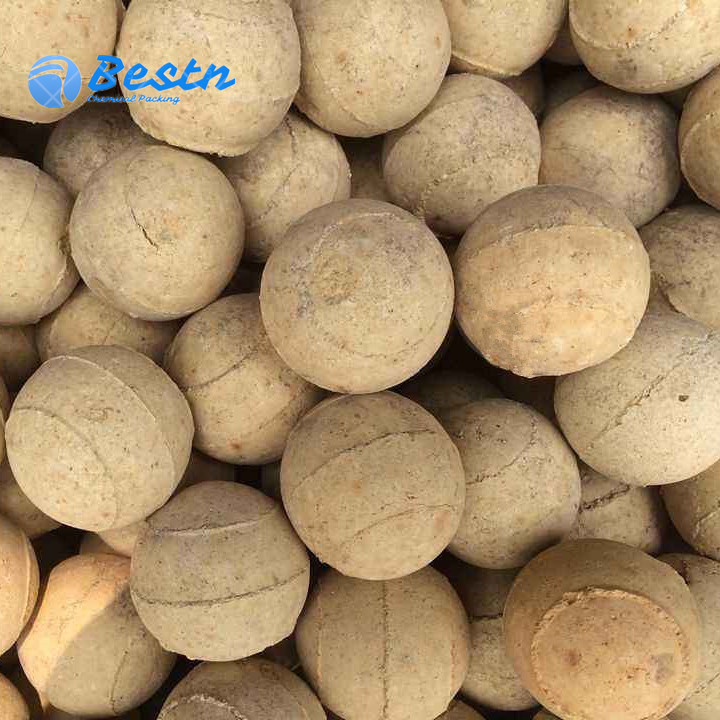

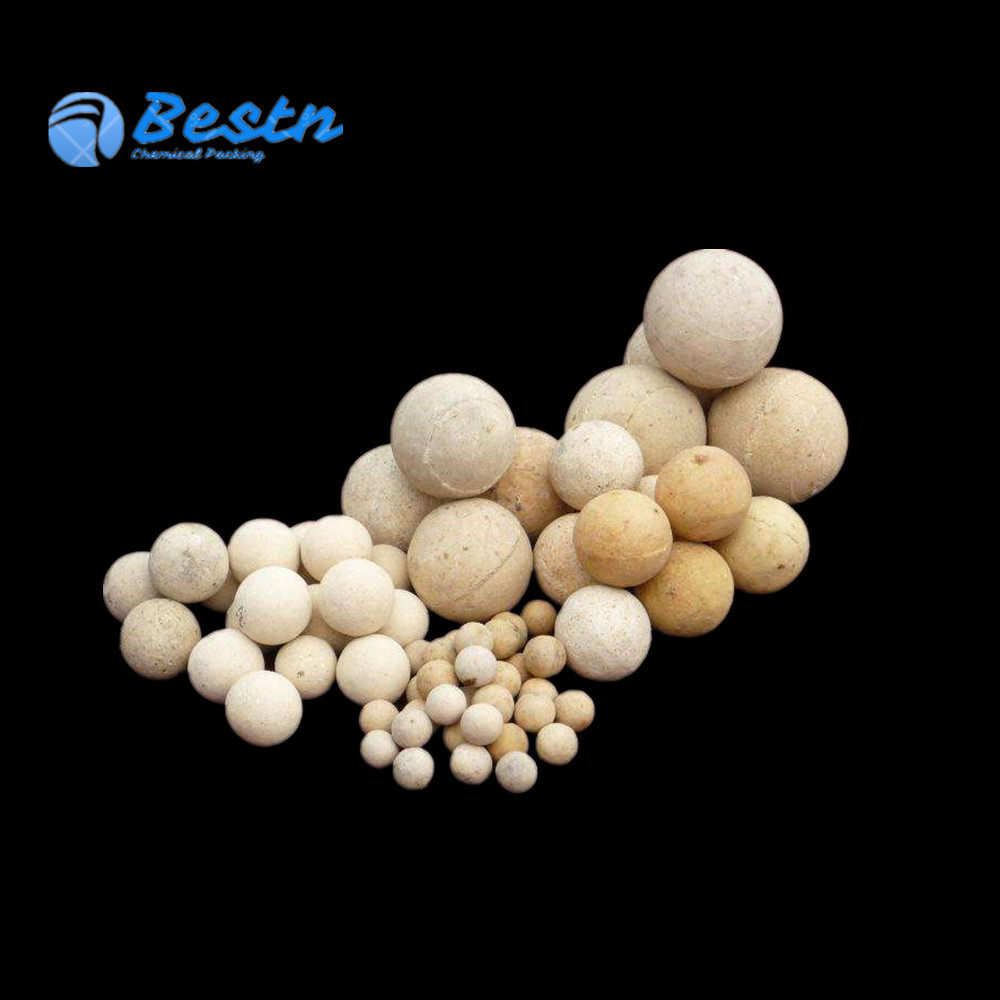

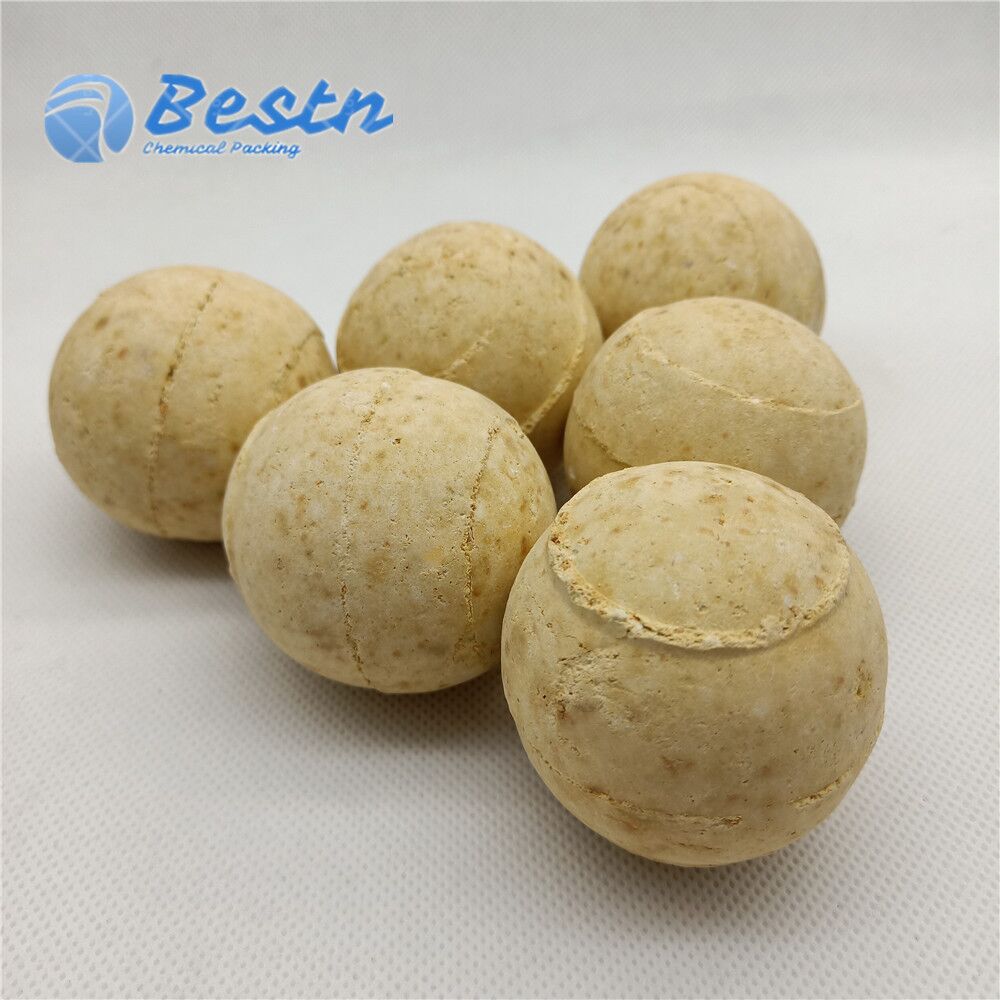

Refractory ceramic balls
Introduction:
The main materials of refractory ball are industrial alumina and fire-proof
kaolin, it is made by scientific formula,molding and high temperature calcination. Its maximum
refractoriness can reach 1900℃.
Application:
Refractory balls include ordinary refractory ball and high alumina refractory
ball. The ordinary refractory ball is suitable for converter and shift converter of sulfuric acid
and fertilizer industry. High alumina refractory ball is suitable for the hot-blast furnace, heating shift
converter and other equipment of urea and steel industry.
|
Specification for Refractory ceramic balls |
||||
|
Item |
High alumina |
Low creep |
Mullite |
Corundum |
|
Size(mm) |
40-80 |
40-80 |
40-80 |
40-80 |
|
AL2O3(%) |
65 |
70 |
75 |
95 |
|
Refractoriness under load(°C) |
1450 |
1460 |
1530 |
1650 |
|
Apparent Porosity(%) |
25 |
23 |
22 |
18 |
|
Bulk Density(g/cm3) |
2.3 |
2.4 |
2.5 |
3.1 |
|
Cold crushing strength(Mpa) |
13 |
14 |
32 |
36 |
|
Thermal shock resistance (1100°Cwater cooling) cycle≥ |
15 |
10 |
20 |
7 |
|
Refractoriness(°C) |
1710 |
1750 |
1800 |
1800 |
