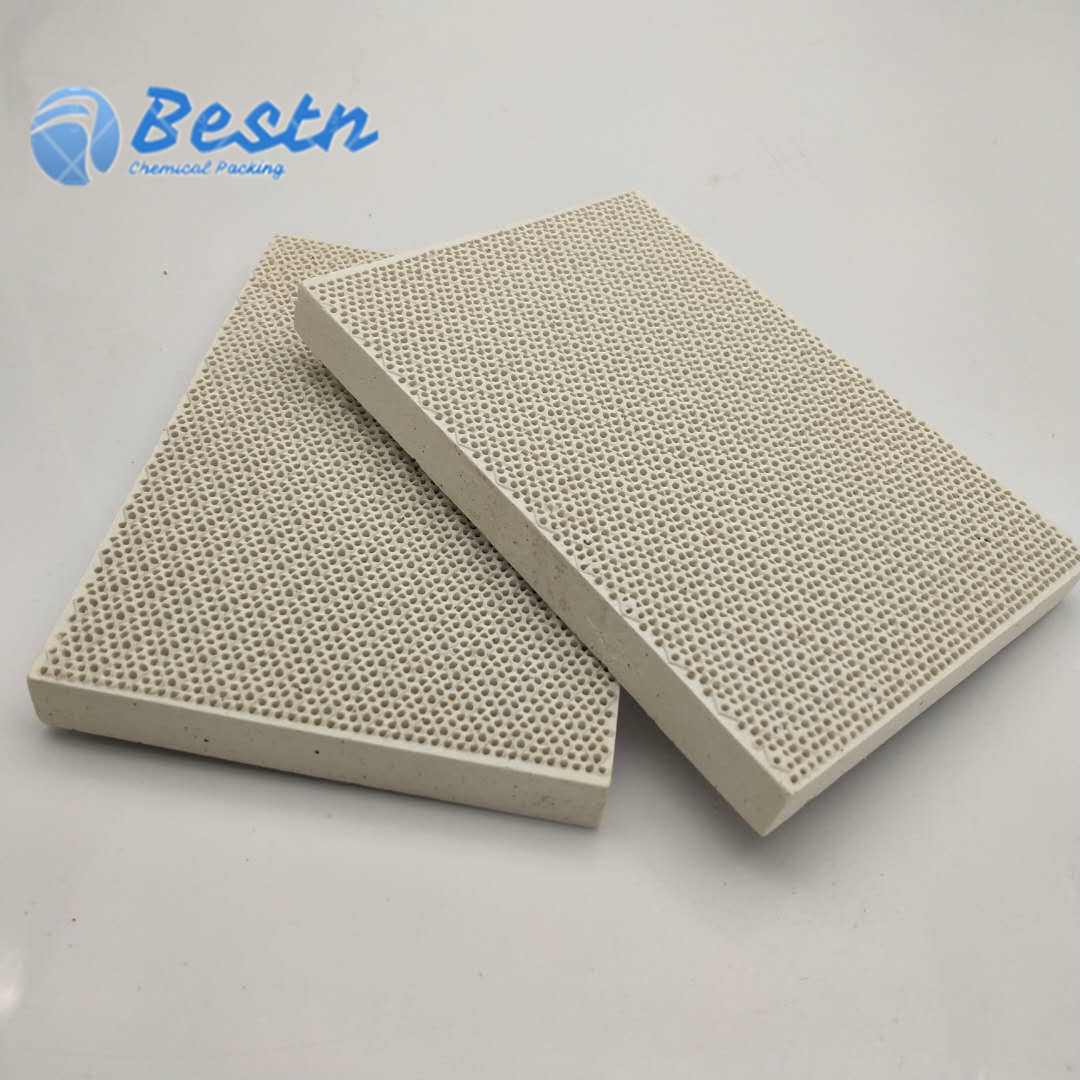

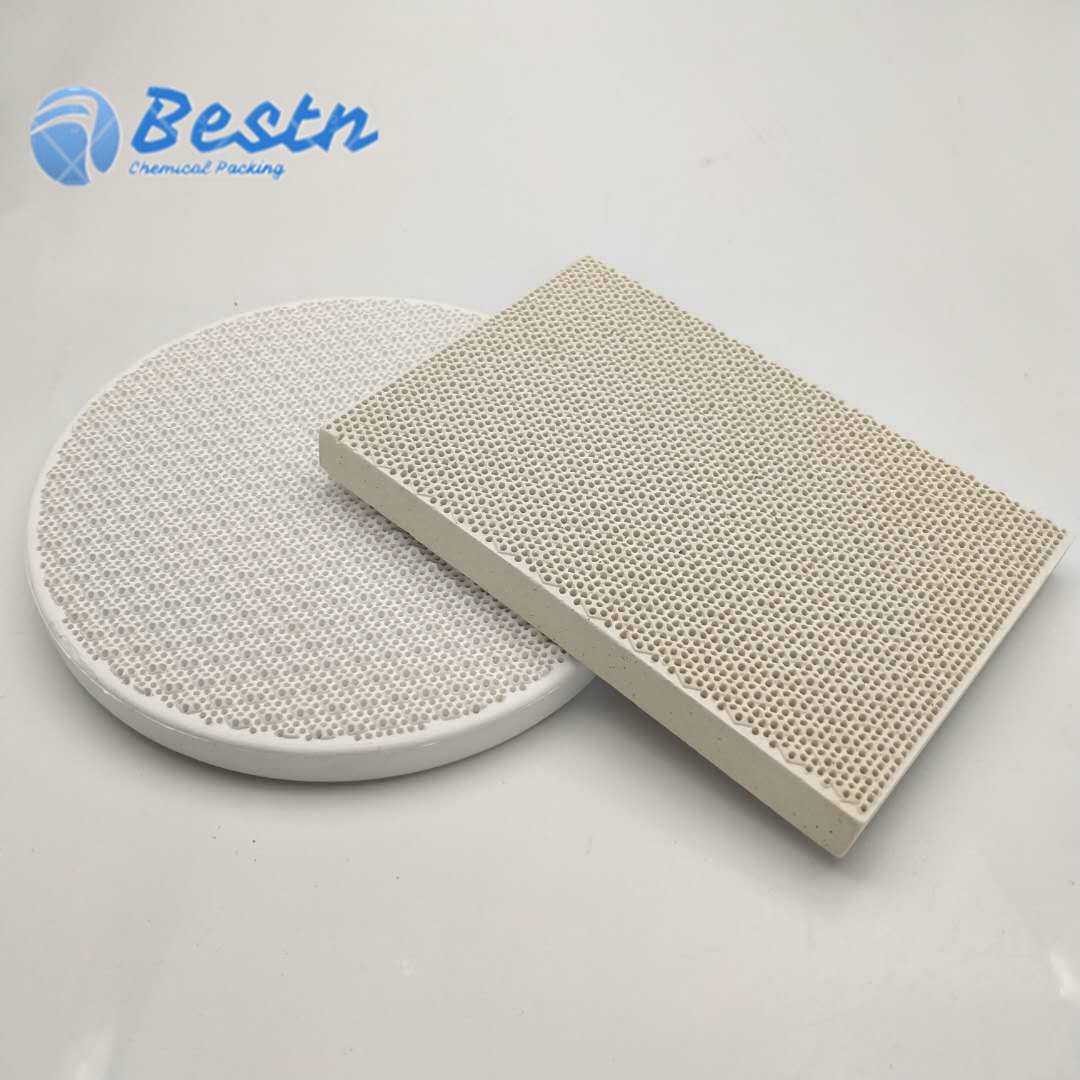

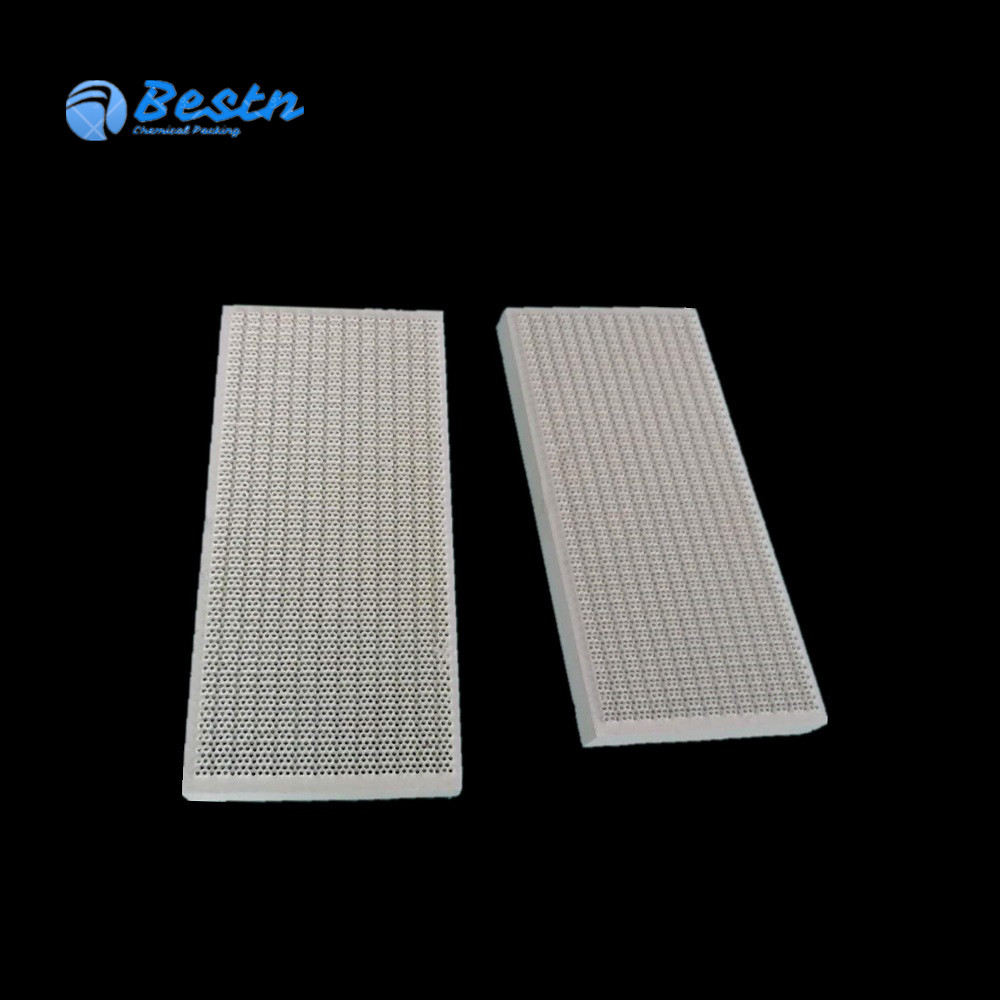

Infrared Honeycomb Ceramic Plate

Model Number:BS-IHCP

Place of Origin:Pingxiang,China

Keywords:BBQ cerammic plate , honeycomb ceramic plate

Advantages ● Outstanding Strength ● Uniform radiant burning ● Excellent thermal shock resistance ● Save up to 30~50% energy cost ● Burn without flame, high burning efficiency, low noise ● Reduce the harmful gas such as CO, NOx, etc more than 90%

INQUIRE NOW Contact us 86 (0) 799 6699600 / 0086 15179934828 info@bestpacking.cn
jenny@towerpacking.cn

Applications

Barbecues

Gyro Cookers

Broilers

Pizza Ovens

Convection Ovens

Pressure Fryers

Deep Fat Fryers

Process

Evaporators

Ranges

Gas Ovens

Rotisserie Ovens

Griddles

Space Heaters

Greenhouse CO2

Sear Cookers


Advantages
  ● Outstanding Strength
  ● Uniform radiant burning
  ● Excellent thermal shock resistance
  ● Save up to 30~50% energy cost
  ● Burn without flame, high burning efficiency, low noise
  ● Reduce the harmful gas such as CO, NOx, etc more than 90%


Performance index

Item

Index

Specifications

Materials

Cordierite







We can provide you

the product by you desire.



Water Absorption

50.4%

Open Porosity

61%

Specific Gravity

0.6-0.9g/cm3

Thermal Expansion Coefficient

1.5-3(×10-6K-1)

Temperature Softening

>1280℃

Cooking Surface Temperature

1000-1200℃

CO Release

≤0.006%

NOx Release

≤5ppm


Dimension

Dimension (mm)

Shape

Square (Length * Width)

<200×140





Round (Diameter)

50-200



Thickness

11-15



Hole Diameter

1.1-1.8



Holes Interval

2-2.1
