Metal Structured Packing

Model Number:BS-MSP

Place of Origin:Pingxiang,China

Keywords:Metal Perforated Plate Corrugated Packing,Metal Wire Gauze Packing, metal structured packing

With low resistance, uniform distribution of gas-liquid, high efficiency,big flux,not obvious enlarging effect.It is applied to negative pressure, normal pressure and pressurization operation.

INQUIRE NOW Contact us 86 (0) 799 6699600 / 0086 15179934828 info@bestpacking.cn
jenny@towerpacking.cn

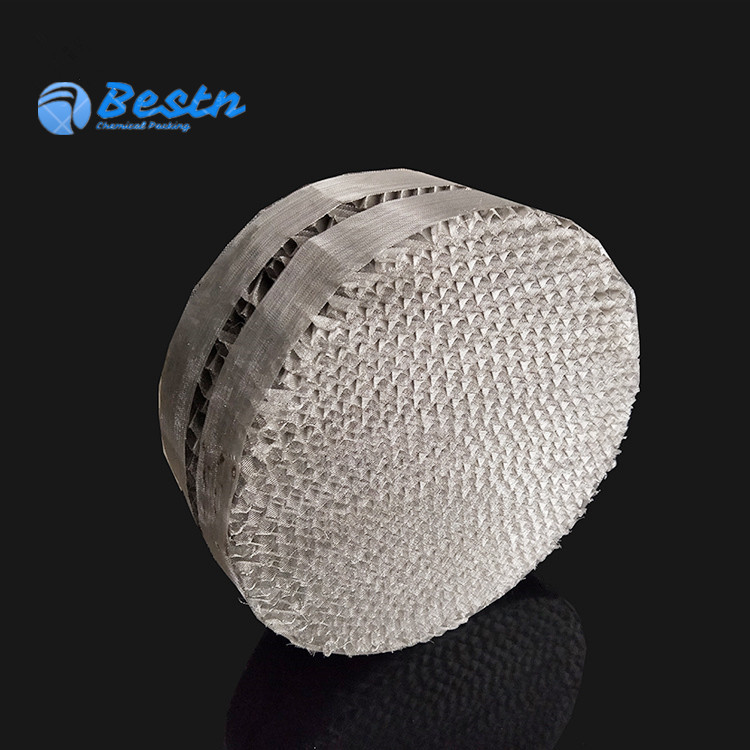

Metal structured packing mainly include the wire gauze corrugated packing and perforated plate corrugated packing.With low resistance, uniform distribution of gas-liquid, high efficiency,big flux,not obvious enlarging effect.It is applied to negative pressure, normal pressure and pressurization operation.


Application:
1.Mass transfer of temperaure sensitive chemical products.
2.Negative pressure,pressurization operation.
3.Batch and continuous distillation.

4.Waste gas purification


 Technical Data



Type

Model

Wave Crest Height

Theo. Plate

Surface area

Void Volume

Pressure Drop

mm

m-1

m2/m3

%

Mpa/m

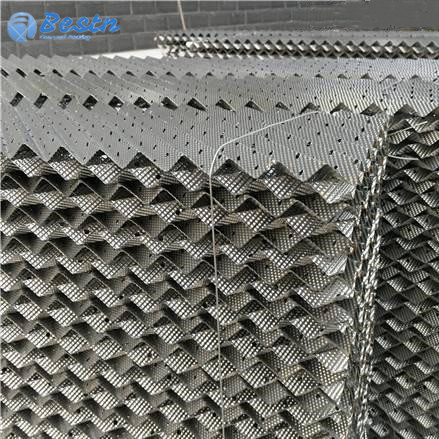

Perforated plate corrugated packing

SM125Y

24

1-1.2

125

98.5

1.5*10-4

SM250Y

12

2-2.3

250

97

1.52*10-4

SM350Y

8

3.5-4

350

95

1.5*10-4

SM450Y

6.5

4-4.5

450

93

1.8*10-4

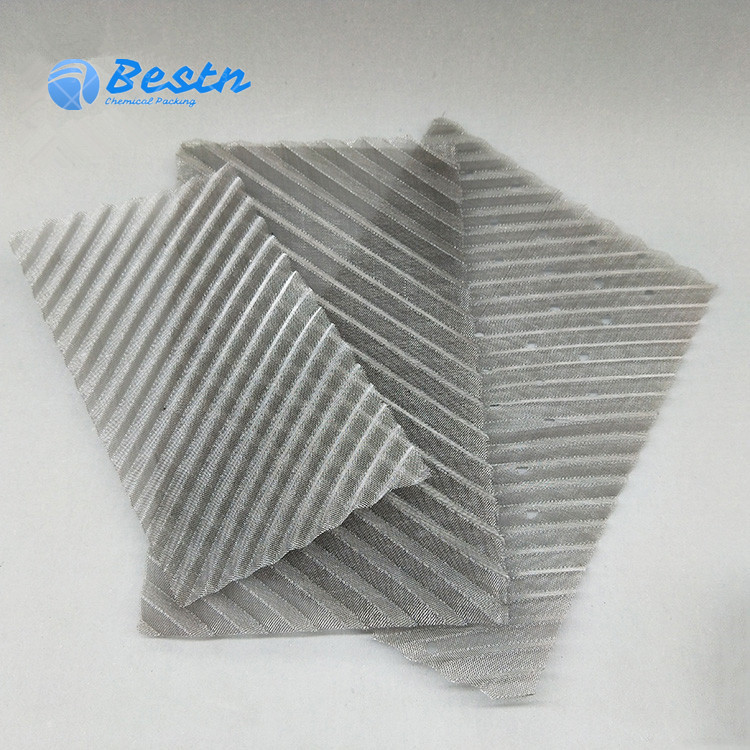

Wire gauze corrugated packing

250Y

12

2.5-3.0

250

97

1.05*10-4

BX500

6.3

4.5-5.5

500

95

3.0*10-4

CY700

4.3

‘8-10

700

87

4.5-6.5*10-4

1000Y

3.1

’12-14

1000

75

8.2-10*10-4
