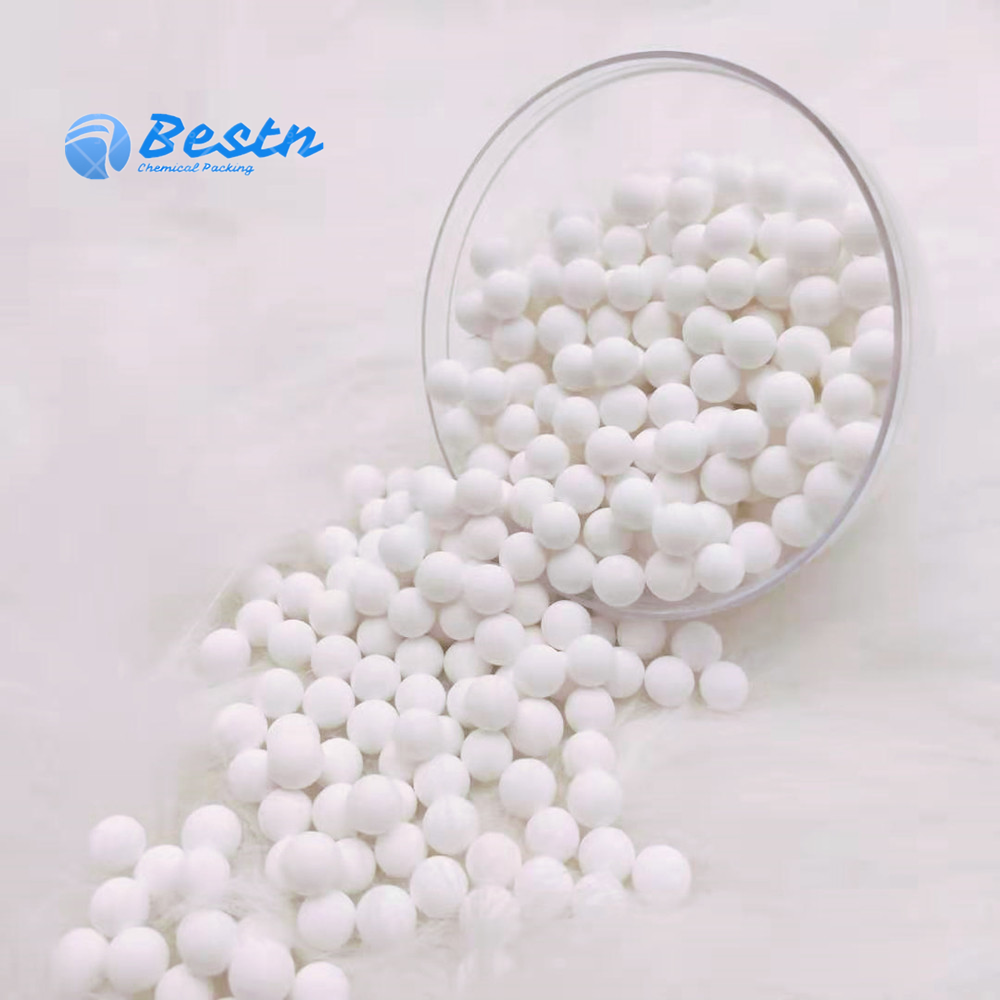

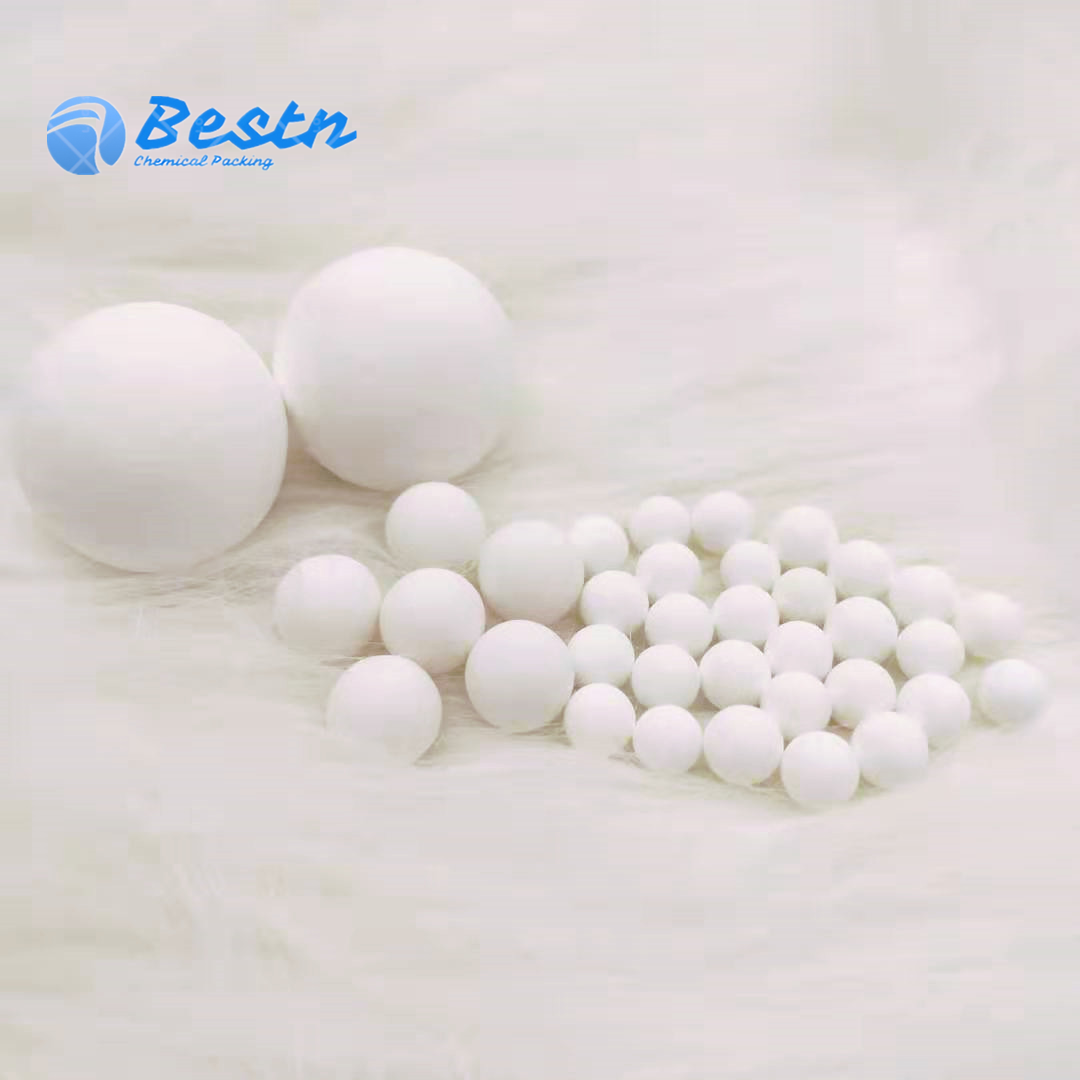

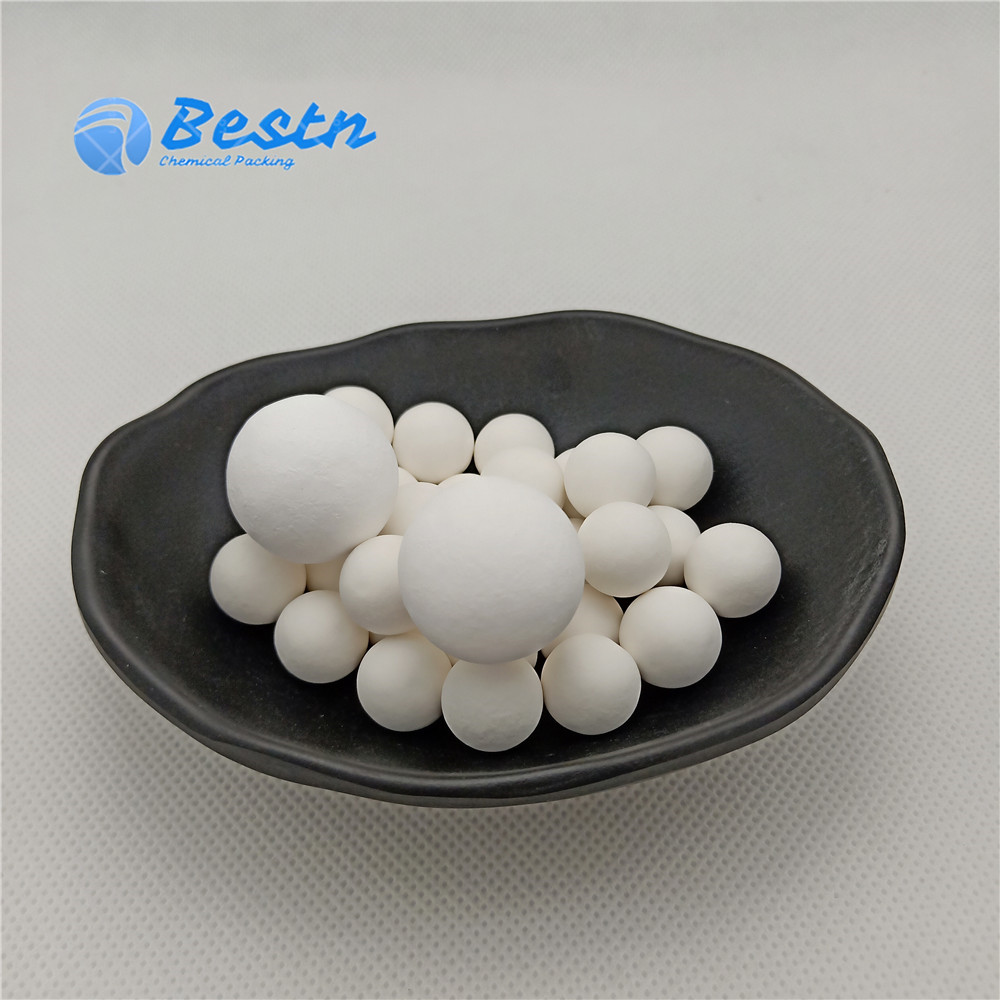

Medium Alumina Ceramic Ball
Model Number: BS-MACB
Place of Origin:Pingxiang,china
Keywords:Medium Alumina Ceramic Ball,Mid -Alumina ceramic balls, 72% alumina ball
Mid -Alumina ceramic balls are widely used in many fields, including petroleum, chemical engineering, fertilizer production, natural gas and environmental protection.
INQUIRE NOW
Contact us
86 (0) 799 6699600 / 0086 15179934828
jenny@bestpacking.cn
Mid -Alumina ceramic balls are widely used in many fields, including petroleum, chemical engineering, fertilizer production, natural gas and environmental protection. They are used as covering and supporting materials of catalysts in reaction vessels and as packing in towers. They have stable chemical features and a low rate of water absorption, resist high temperatures and high pressure, and also resist the corrosion of acid, alkali and some other organic solvents. They can stand the change in temperature during the manufacturing process. The main role of inert ceramic balls is to increase the distribution spots of gas or liquid, and to support and protect the activating catalyst with low strength.
Al2O3+SiO2 |
Al2O3 |
Fe2O3 |
MgO |
K2O+Na2O +CaO |
Others |
> 93% |
>50% |
<1% |
<0.5% |
<4% |
<1% |
Item |
Value |
Water absorption (%) |
<2 |
Bulk density (g/cm3) |
1.4-1.5 |
Specific gravity (g/cm3) |
2.4-2.6 |
Free volume (%) |
40 |
Operation temp.(max) (℃) |
1200 |
Moh's hardness (scale) |
>7 |
Acid resistance (%) |
>99.6 |
Alkali resistance (%) |
>85 |
Size |
Crush strength |
|
|
Kg/particle |
KN/particle |
1/8''(3mm) |
>560 |
>0.56 |
3/8''(10mm) |
>1500 |
>1.5 |
1/2''(13mm) |
>1650 |
>1.65 |
3/4''(19mm) |
>2890 |
>2.89 |
1''(25mm) |
>4890 |
>4.89 |
