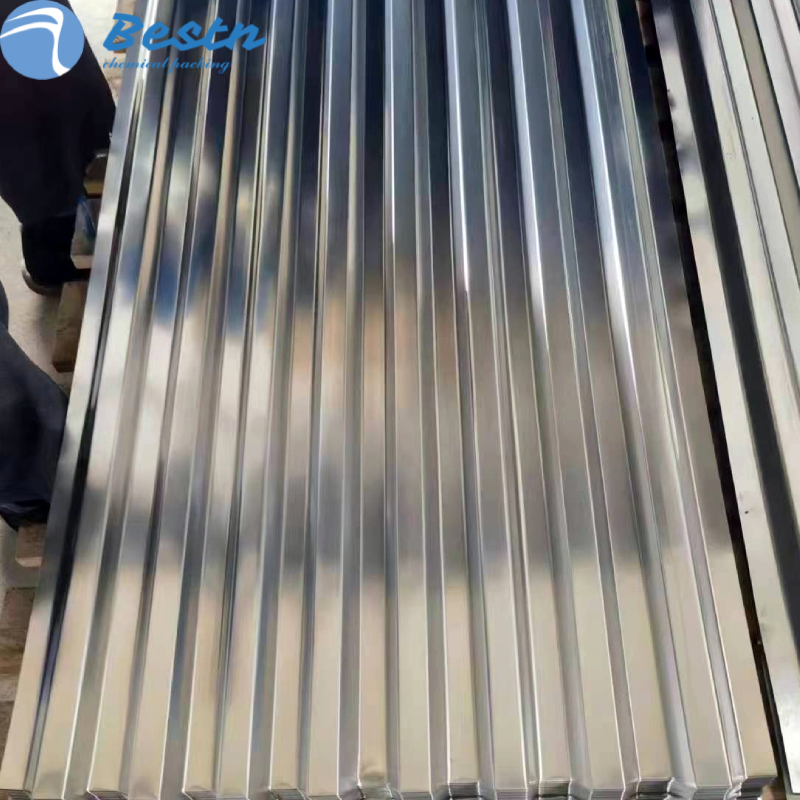

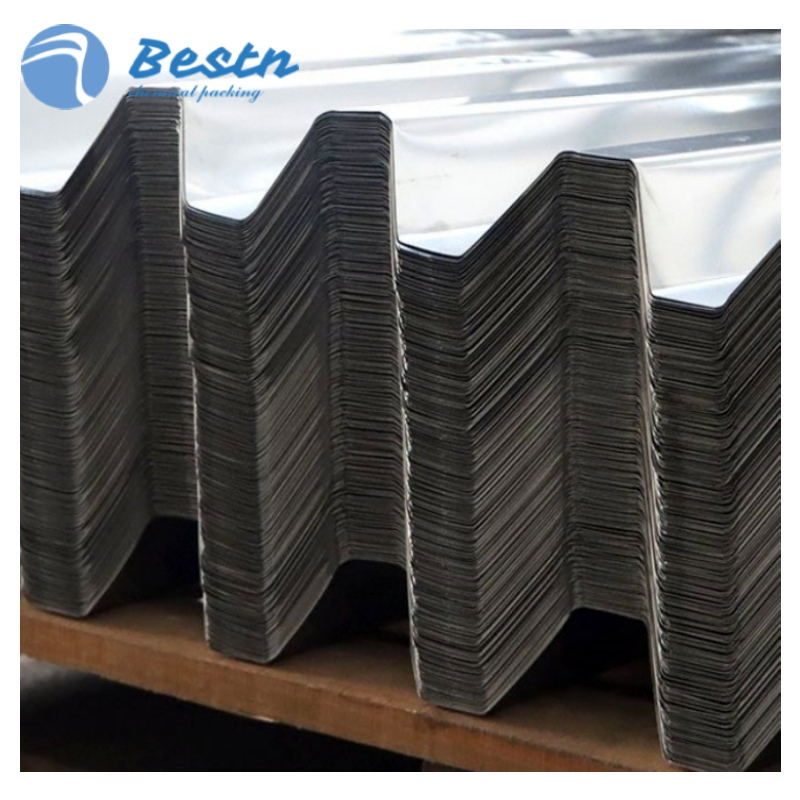

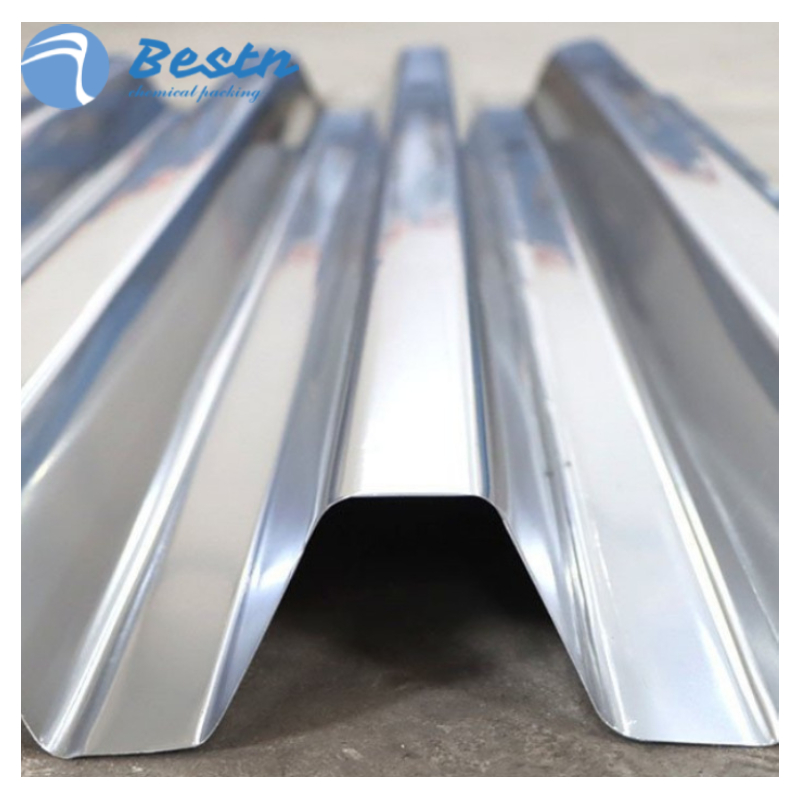

Stainless steel Lamella tube settler

Model Number:BS-SSLTS

Place of Origin:Pingxiang,China

Keywords:stainless steel lamella tube settler , metal tube settler, metal packing for Sendimentation Tank

Metal tube settler media has the advantages of wide application range, high treatment effect and small occupation area. It is suitable for sand removal at the inlet, general industrial and domestic water supply precipitation, sewage precipitation, oil separation and tailings concentration, etc.

INQUIRE NOW Contact us 86 (0) 799 6699600 / 0086 15179934828 info@bestpacking.cn
jenny@towerpacking.cn

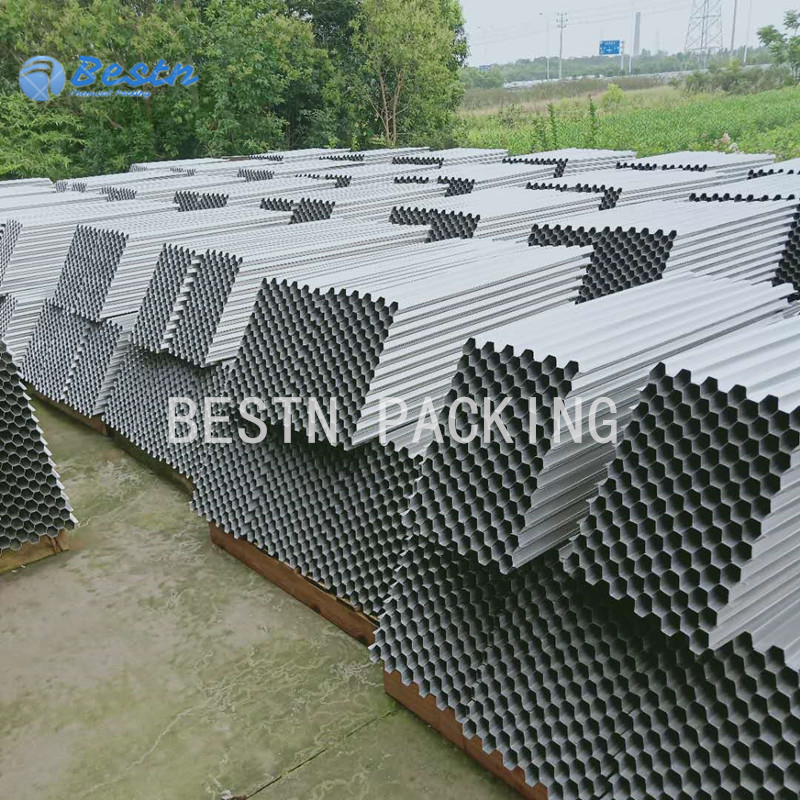

Stainless steel honeycomb tube settler media also named metal inclined plate packing, hexagonal honeycomb packing,it is mainly used for processing the original oil and gas ,waste water and separation of oil water , environmental protection equipment and crude oil processing coalescer, three-phase separator or two phase separator, crude oil settling tank, slug flow mist precipitator, first class production separator as the filler oil-water separation and precipitation and desanding role. Metal tube settler media has the advantages of wide application range, high treatment effect and small occupation area. It is suitable for sand removal at the inlet, general industrial and domestic water supply precipitationsewage precipitationoil separation and tailings concentration, etc.



Metal tube settler media application principle is base on low layer sedimentl ayer settling theory as the foundation, using the porous shape inclined tube sedimentation environment, make the water containing suspended particles in smaller and smooth inclined tube aperture quickly get precipitation, greatly increase the processing structure of water production rate, reducing area and construction investment, so this technology has been widely used. This product have theadvantage of Anti-corrosion, large surface area, anti-aging, anti-pressure, accurate size, compact structure, safe and non-toxic, smooth wall surface, easy to wash, easy to support, easy to assemble on site, greatly reducing transportation burden.


Feature:

1. large watted perimeter, small hydraulic radius.

2. good laminar flow, particles falling free from flocculent flow interference.
3. as long as inclined tube is 1meter, effective loadis designed by 3-5 tons/m 2 .VO in 2.5-3.0 mm/sec range and best water quality.
4, adopting honeycomb inclined pipe in water inlet with tube 2.0 to 3.0 meters ensure safe operation processing in high turbidity of 50-100 kg/m3 clay sand content.
5, processing power of inclined pipe sedimentation tank is horizontal-flow settling tank 3-5 times, accelerating water clarification and pulse water clarification of 2-3 times.


Tech data:


Sheet Thickness

0.2,0.3,0.4,0.5mm,etc

Size

1000x340mm or per customer request

Stacking Angle

60º,70º

Horizontal Water flow

2.5-3mm/s

Effect Load

3~5 Ton/m2·h

Standing time 

4.5~6 min



Spec:



Diameter (mm)

Surface Area(m2/m3)

Porosity

Weight(kg/m3

Base on SS304 0.4mmT

1

40

148

96.8

215

2

50

118

97.4

203



Available tube diameter:35mm, 40mm,50mm,80mm. Different sheet thickness and material .
