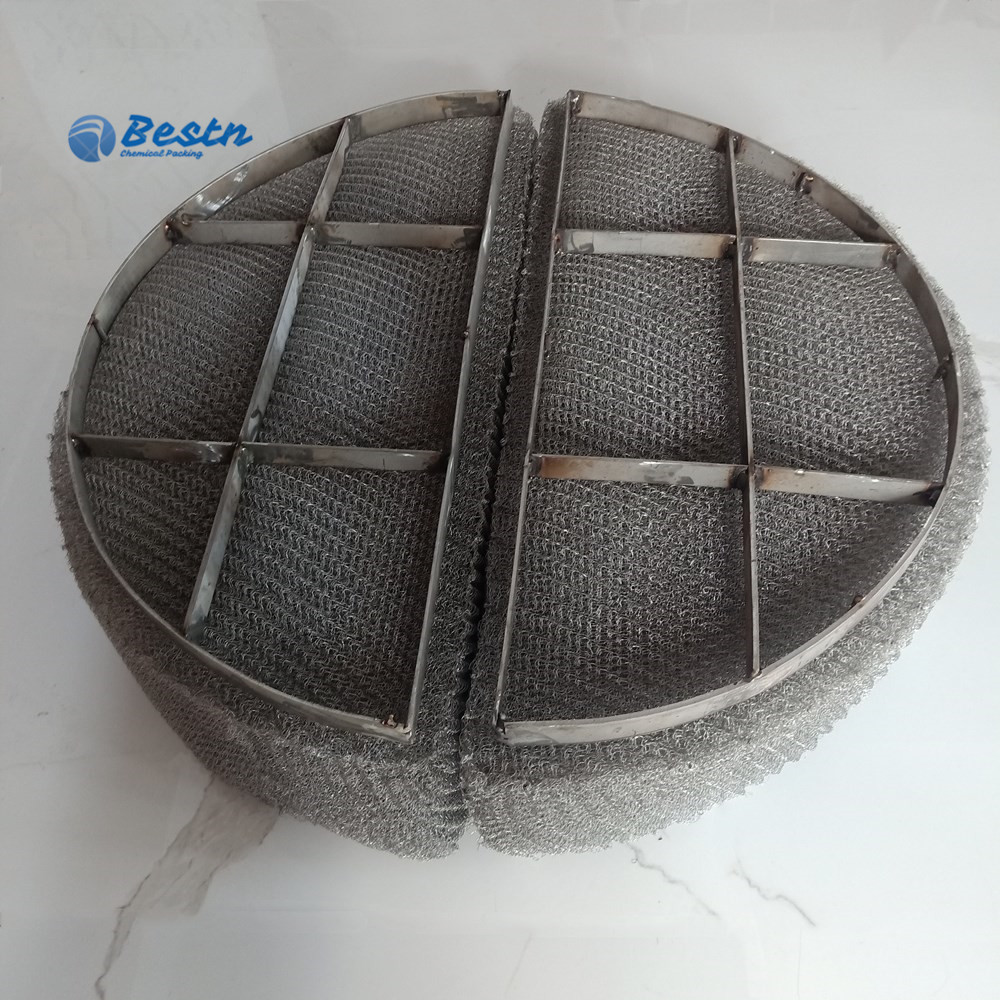

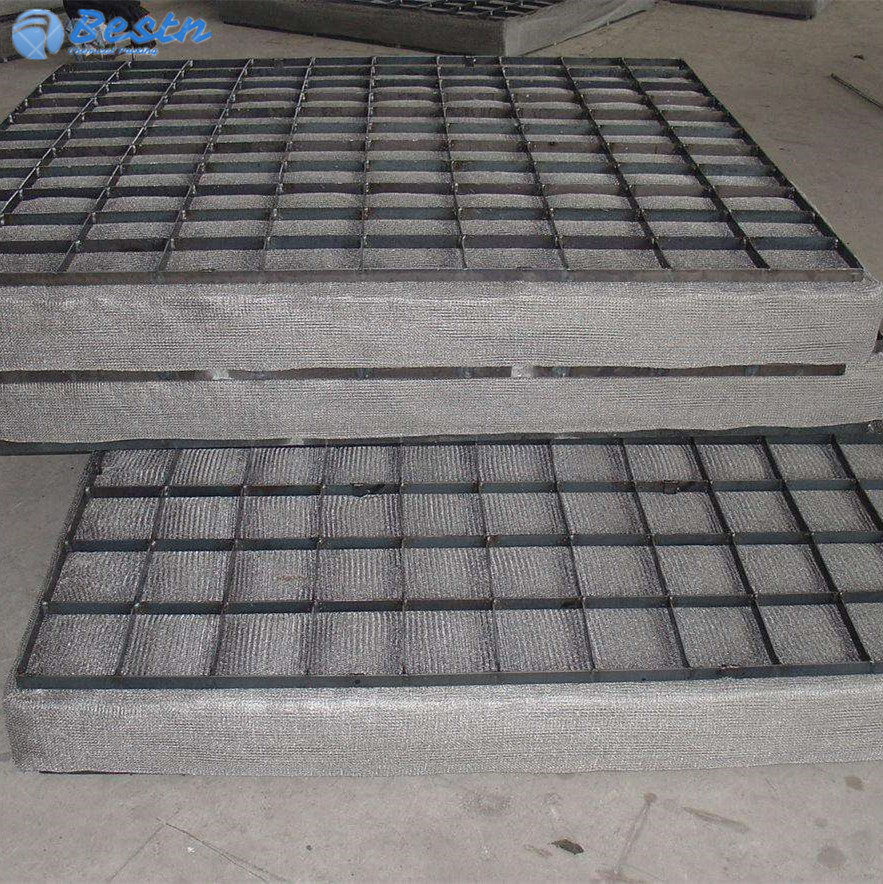

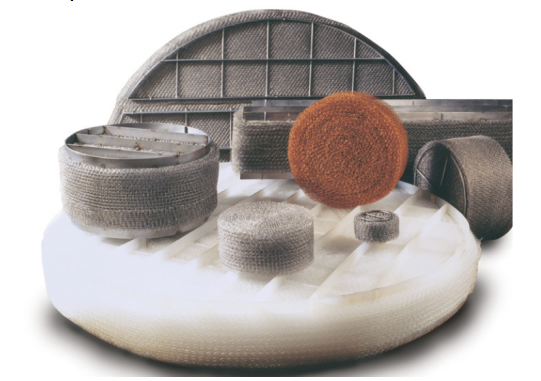

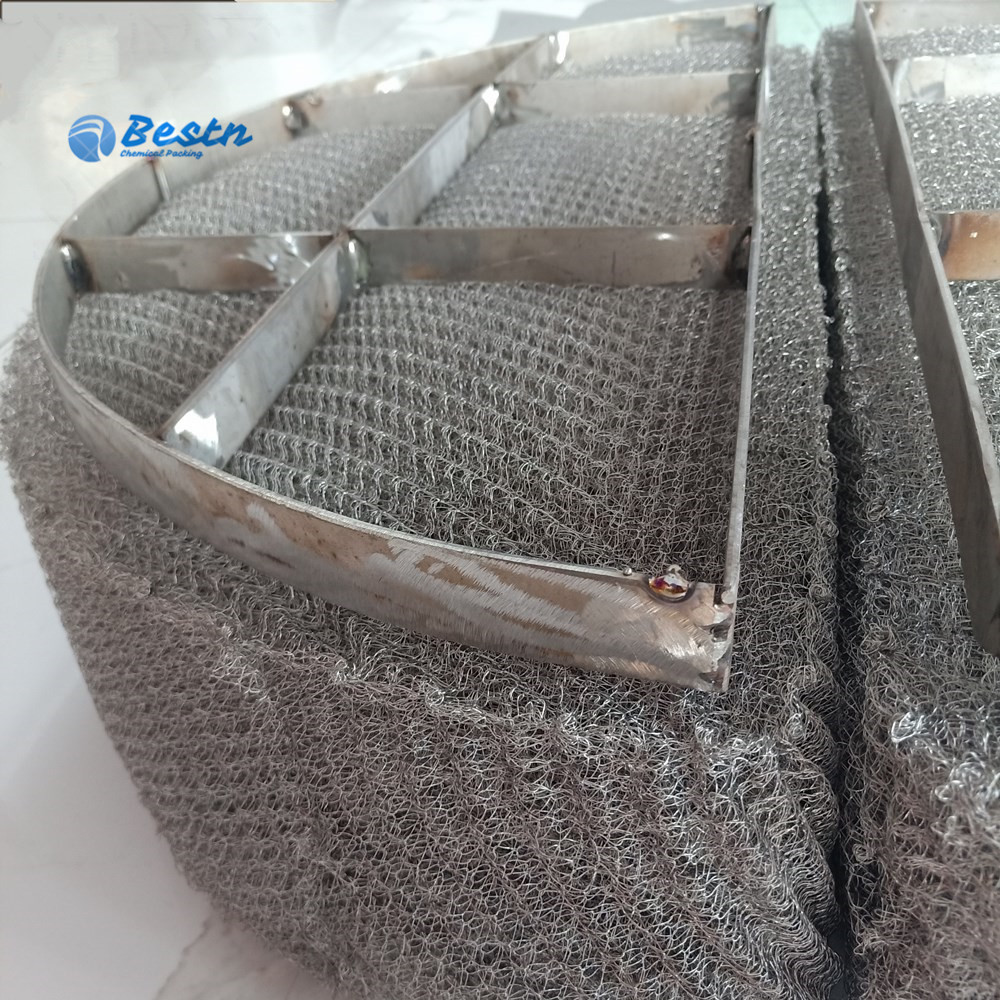

Wire mesh Demister Pad Mist Eliminators

Model Number:BS-WMD

Place of Origin:Pingxiang,China

Keywords:Wire mesh Demister, stainless steel demister,Mist Eliminators

Demister pad, also called mist pad, wire mesh demister, mesh mist eliminator, catching mist, mist eliminator. Demister Pads are woven with multi layer knitted mesh in different densities. It is used in gas entrained mist separation column to guarantee the filtering efficiency.

INQUIRE NOW Contact us 86 (0) 799 6699600 / 0086 15179934828 info@bestpacking.cn
jenny@towerpacking.cn

Wire mesh demister,also known as a wire mesh mist eliminator, is a kind of vapor liquid separating device. It is widely used in the chemical, petroleum, medical, light, metallurgy and environmental protection industries.It is most often used to separate liquid drop with diameter of more than 3-5 μm in the separation tower.




Using:Chemical,petroleum,sulfate,medicine,light industry, metallurgy, machine, building, construction, aviation, shipping and environment protection.


Material:

Wire Mesh Demister Material : Stainless Steel 304L, 316L,  Monel, Nickle, ect.

Wire Diameter: 0.08--0.50mm, But 0.2mm-0.25mm are the most common wire diameter specifications.

Width: 40mm, 80mm, 150mm, 200mm, 300mm, 400, 500mm, 600mm, 800mm, 1000mm, 1200mm, 1400mm, etc. Less than 1000mm width are the most common width and are easy to make. Also available upon customers' request.



Specification:

Item

Bulk Density

Kg/m3

Surface Area

m2/m3

Voidage

ε

BS-80

80

155

98.9

BS-120

120

210

98.5

BS-144

144

275

98.2

BS-160

160

310

98.0

BS-300

300

575

96.2

Above are the standard parameters, also we can design according to the customer requirement.



Items

Wire Diameter mm

width tolerance

Bulk Density

Surface Area

Voidage

The layers wire mesh of every 100 mm thick mat



Flat Wire

Round wire

mm

Kg/m3

m2/m3

ε



Standard type

0.1*0.4

0.23

+10
-0

150

475

320

0.981

25

Efficient type

0.1*0.4

0.19

+10
-0

182

626

484

0.977

32

High-penetration type

0.1*0.4

0.23

+10
-0

98

313

217

0.9875

20




Applications:

Crubbers, absorbers

Distillation and rectification columns

Evaporation and pressure reducing plants knock-out drums

Vacuum and compressed air systems » Sea water desalination plants

Oil and emulsion mist separators
