Multi-layer Honeycomb Ceramic for RTO

Model Number：BS-MLM

Place of Origin：Pingxiang,China.

Keywords：Multi-layer Honeycomb Ceramic, honeycomb ceramic , RTO multi layer ceramic , Multi-layer ceramic media

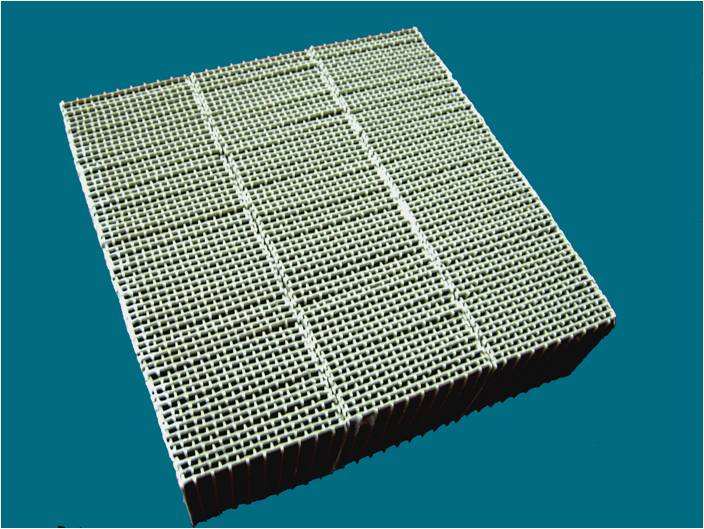

Multi-layer ceramic media(MLM) is a type of structured packing which designed for VOC emission reduction equipment.

INQUIRE NOW Contact us 86 (0) 799 6699600 / 0086 15179934828 jenny@bestpacking.cn

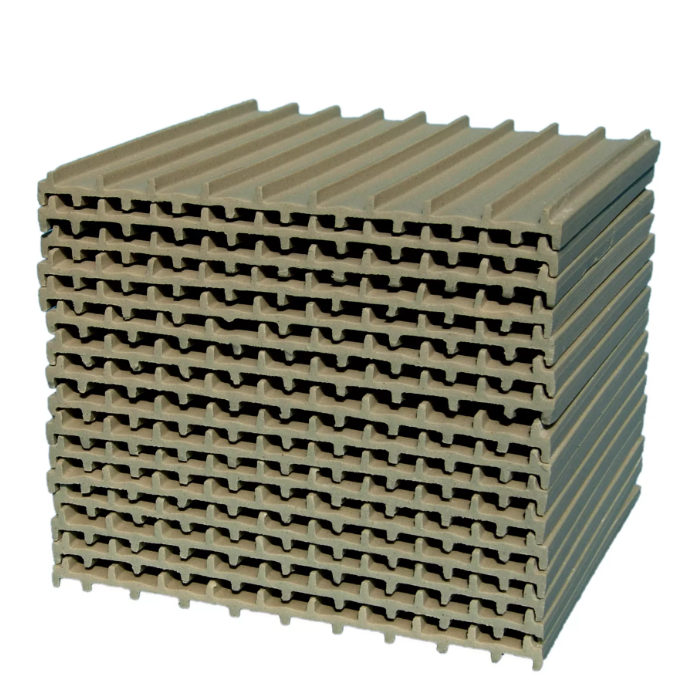

Multi-layer ceramic media(MLM) is a type of structured packing which designed for VOC emission reduction equipment——Regenerative Thermal Oxidation (RTO). MLM is made of ceramic plate with prong. MLM obtained US patent for invention and Chinese patent for utility models because of its special structure design.

The product has been exported to Europe, the United States, Southeast Asia,more than 30 countries and is the first choice of heat exchange media for RTO system which used for the VOCs emission of chemical, metallurgy, painting and so on.

The advantage of MLM as following:

High specific surface area
High specific heat capacity
Excellent heat conductivity

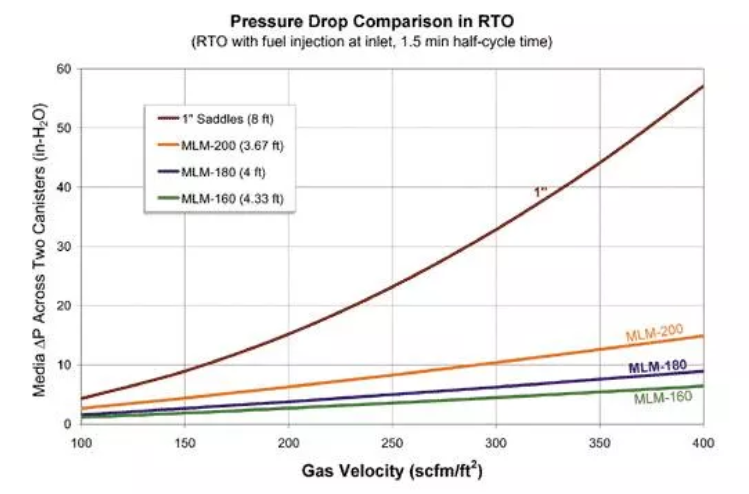

Low pressure drop
Plugging resistent
Low price with high performance

Specification:

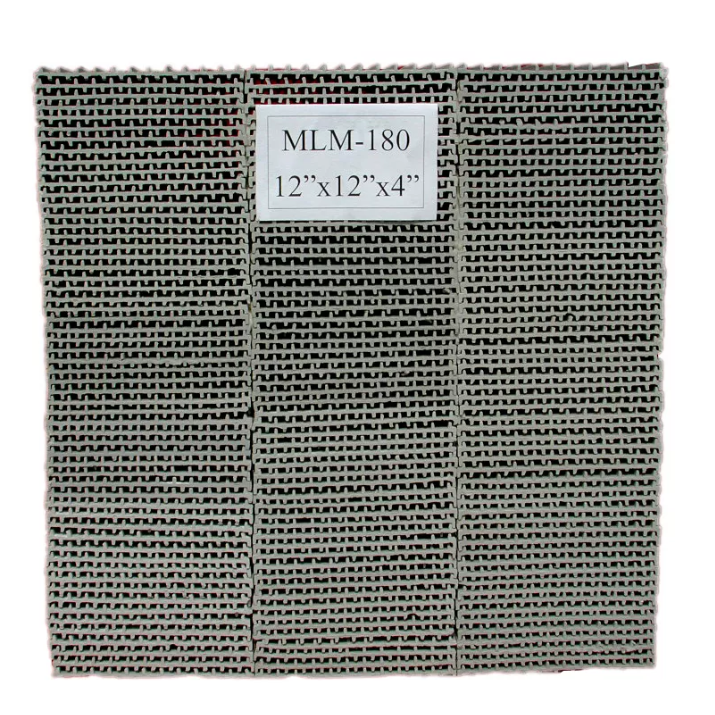

Item	Unit	MLM-125	MLM-160	MLM-180	MLM-200	MLM-S Type
Dimension	mm	305x305x101	305x305x101	305x305x101	305x305x101	305x305x101
Surface area	m2/m3-ft2/ft3	410/125	525/160	590/180	655/200	722/220
Density	g/cm3	2.25-2.35	2.25-2.35	2.25-2.35	2.25-2.35	2.25-2.35
Weight	Kg/m3	703	873	981	1096	1052
Acid Resistance	%	≤4	≤4	≤4	≤4	≤4
Water Absorption	%	<0.5	<0.5	<0.5	<0.5	<0.5
Free Space	%	69	61	56	51	54
Max Working Temperature	℃	1180	1180	1180	1180	1180
Heat Capacity	(kJ/m2-°C)	670	810	940	1070	1070
Crushing Strength	lb/ft2	4210	5380	6120	7340	7340
Feature	High heat storage performance
	High heat transfer efficiency
	Higher specific surface area
	Low pressure drop
	Very low operating costs

Application:

Regular honeycomb ceramic fillers designed for regenerative heat oxidizer and regenerative heat exchanger for organic waste gas treatment equipment.
