Ceramic Structured Packing

Model Number: BS-CSP

Place of Origin:Pingxiang,China

Keywords:Ceramic Structured Packing, Ceramic corrugated packing,ceramic light packing,ceramic packing

Applications ● Rectifying organic halide. ● Rectifying and absorbing some corrosive mixtures, which are definitely regulated in pressure drop and theoretic plate number. ● Applied in some towers that contain a large quantity of natural media used to absorb nitric acid and concentrated sulfuric acid, as well as for purifying the air in chemical plants. ● Operating in vacuum conditions at a bottom absolute pressure of 100pa. ● Used in heat exchanger and demisting, or as a catalyst carrier.

INQUIRE NOW Contact us 86 (0) 799 6699600 / 0086 15179934828 info@bestpacking.cn
jenny@towerpacking.cn

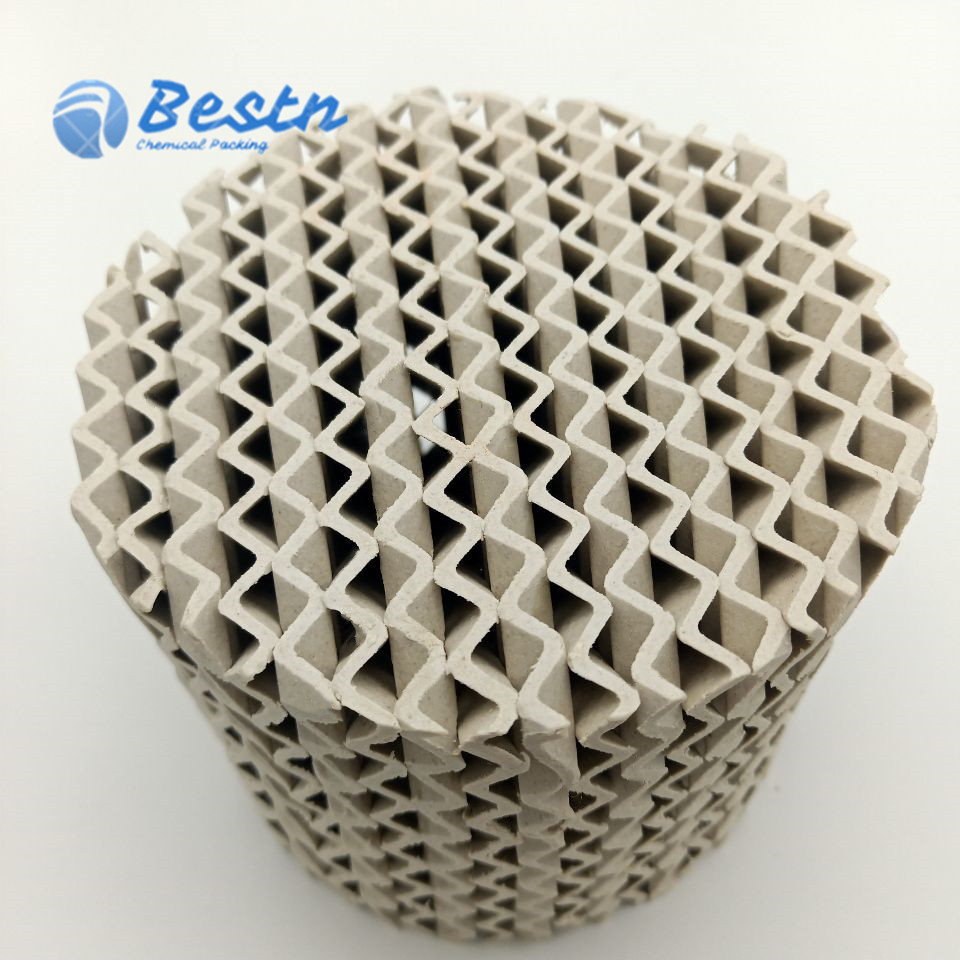

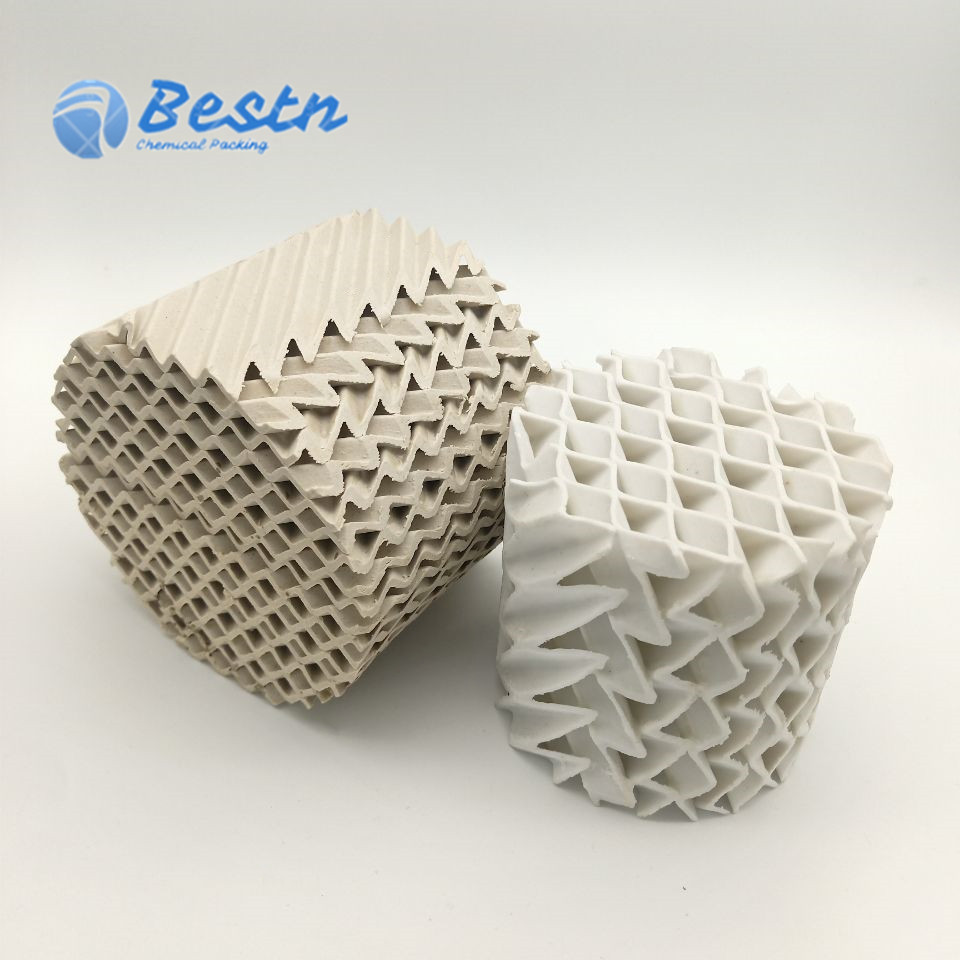

Ceramic Structured Packing consists of many packing units of similar geometric design. Corrugated sheets placed in parallel form cylindrical units called corrugated tower packing. These are a form of highly efficient packing with separating efficiency several times higher than that of loose packing. They have the quality of low-pressure drop, increased operating elasticity, minimum amplifying effect, and maximum liquid treatment compared to loose tower packing.

Chemical Analysis

Composition

Value

SiO2

≥72%

Fe2O3

≤0.5%

CaO

≤1.0%

Al2O3

≥23%

MgO

≤1.0%

Other

2%



Physical Property

Index

Value

Specific gravity(g/cm3)

2.5

Water absorption (wt%)

≤0.5

Acid resistance (wt%)

≥99.5

Loss in burn (wt%)

≤5.0

Max. Operating Temp.(℃)

800

Crush strength (Mpa)

≥130

Moh’s Hardness(Scale)

≥7



Geometric Characteristic




Advantage
 ● High capacity. New tower design may reduce diameter, while renovate old towers may increase capacity significantly.
 ● High separation efficiency. Since it has much larger specific surface area compared to random packing.
 ● Low pressure drop, which leads to reduce energy consumption largely.
 ● Large flexibility, and scale effect is not obvious.
 ● Suitable for all tower diameters.
 ● Strong resistance to corrosion of acid and alkali, especially to H2S, naphthenic acid and Cl- .


Applications


● Rectifying organic halide.
 ● Rectifying and absorbing some corrosive mixtures, which are definitely regulated in pressure drop and theoretic plate number.
 ● Applied in some towers that contain a large quantity of natural media used to absorb nitric acid and concentrated sulfuric acid, as well as for purifying the air in chemical plants.
 ● Operating in vacuum conditions at a bottom absolute pressure of 100pa.
 ● Used in heat exchanger and demisting, or as a catalyst carrier.
