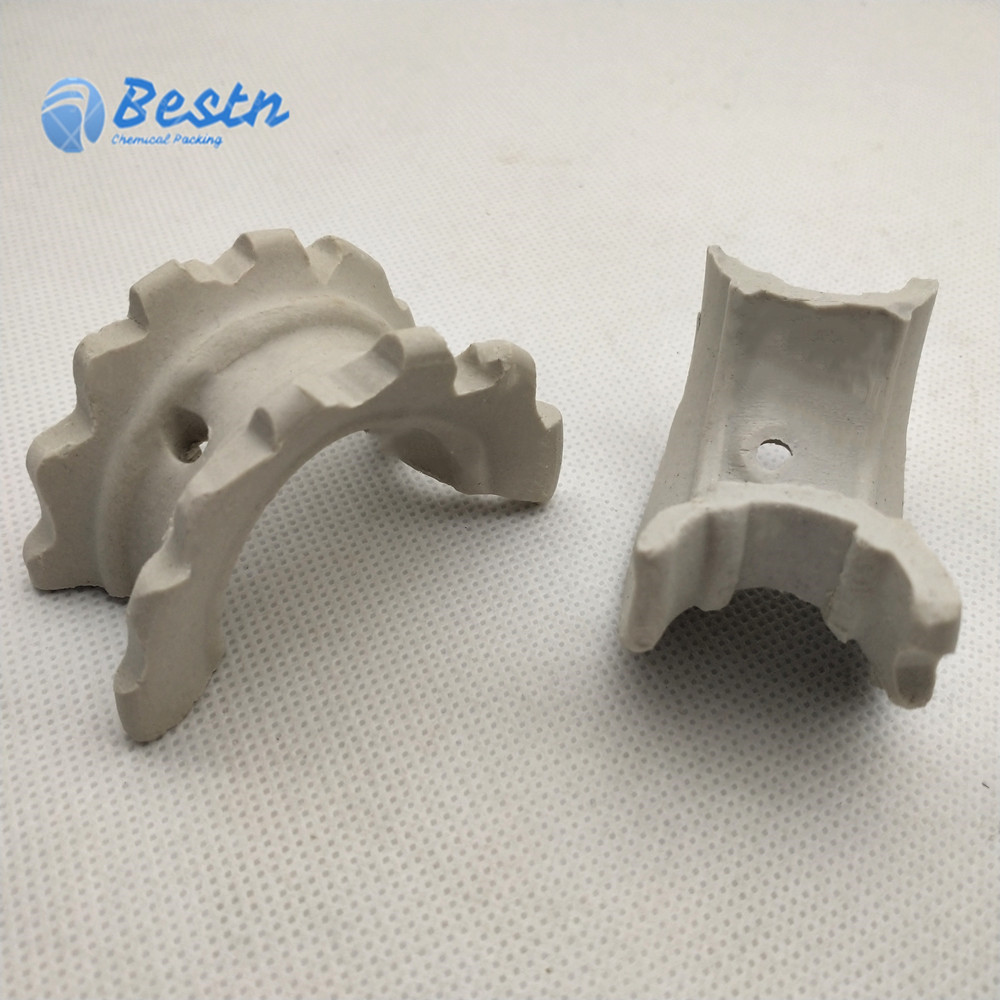

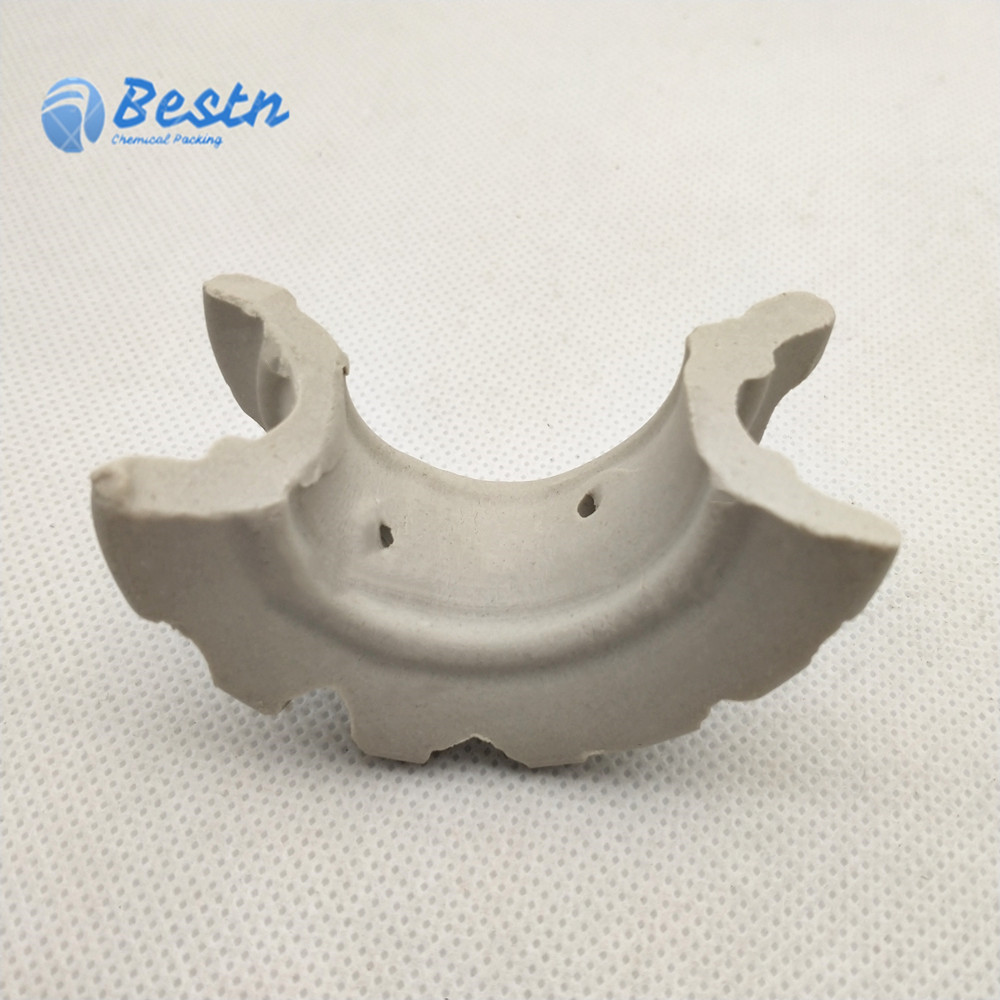

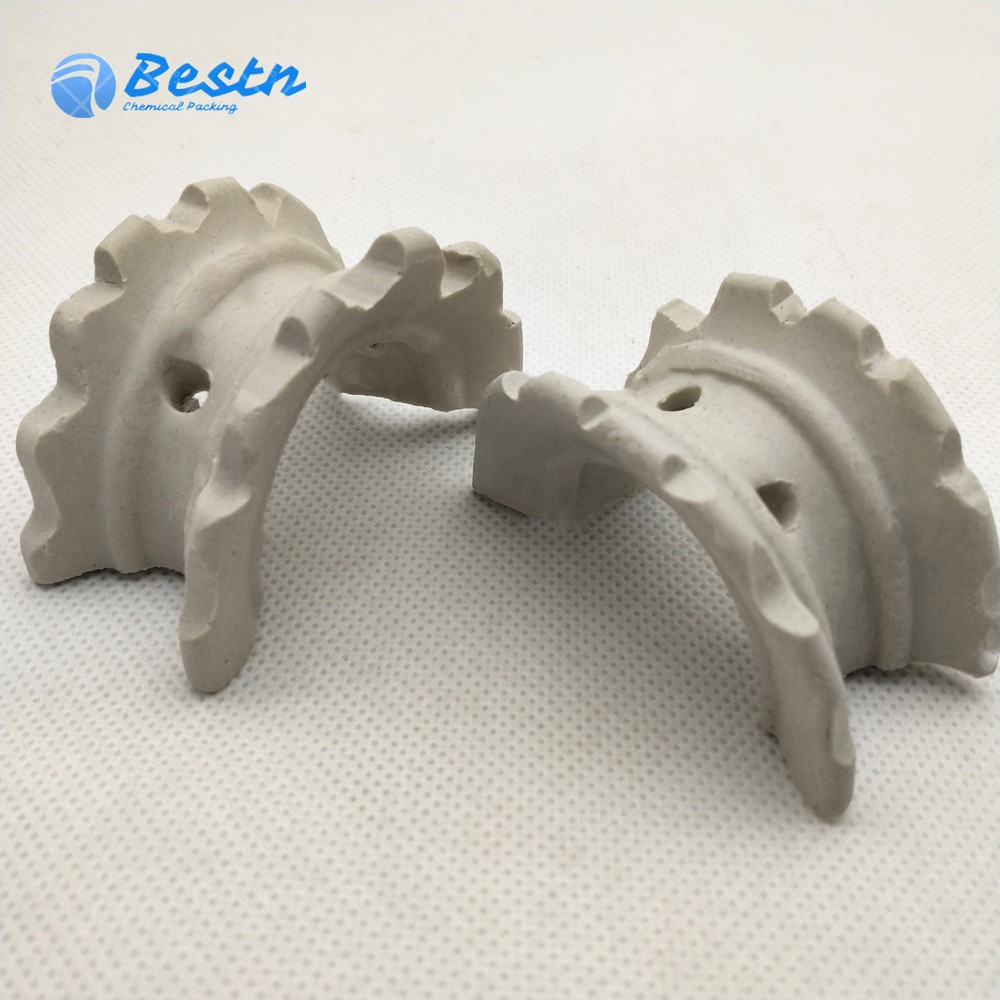

Super intalox saddle

Model Number:BS-CSIS

Place of Origin:Pingxiang,China

Keywords:Ceramic super intalox saddle , ceramis super saddle ring, intalox saddles

Intalox saddles can be used in the drying columns, absorbing columns, cooling towers, scrubbing towers and actifier columns in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc.

INQUIRE NOW Contact us +86 (0) 799 6699600 info@bestpacking.cn
jenny@towerpacking.cn

Ceramic super intalox saddle has excellent acid resistance and heat resistance. It can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid, and can be used in high or low temperature conditions. Consequently the application range is very wide. The packing can be used in the drying columns, absorbing columns, cooling towers, scrubbing towers and actifier columns in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc.



Chemical Analysis


Composition

Value

SiO2

>69%

Al2O3

17-23%

SiO2+ Al2O3

>92%

Fe2O3

<1.0%

CaO

<0.25%

MgO

<2%

K2O+Na2O

2-4%

Other

<1%


Physical properties


Index

Unit

Value

Porosity

Vol%

1

Specific heat

KJ/Kg

840-900

Crush strength

N/mm2

390-420

Specific gravity

g/cm3

2.3-2.45

Acid Resistance

%

99.98

Firing temperature

°C

1280 to 1320

Softening point

°C

>1400

Water absorption

%

<0.2

Thermal Expansion

10-6mm/mm°C

4.7

Hardness

Mohr Scale

‘7-8

Comprehensive strength

Newtons

5600

Shock strength

Kgf.cm/cm2

1.0-1.5




Geometric properties


Normal Size

Approx. Weight

Surface  area

Void Fraction(%)

Dry Packing factor(m-1)

1b/ft3

Kg/m3

ft2/ft3

m2/m3

1"

40

645

79.5

260

77

570

1.5"

37.5

600

64

210

78

430

2"

35.6

570

42.8

140

79

277

3"

36

580

32

105

77

206



Advantage
● These super saddles are made from chemical porcelain and have excellent resistance to acids except in the case of hydrofluoric acid.
● Moisture absorption must less than half a percent.
● The porcelain’s specific gravity is 2.3-2.4g/cm3 and an average heat capacity (between 20 and 500 of 0.22 cal/g.)
● BESTN ceramic super intalox saddles softening point is 1400 min. And they show good thermal shock resistance during repeated cycling between 20 and 820 .
