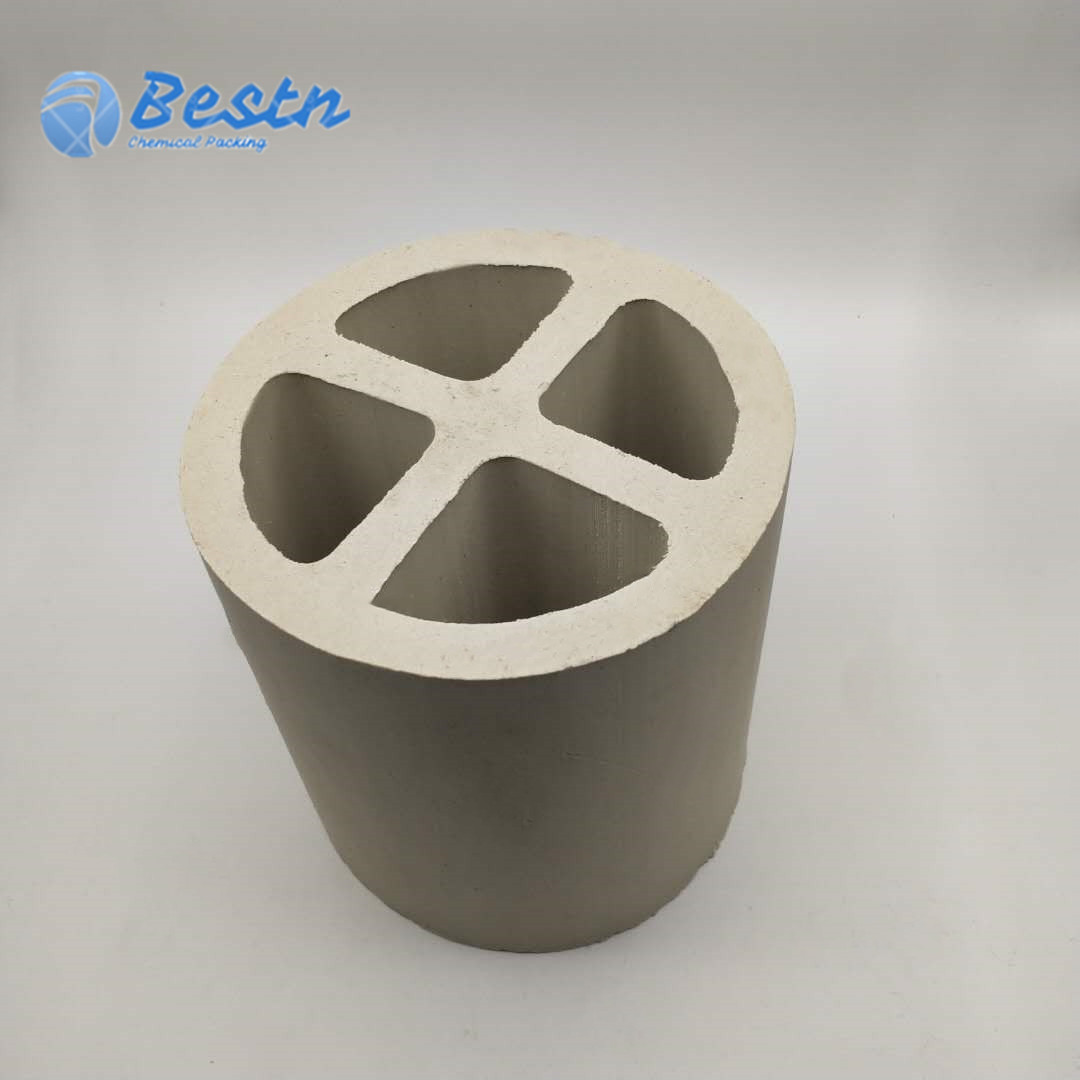

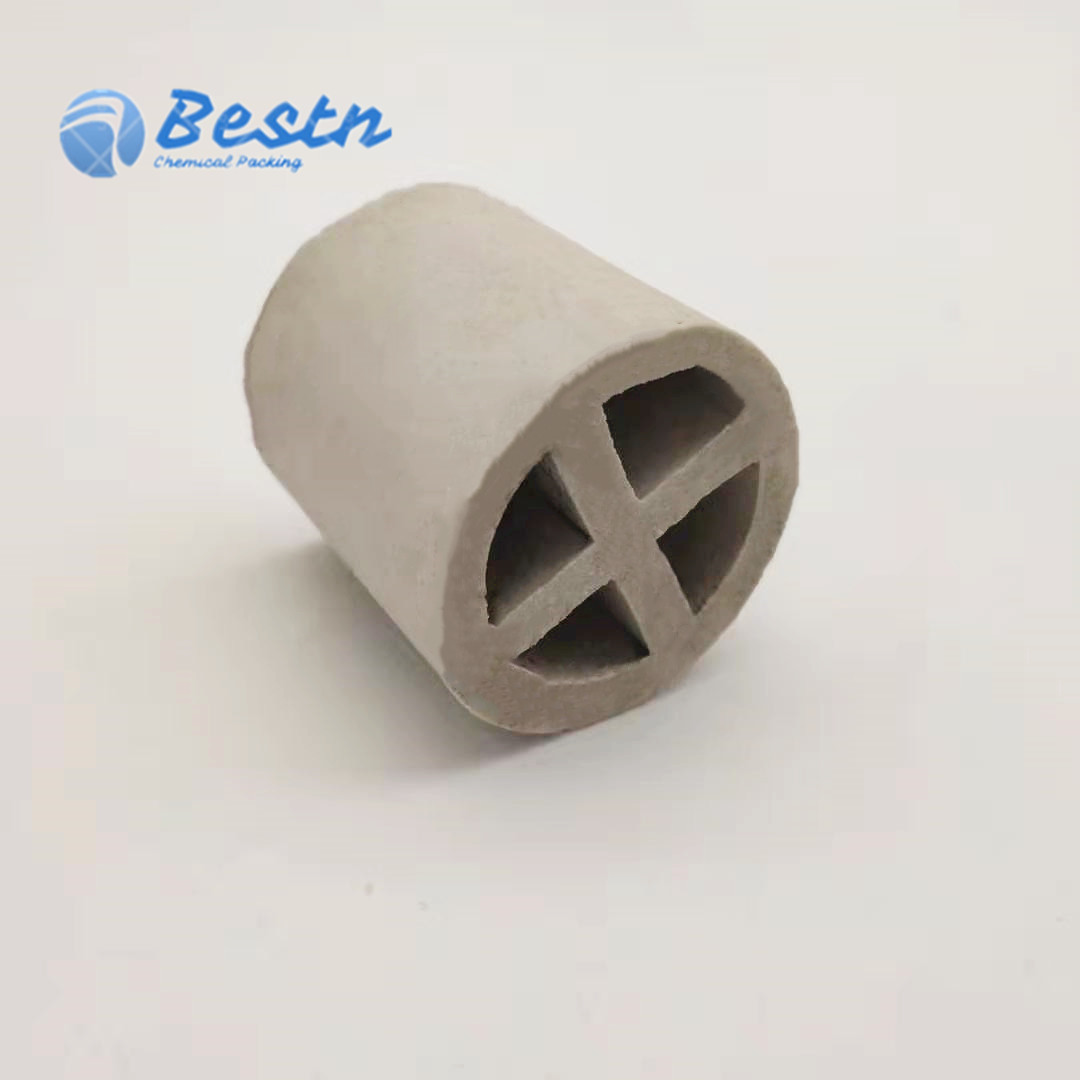

Ceramic cross ring
Model Number：BS-CCR
Place of Origin：Pingxiang,China
Keywords：Ceramic cross ring, Ceramic Cross Partition Ring, Ceramic Partition Ring
Ceramic cross ring is based on increased surface area of filter to enhance the efficiency of mass transfer on the idea and developed a new ceramic packing, the structure is added in the raschig rings in the cross partition. In general, this packing the large size, only applied to neat pile, the current cross ring is generally used as lumber distribution layer with the bottom support. 80-150mm size of the ceramic can be used for supporting cross ring material, porosity greater than 60%.
INQUIRE NOW
Contact us
86 (0) 799 6699600 / 0086 15179934828
jenny@bestpacking.cn
Chemical Analysis
|
Composition |
Value |
|
SiO2 |
>73% |
|
Al2O3 |
17-25% |
|
Fe2O3 |
<1.0% |
|
CaO |
<0.5% |
|
MgO |
<0.5% |
|
K2O+Na2O |
2-4% |
|
Other |
<0.1% |
Physical Propertie
|
Size |
Thickness |
Surface area |
Void Section |
Number |
Bulk Density |
|
80 |
8 |
120 |
54 |
1950 |
916 |
|
100 |
10 |
110 |
53 |
1000 |
930 |
|
150 |
15 |
60 |
58 |
296 |
960 |
