Plastic Heilex Ring

Model Number:BS-PHR

Place of Origin:Pingxiang,China

Keywords:Plastic Heilex Ring ,crown-type raschig ring,crown-type teller ring

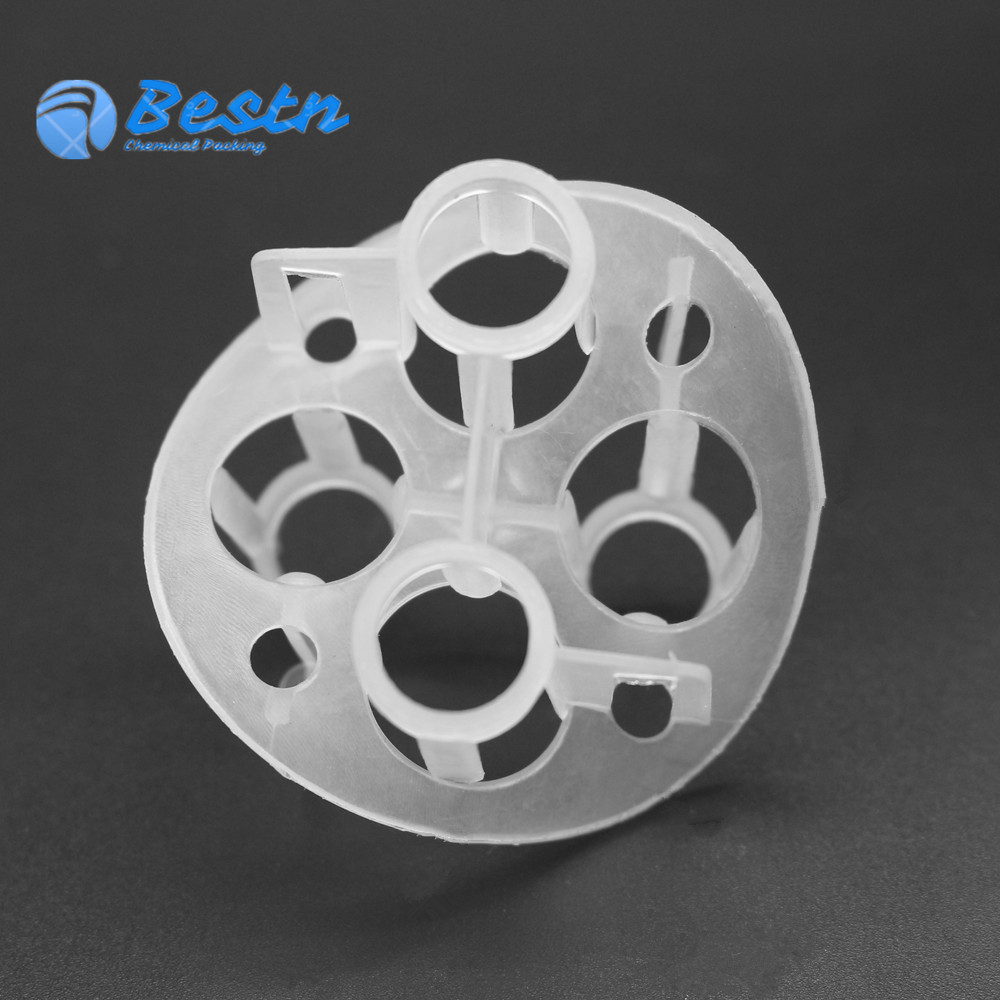

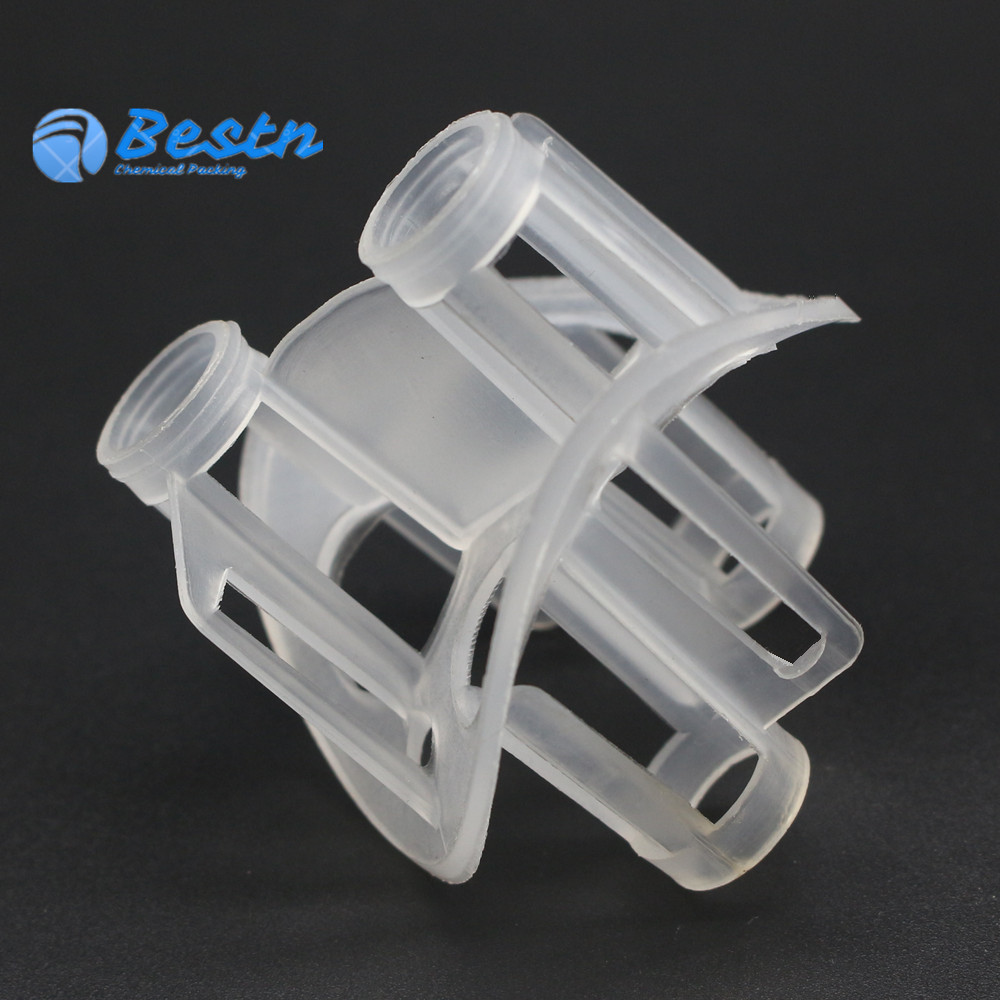

Heilex ring’s saddle-shaped openings of the main cone cylinder, increases surface area and porosity, and improves gas-liquid distribution in the packing layer.

INQUIRE NOW Contact us +86 (0) 799 6699600 info@bestpacking.cn
jenny@towerpacking.cn

Plastic heilex ring also call the crown-type raschig ring, plastic injection molding is a new type of hole filling, first developed abroad by importing this kind of filler device inspired such packing of the research conducted and successfully the development of China-made Heilex ring packing.

Heilex rings unique configuration, so that in addition to a high flux, low pressure drop, corrosion resistance and impact resistance and good performance, there will not be nested between the filler and wall effect of the small and the gas and liquid flow distribution, etc. This packing is good for gas absorption, cooling and air purification process.


Advantages:

> Low pressure drop

> Good antipollution performance

> High mass transferring efficiency

> Uniform distribution of gas-liquid


Application:
 It is used in gas absorption, Acidic gases deadsoption system, washing, fertilizer production


Technical Data

Size
(mm)

Surface Area
(m2/m3)

Free Volume
(%)

Number
(per m3)

Bulk Desntiy
(kg/m3)

50*50

110

94

8000

64

76*76

92

96

3420

56

100*100

76

95

1850

51
