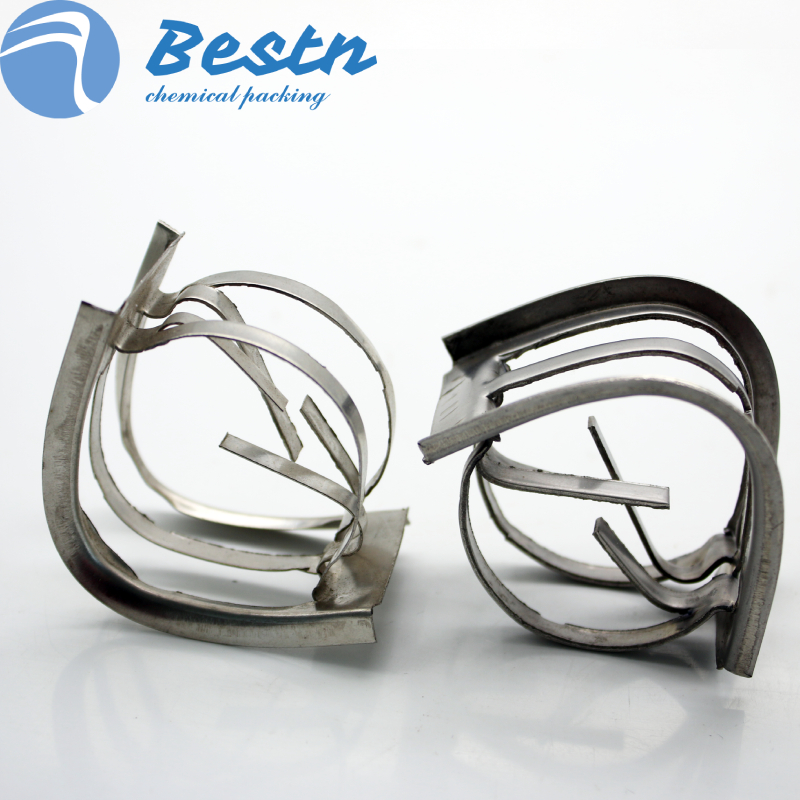

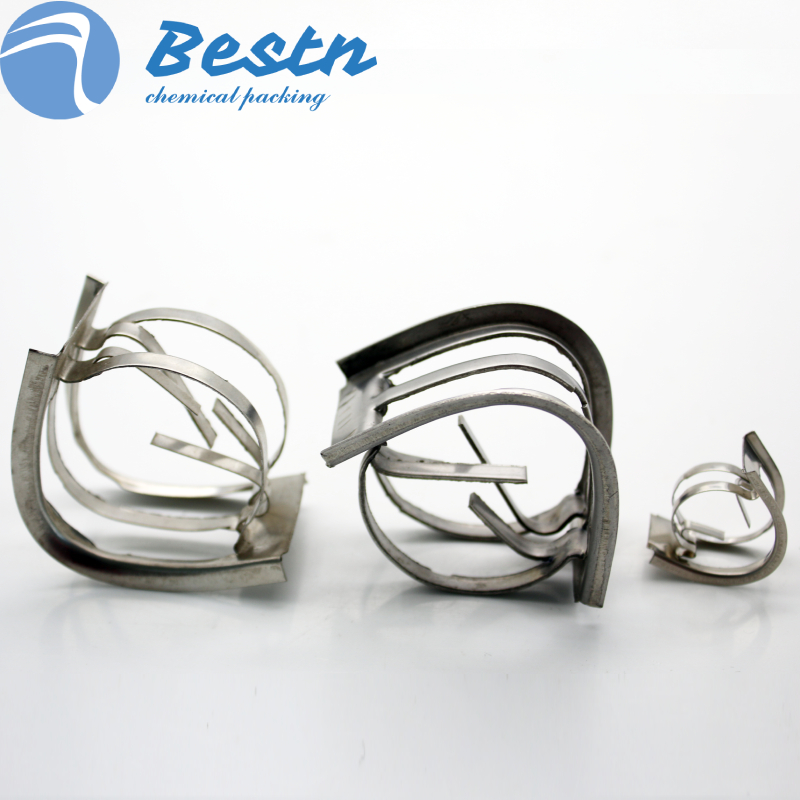

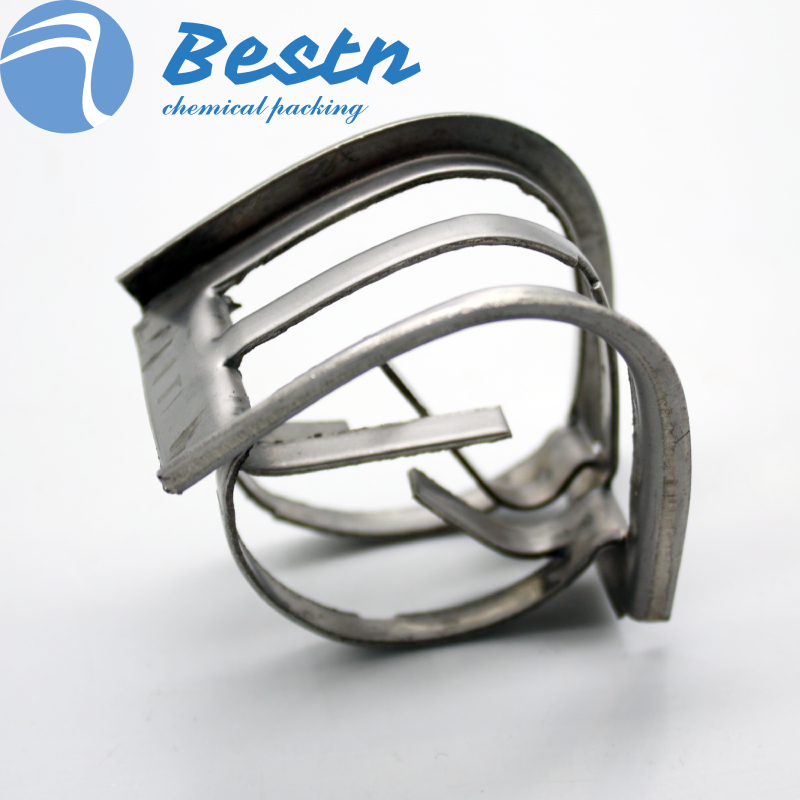

Metal Intalox Saddle
Model Number:BS-IMTP
Place of Origin:Pingxiang,China
Keywords:Metal Intalox Saddle, IMTP, metal saddle ring, intalox saddles
BESTN Metal Intalox Saddles are the equivalent to Intalox Metal Tower Packing (IMTP). 1.Superior surface utilization rate, large flux, low pressure drop, high efficiency of mass transfer and large operating flexibility. 2.widely used in distillation, gas absorption, regeneration and desorption system.
INQUIRE NOW
Contact us
86 (0) 799 6699600 / 0086 15179934828
jenny@bestpacking.cn
Metal Intalox Saddle was developed by the United States Norton, between the shape of its saddle-shaped ring and between, and the advantages of both. Intalox metal structure in the saddle-shaped packing ring based on the increase of the annular tendon, to avoid overlap and ensure a certain degree of strength and rigidity out of a number of small claws, an increase of gas-liquid agitation, enhanced mass transfer, thus produce a unique performance.
Geometric Parameters
Size
Bulk density
Number
Free volume
Surface Area
Packing Factor
15x0.25
280
347000
96.5
305
167
25x0.3
255
135000
96.8
241
135
40x0.4
231
50200
97.1
161
79
50x0.4
149
15000
98.1
104
59
60x0.4
142
8400
98.2
85
50
70x0.5
113
4600
98.6
62
39
(mm)
(kg/m3)
(per m3)
(%)
(m2/m3)
(m-1)
The above data is reference to material stainless steel (AISI304) in the material thickness shown. Other material available: carbon steel, stainless steel including 304, 304L, 410,316, 316L.
Advantage
● A versatile packing used in distillation, absorption and other operations.
● Used in both deep vacuum and high pressure towers.
● BESTN metal saddle is high performance random packing successfully used in mass transfer towers both small and large diameter. It is frequently used in deep vacuum towers where low pressure drop is crucial and also high pressure towers where capacity significantly exceeds conventional trays.
Packaging & Shipping
Package Type |
Container Load Capacity |
Delivery time |
Quality Insurance |
Payment Terms |
|
20 GP |
40 GP |
||||
Ton bag |
20 m3 |
40 m3 |
Within 7-14 days |
Chinese National Standard; |
T/T, L/C, Paypal, West Union |
Paper box |
20 m3 |
40 m3 |
Offer quality assurance as request. |
Alibaba Trade Assurace |
|
Wooden box |
20 m3 |
40 m3 |
