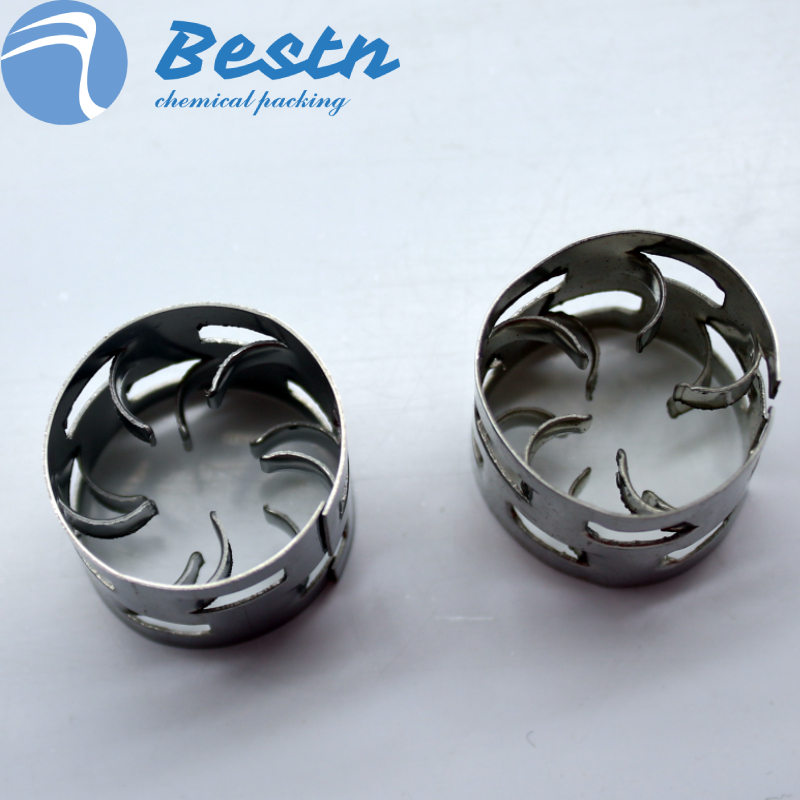

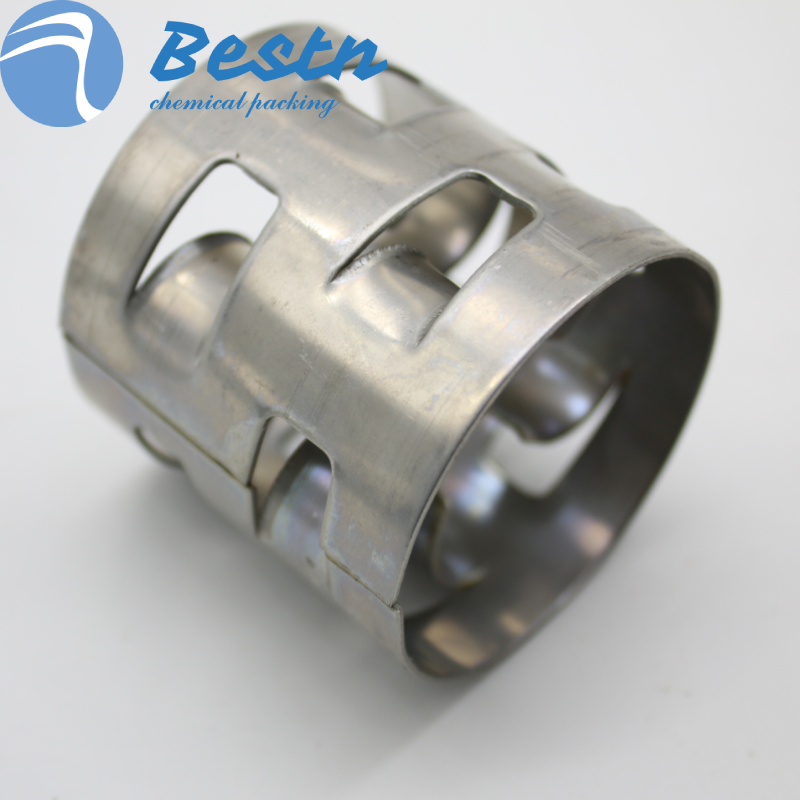

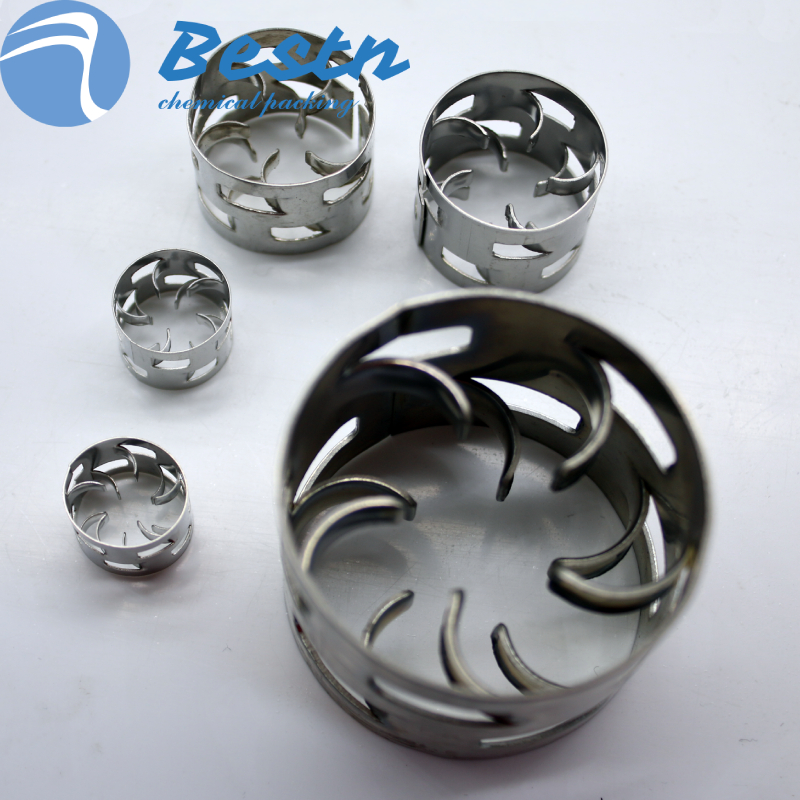

Metal Pall Ring

Model Number:BS-MPR

Place of Origin:Pingxiang,China

Keywords:metal pall ring, SS304 Pall ring, pall ring packing

Metal Pall ring is developed on the basis of Raschig ring. Compared with Raschig ring, Pall ring has advantages of large production capacity, low resistance, large operation flexibility and high efficiency.

INQUIRE NOW Contact us 86 (0) 799 6699600 / 0086 15179934828 info@bestpacking.cn
jenny@towerpacking.cn

Metal Pall ring is developed on the basis of Raschig ring. Compared with Raschig ring, Pall ring has advantages of large production capacity, low resistance, large operation flexibility and high efficiency.

The structure of Pall Ring improves distribution of gas-liquid. Its efficiency can be improved 50%. Compared with Raschig Ring, it has half of pressure drop.



Advantages: 1)Lower presure drop. 2)Huge flux. 3)High efficiency.


Application: Widely used in toluene seperation, ethylbenzene seperation, desulfurization system, Etc.

Geometric Parameter

Size
(mm)

Bulk density
(kg/m3)

Number
(per m3)

Surface area
(m2/m3)

Free volume
(%)

16*16*0.3

360

201000

346

95.5

25*25*0.4

302

51000

212

96.2

25*25*0.5

400

51000

216

95

25*25*0.6

461

51000

219

94.2

38*38*0.4

218

15000

143

97.2

38*38*0.5

262

15180

145

96.7

38*38*0.6

328

15000

146

95.9

50*50*0.5

194

6500

106

97.5

50*50*0.8

315

6500

108

96.4

50*50*0.9

365

6500

109

95.4

76*76*0.8

205

1830

69

97.4

90*90*1.0

229

1160

62

97.1

The above data is reference to material stainless steel (AISI304) in the material thickness shown. Other wall thicknesses are available on request.


Material available: carbon steel, stainless steel including 304, 304L , 410,316, 316L .
