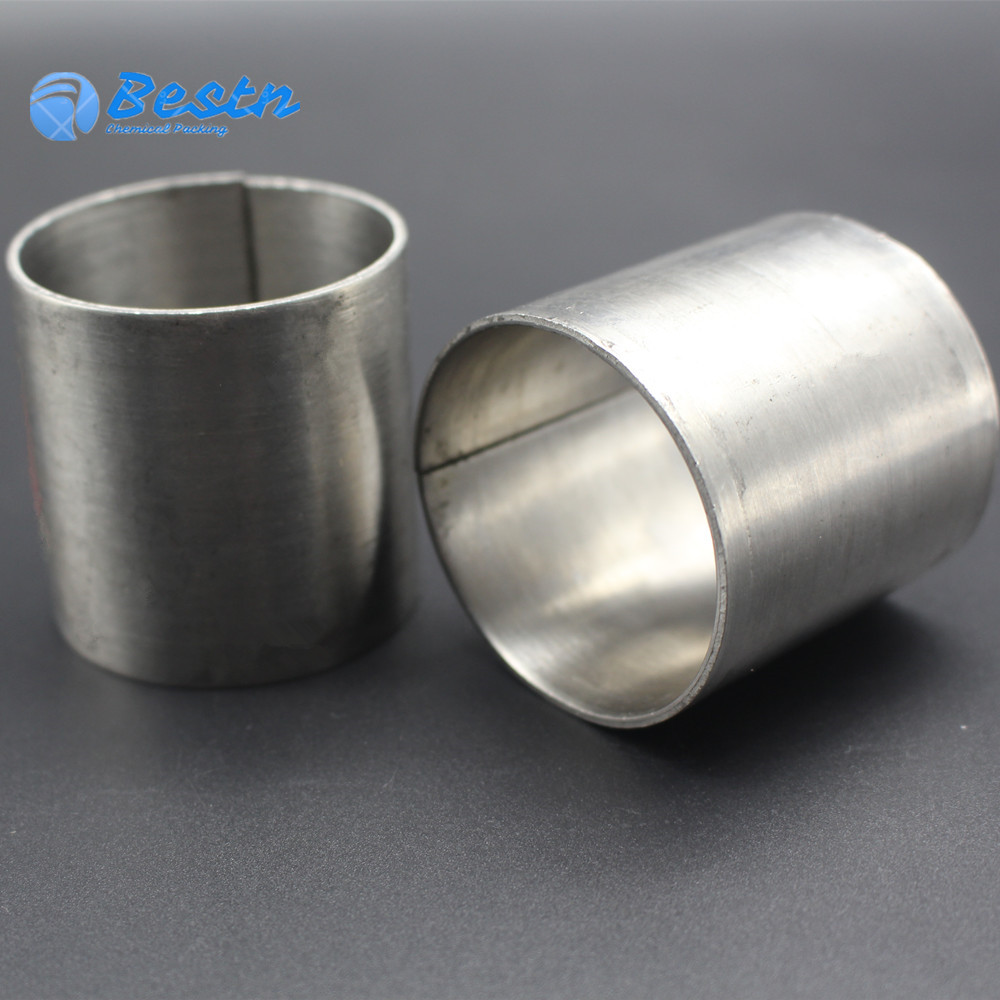

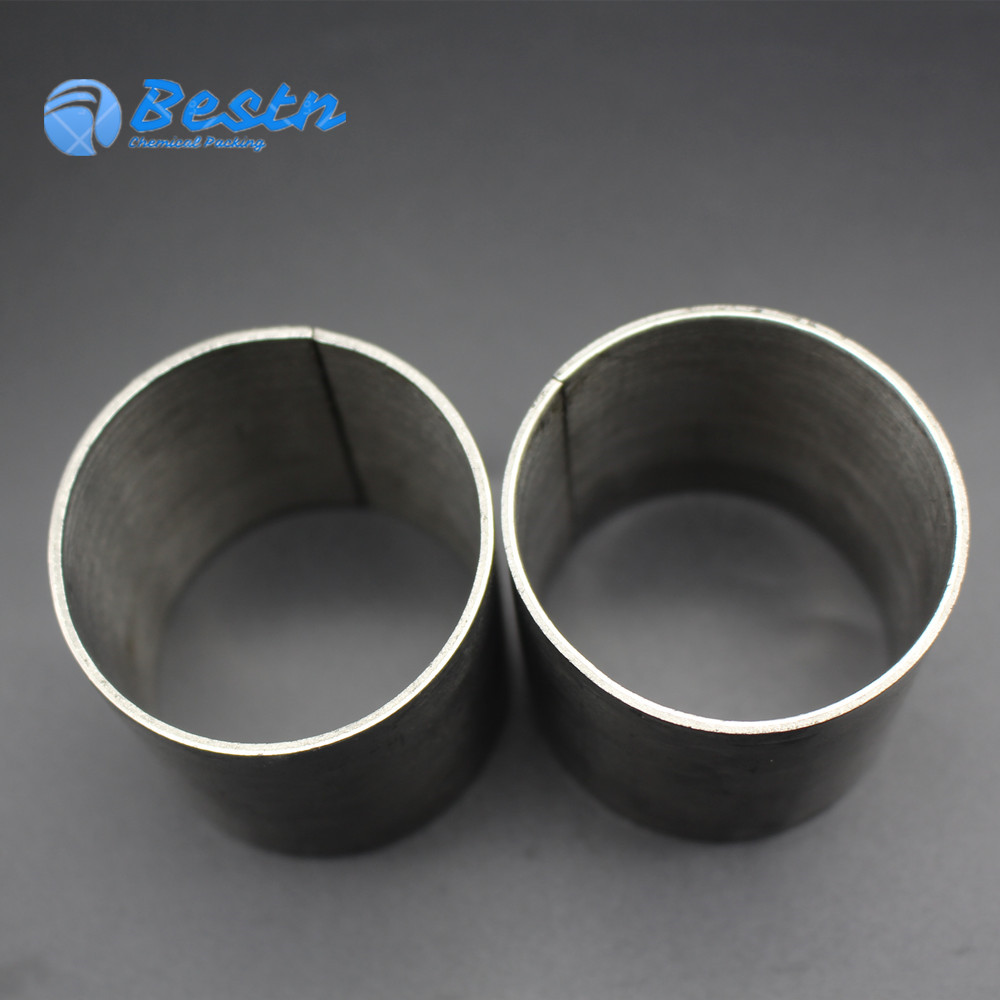

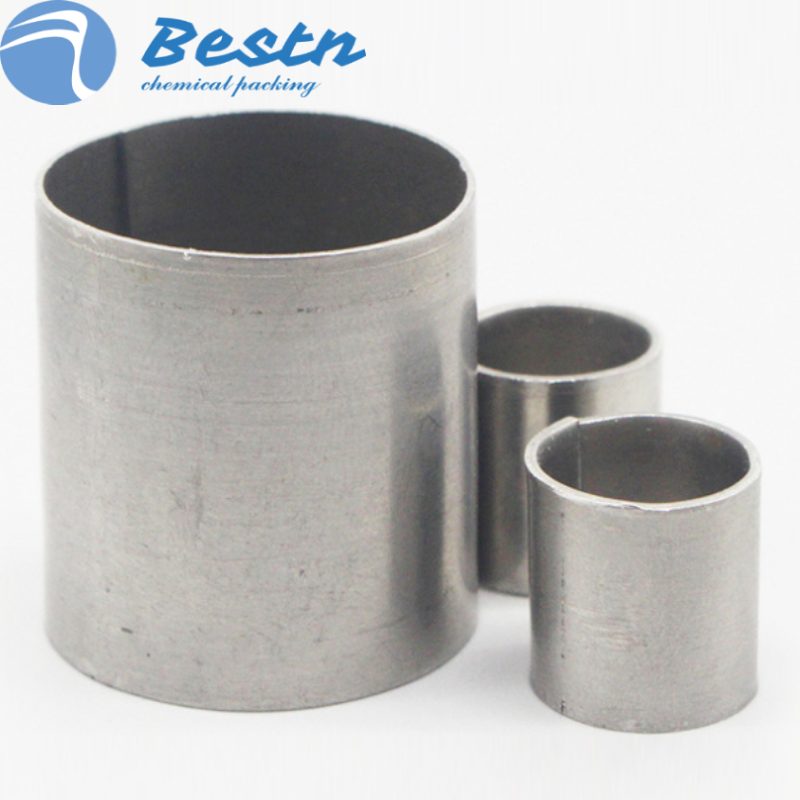

Metal Raschig Ring
Model Number：BS-MRR
Place of Origin：Pingxiang,China
Keywords：Metal Raschig Ring, rasching ring packing,304 raschig ring
a. It has High capacity,Low pressure drop,High separation,Cold and heat resistant long life b. It widely used in Petrochemical distillation and extraction; Absorption in gas procesing and combustion plants.Desorption in Water Treatment
INQUIRE NOW
Contact us
86 (0) 799 6699600 / 0086 15179934828
jenny@bestpacking.cn
Since 1914 when F.Raschig invented this type of ring for tower packing, random tower pickings have been developed extensively. The R-ring is now used in many applications, but particularly in supporting catalyst beds.
Metal Raschig Rings are available in a wide range of carbon and stainless steels, 304, 304L , 410,316, 316L etc.
Geometric Parameters
|
Size |
Bulk density |
Number |
Surface area |
Free volume |
|
15×15×0.3 |
379 |
230000 |
350 |
95 |
|
25×25×0.4 |
318 |
51000 |
216 |
96 |
|
25×25×0.5 |
400 |
51000 |
220 |
95 |
|
35×35×0.8 |
430 |
19000 |
150 |
93 |
|
50×50×0.5 |
203 |
6500 |
106 |
97.4 |
|
50×50×0.7 |
285 |
6500 |
108 |
96.4 |
|
50×50×0.8 |
325 |
7000 |
109 |
95 |
|
76×76×0.8 |
212 |
1830 |
69 |
97.3 |
|
80×80×1.2 |
300 |
1600 |
65 |
96 |
|
90×90×1.0 |
236 |
1160 |
62 |
97 |
