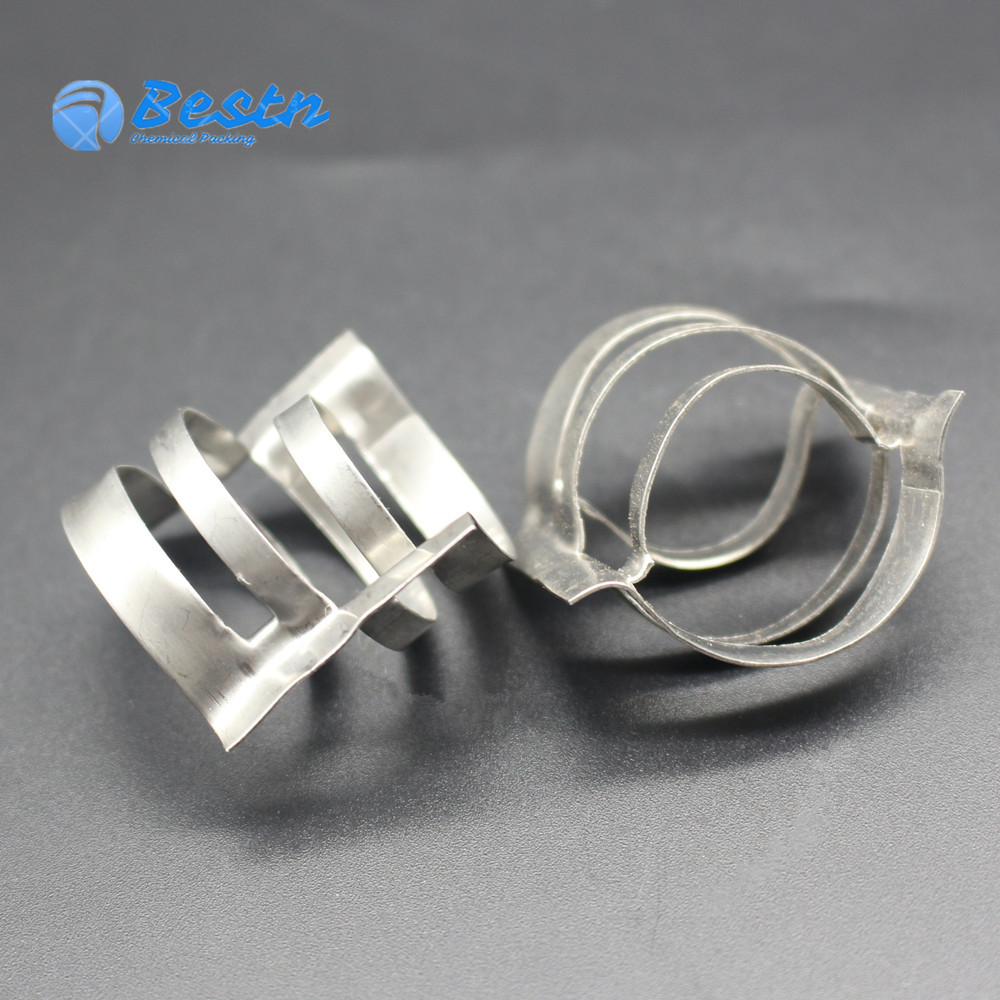

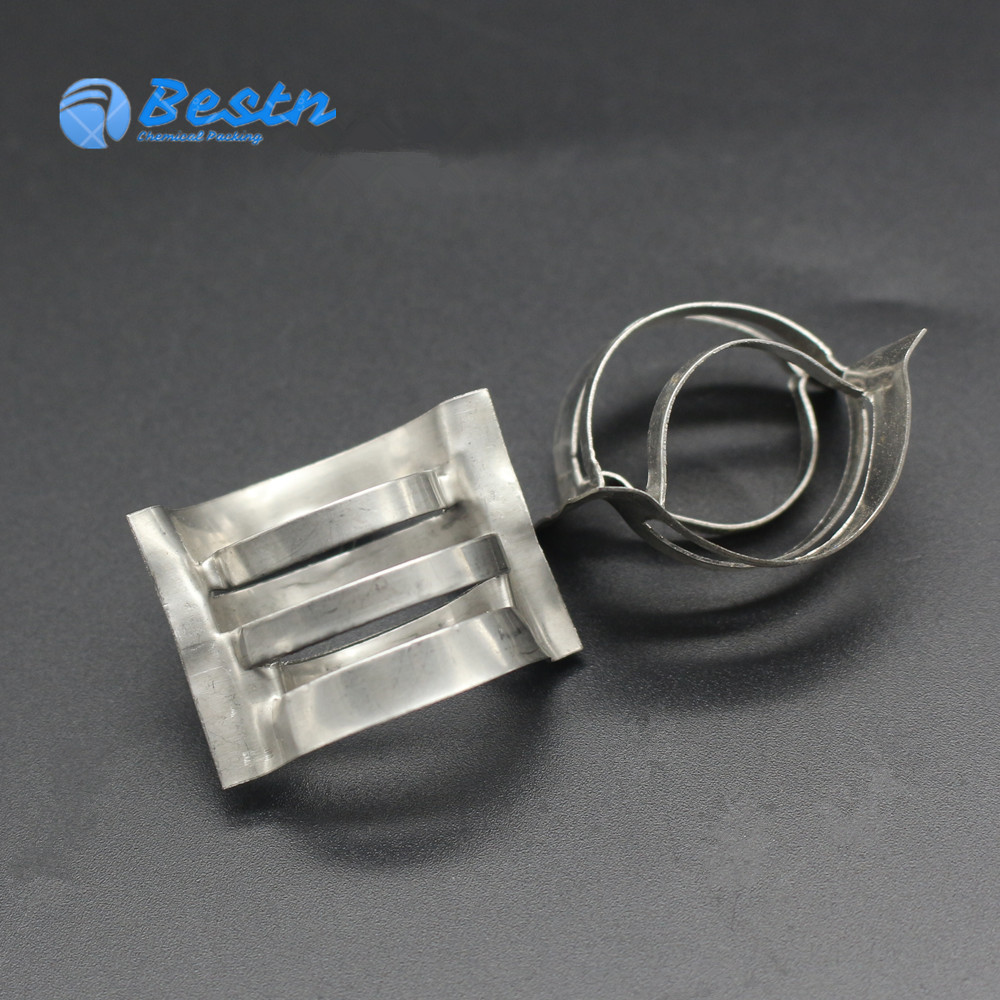

Metal Conjugate Ring

Model Number:BS-MCR

Place of Origin:Pingxiang,China

Keywords:Metal Conjugate Ring,conjugated ring packing, conjugate

Product features ● Improved efficiency due to lateral liquid diffusion and surface film renewal ● Outstanding surface utilization in mass and heat transfer applications. ● Shorter packed bed heights ● Maximum piece-to-piece contact with minimal nesting ● High strength to weight ratio allows up to a 15 meter bed height ● Consistent performances due to uniform randomness ● Free flowing particle design facilitates installation and removal via uniform randomizing

INQUIRE NOW Contact us 86 (0) 799 6699600 / 0086 15179934828 info@bestpacking.cn
jenny@towerpacking.cn

Product features

   Improved efficiency due to lateral liquid diffusion and surface film renewal
   Outstanding surface utilization in mass and heat transfer applications.
   Shorter packed bed heights
   Maximum piece-to-piece contact with minimal nesting
   High strength to weight ratio allows up to a 15 meter bed height
   Consistent performances due to uniform randomness
  ● Free flowing particle design facilitates installation and removal via uniform randomizing


Product specifications

Size(inch)

Surface

area (m2/m3)

Void ratio(%)

Number per
m3

Bulk density

(kg/m3)

No. 0.7

226

97.7

167 400

177

No. 1.0

168

97.7

67 100

179

No. 1.5

124

97.6

26 800

181

No. 1.75

106

98

20 200

155

No. 2.0

96

98.2

13 600

144

No. 2.5

83

98.4

8 800

121

No. 3.0

66

98.2

4 200

133

Materials: carbon steel, SS304, SS316, SS304L, SS316L, etc
