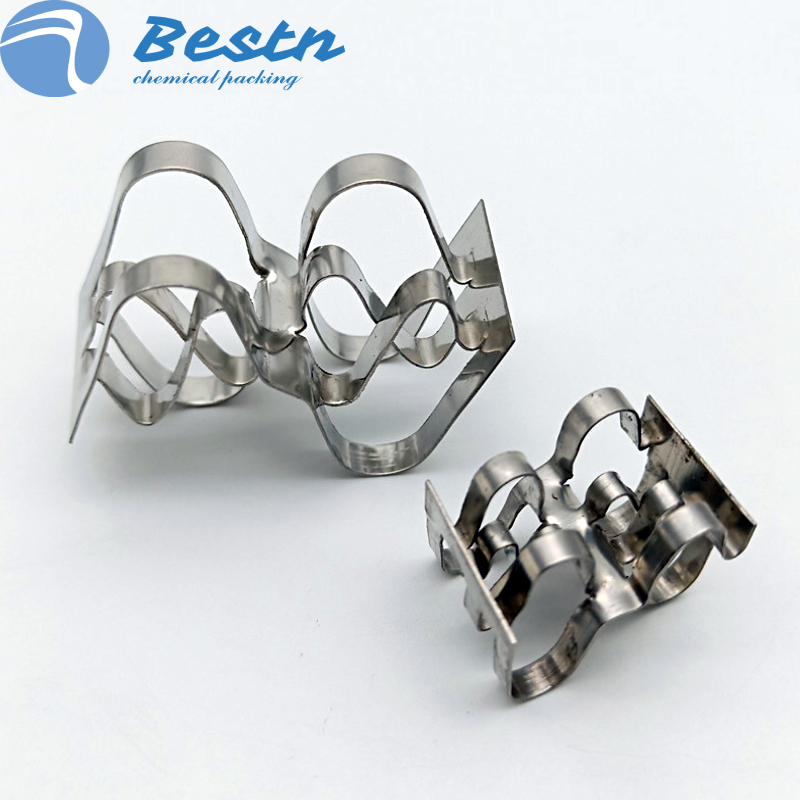

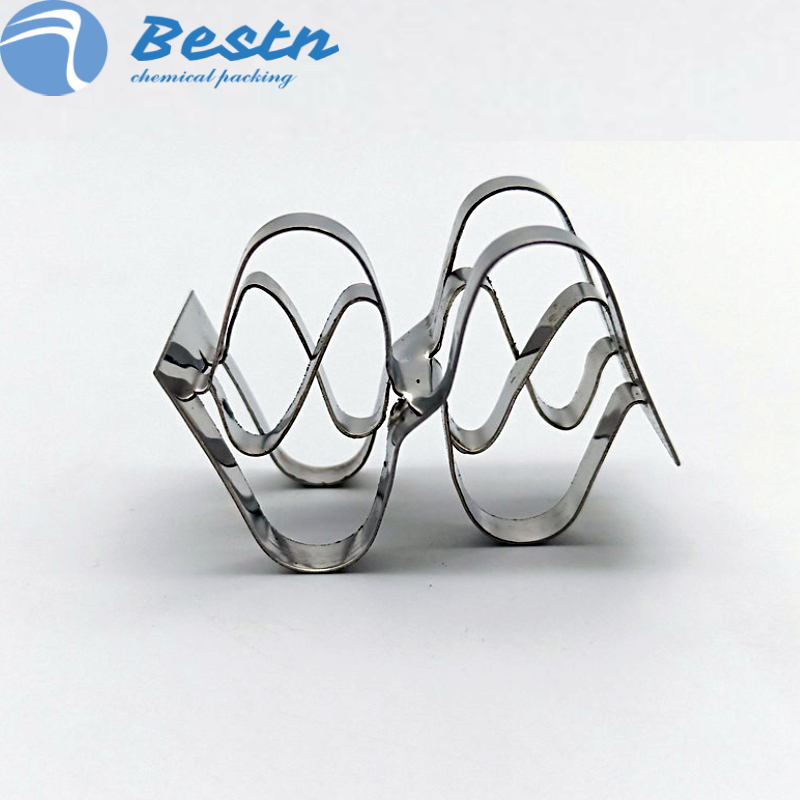

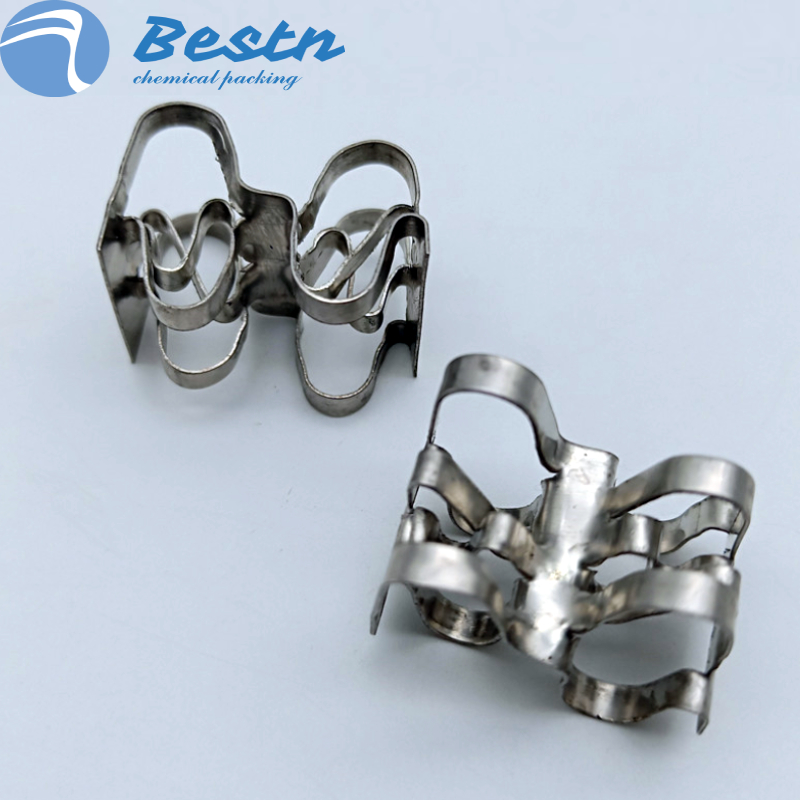

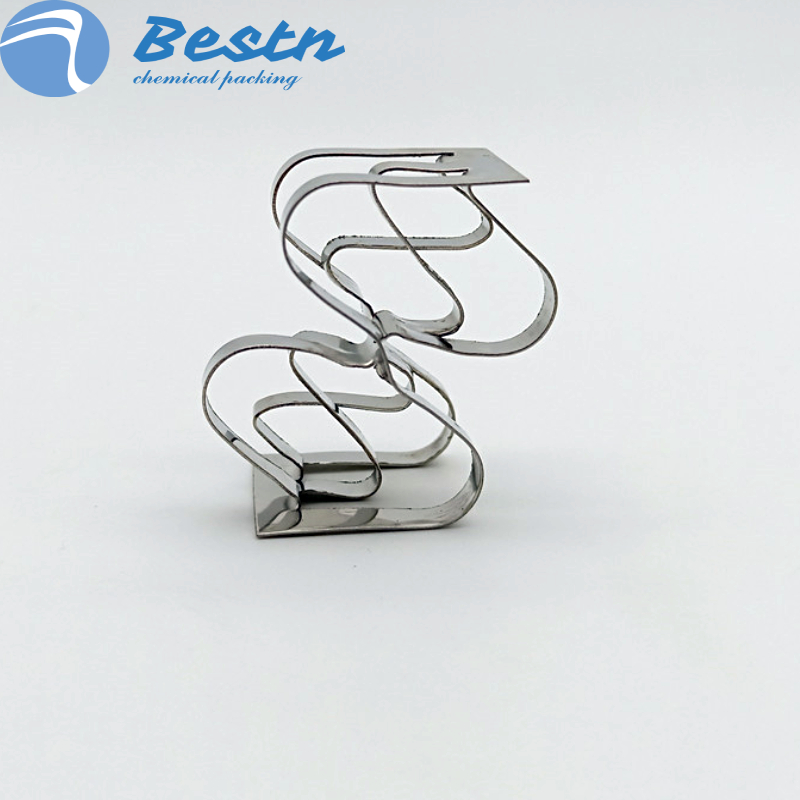

Metal Super Raschig Ring
Model Number：BS-MRR
Place of Origin：Pingxiang,China
Keywords：Metal Super Raschig Ring, metal double Conjugate Ring,metal random packing
The development of the new \" Super Raschig Ring \" packing element sets new standards in the field of separation technology, as the designer so the Super Raschig Ring have succeeded in finding an optimum link to those demands which a modern, high-performance packing element must fulfill under industrial conditions.
INQUIRE NOW
Contact us
86 (0) 799 6699600 / 0086 15179934828
jenny@bestpacking.cn
The design of the Super Raschig Ring offers an optimal solution to industry's demands for a modern heavy-duty packing. Unlike previous packing shapes, the Super Raschig Ring avoids the droplet formation which is such a frequent interference accompanying large gas loads.
The Super Raschig Ring has a more than 30% greater load capacity, an almost 70% lower pressure drop and a mass transfer efficiency exceeding that of conventional metal packings by over 10%.
Product specifications
|
Size (mm) |
Number per |
Surface area (m2/m3) |
Void ratio(%) |
|
15 |
180,000 |
315 |
96 |
|
20 |
145,000 |
250 |
97 |
|
25 |
46,500 |
180 |
98 |
|
30 |
32,000 |
150 |
98 |
|
38 |
13,750 |
120 |
98 |
|
50 |
9,500 |
100 |
98 |
|
70 |
4,300 |
80 |
98 |
|
Materials: carbon steel, SS304, SS316, SS304L, SS316L, etc |
|||
