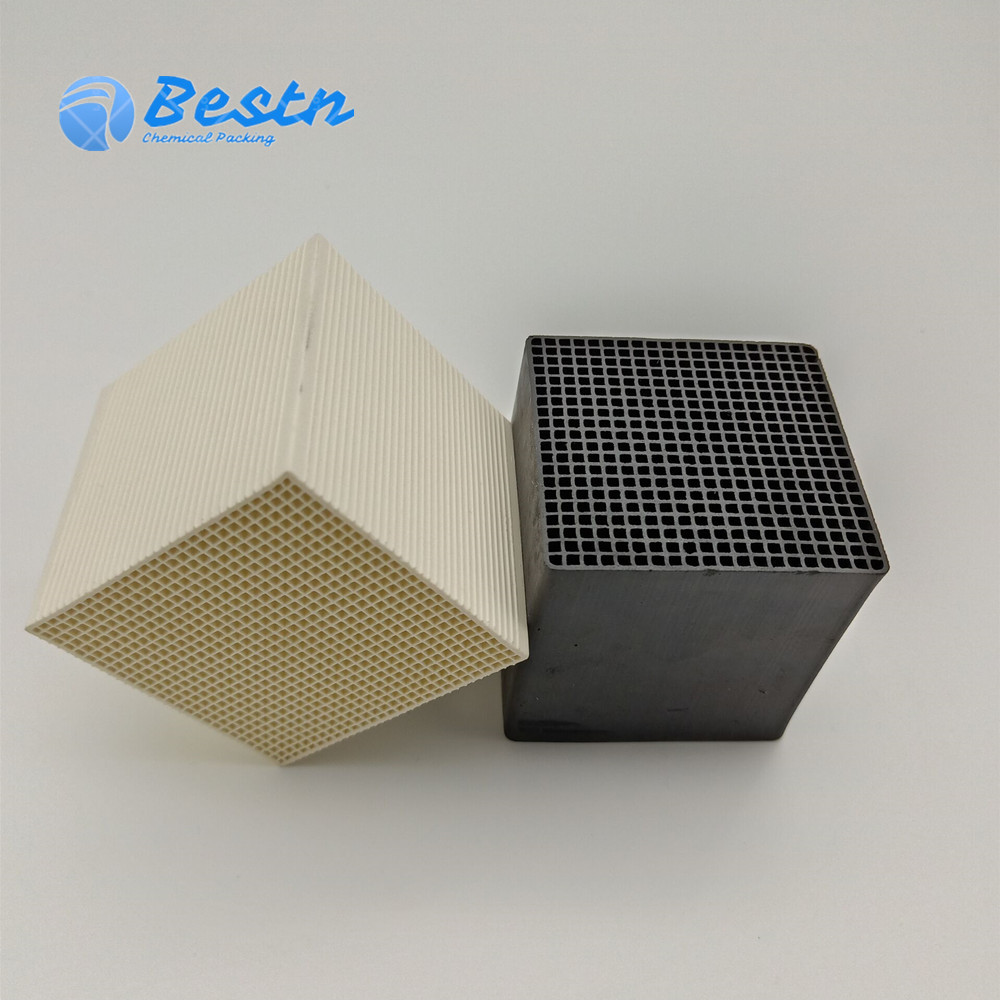

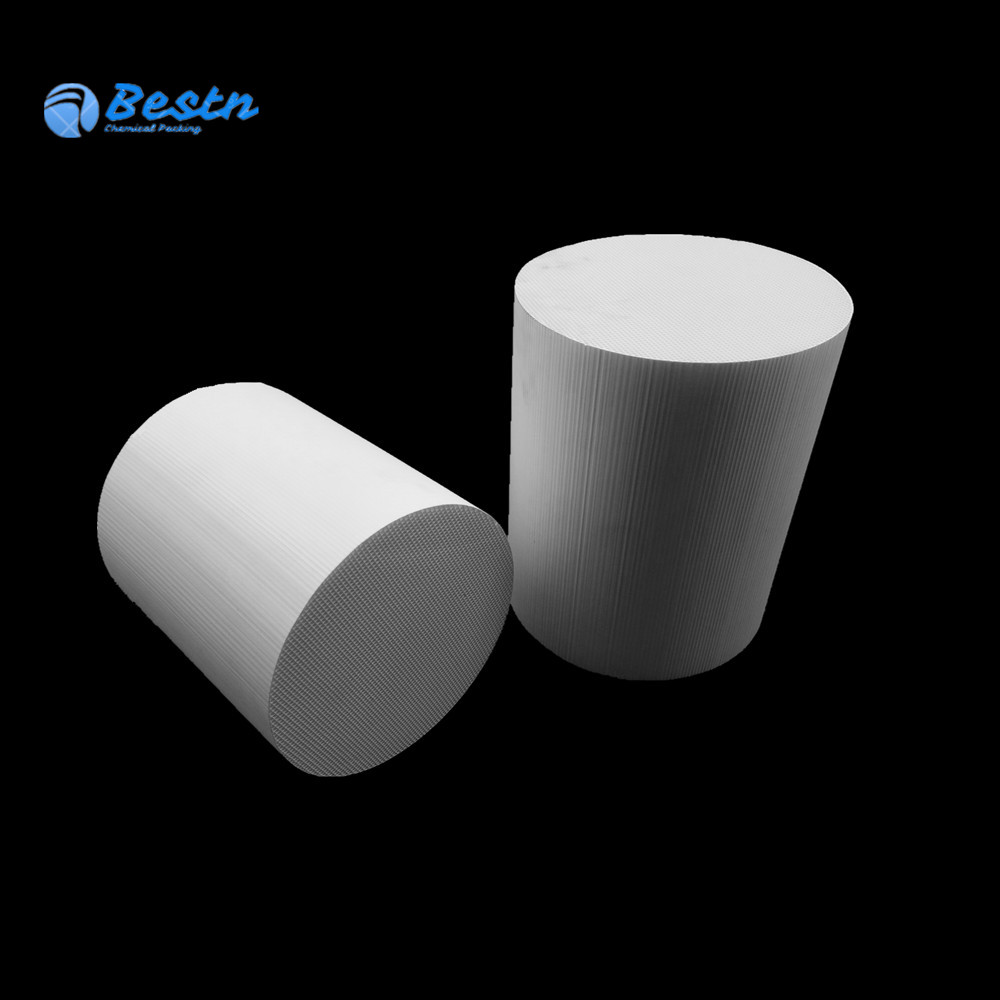

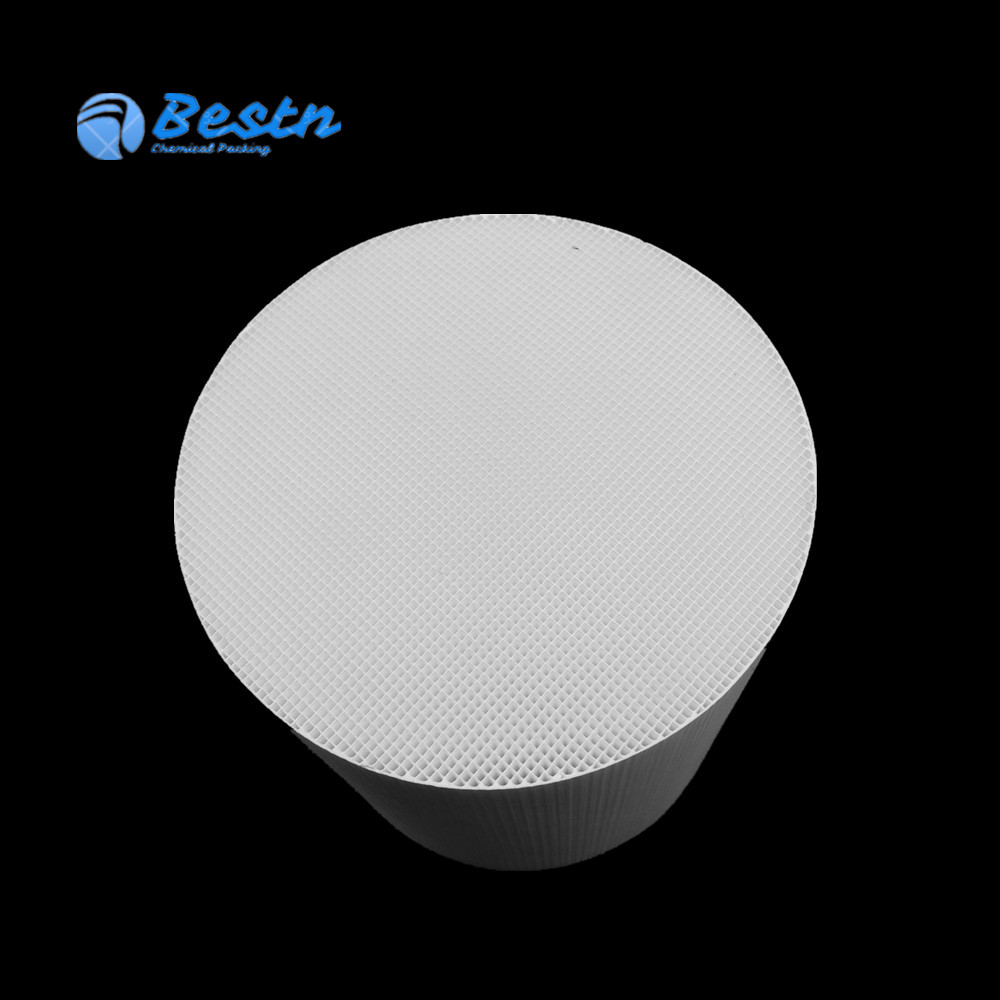

Catalyst Carrier Honeycomb ceramic

Model Number:BS-HCC

Place of Origin:Pingxiang,China

Keywords:Honeycomb ceramic for car, carrier honeycomb ceramic, VOC,DOC

It has characteristics of large surface area, small expansion coefficient, high strength, high water absorption, and good matching with the catalytic active component, heating up fast and so on.

INQUIRE NOW Contact us 86 (0) 799 6699600 / 0086 15179934828 info@bestpacking.cn
jenny@towerpacking.cn

The catalyst carrier is mainly used in the automotives and other high-temperature process exhaust. The main material is cordierite, after coated the catalyst, catalytic conversion of the exhaust, so as to achieve the national emission standards. It has characteristics of large surface area, small expansion coefficient, high strength, high water absorption, and good matching with the catalytic active component, heating up fast and so on.



Product Characteristics

● Large specific surface area: to ensure full access to the exhaust gas with the catalyst.

● Stable water absorption: to ensure the catalyst evenly firmly attached to the surface of the catalyst carrier.

● Warm-up: after start-up the engine, the temperature of the carrier can reach the catalyst activation temperature in the shortest possible time.

● Low exhaust resistance: the engine’s exhaust resistance is small, to ensure that doesn’t affect the engine performance.

● High strength: the operating environment of the catalyst carrier is in the bumpy car, so the catalyst carrier must be high strength without being external damage.

● Good assembly: the carrier is an exhaust assembly parts, only good appearance and precise dimensions can ensure perfect assembly.



Physical and Chemical Properties

Items

Unit

Index

Chemical Composition

SiO2

%

49-51

Al2O3

%

33-35

MgO

%

13-14

Wall Thickness

mm

100 CPSI

0.43

200 CPSI

0.32

300 CPSI

0.30

400 CPSI

0.18

600 CPSI

0.15

Crush Strength

A-axis

Mpa

≥16

B-axis

Mpa

≥3

Water Absorption

%

25±2

Coefficient of Thermal Expansion

10-6/K-1

0.8-2.0

Maximum Operating Temperature

°C

≥1370

Bulk Density

Kg/L

0.43-0.75
