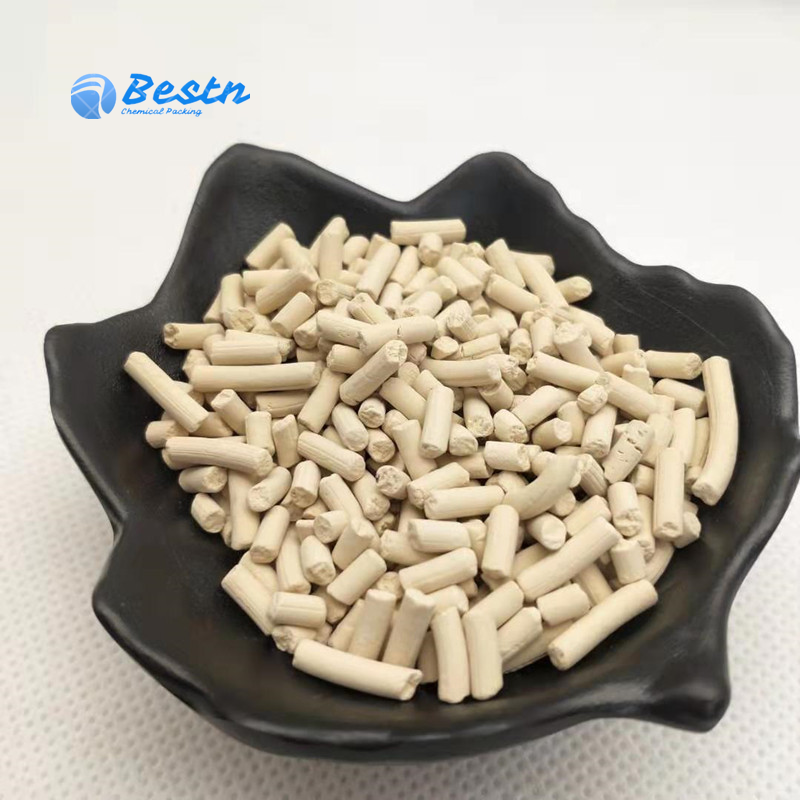

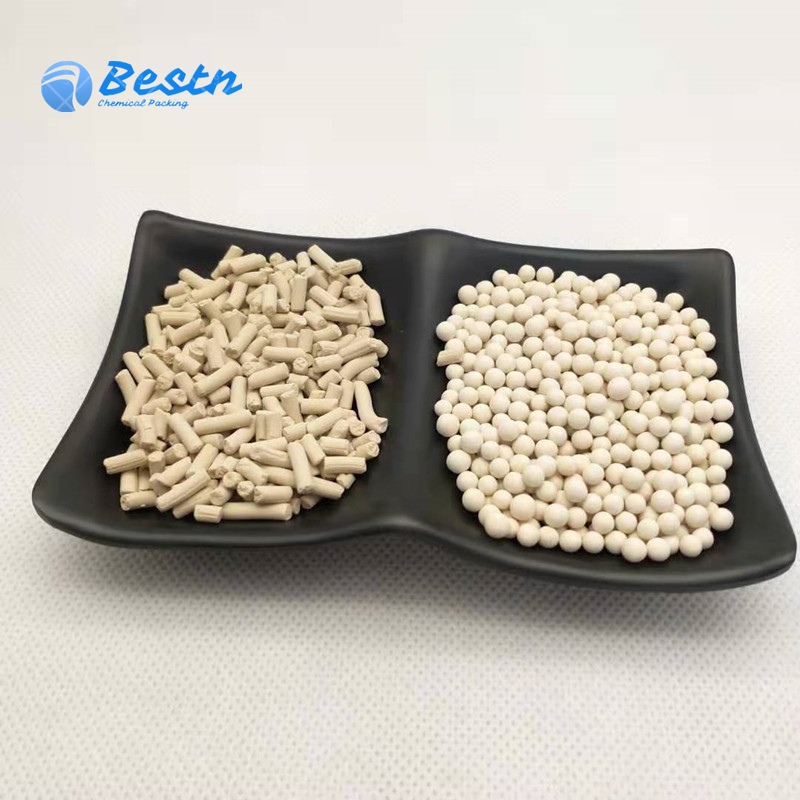

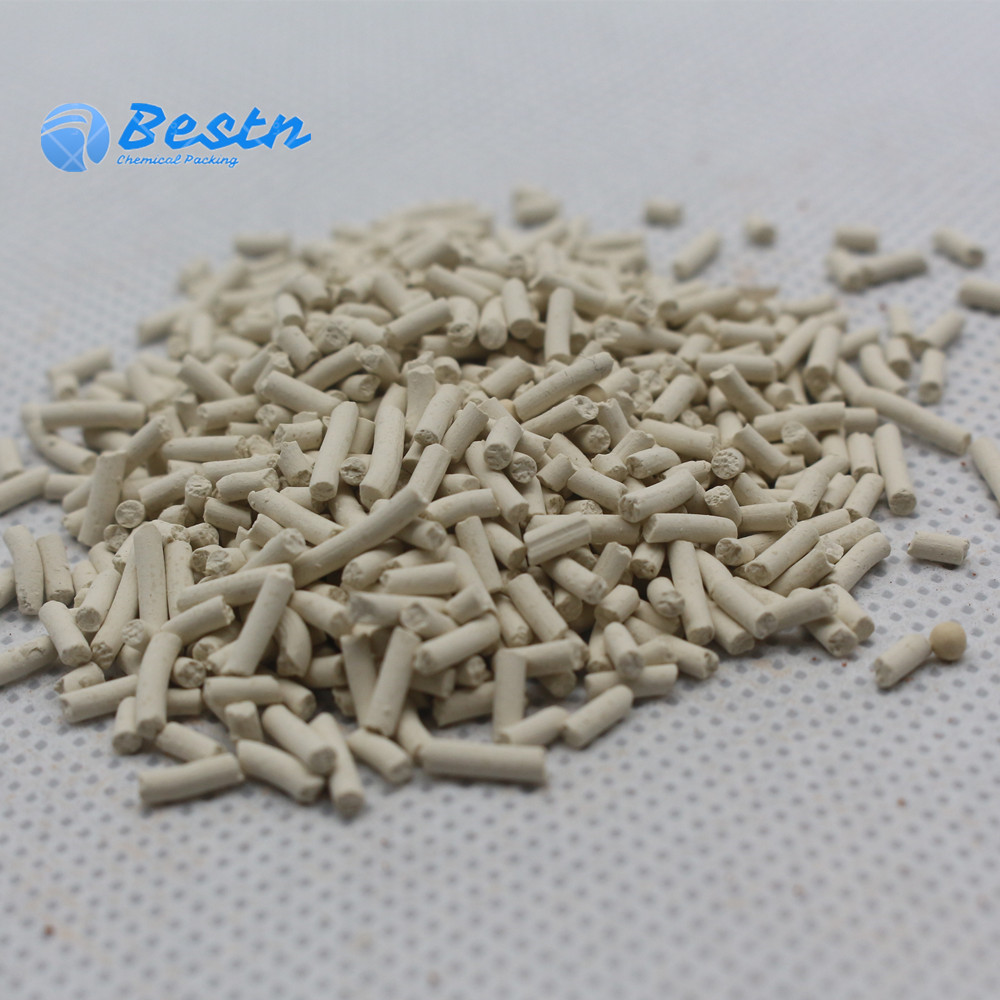

13X APG molecular sieve

Model Number:BS-13X APG

Place of Origin:Pingxiang,China

Keywords:13X APG molecular sieve, 13X APG zeolite, 13X desiccant

Type 13X APG molecular sieve is specially designed to co-absorb CO2 and H2O for air cryo-separation industry.

INQUIRE NOW Contact us 86 (0) 799 6699600 / 0086 15179934828 info@bestpacking.cn
jenny@towerpacking.cn

Type 13X APG molecular sieve is specially designed to co-absorb CO2 and H2O for air cryo-separation industry. It has largeer capacity and faster adsorption speed for removal of CO2 and H2O to prevent the bed gelation, it is suitable for any air cryo-separation plants of any size and any types in the world.


Typical Chemical Formula
Na2O Al2O3 2.45SiO2 6.OH2O
SiO2 : Al2O3 ≈2.6-3.0



Technical Parameter

Item

Unit

Technical data

Shape



Pellet

Sphere

Diameter

mm

1.5-1.7

3.0-3.3

1.7-2.5

3.0-5.0

Size ratio up to grade

%

≥98

≥98

≥96

≥96

Bulk density

g/ml

≥0.62

≥0.61

≥0.64

≥0.64

Wear ratio

%

≤0.20

≤0.20

≤0.10

≤0.10

Crushing strength

N

≥30/cm

≥70/cm

≥50/piece

≥70/piece

Static water adsorption

%

≥27

≥27

≥27

≥27

CO2 adsorption

%

≥18.5

≥18.5

≥18.5

≥18.5

Water content, as shipped

%

≤1.5

≤1.5

≤1.5

≤1.5


Typical Application
Removal of H2O from air fro air cryo-separation application.

Size
13X APG- Zeolites are available in beads of 1-2 mm, (10x18 mesh) 2-3 mm, (8x12 mesh) , 2.5-5 mm, (4x8 mesh) and as powder, and in pellet 1.6”, 3.2”.

Attention
To avoid damp and pre-adsorption of organic before running, or must to be reactivated.
