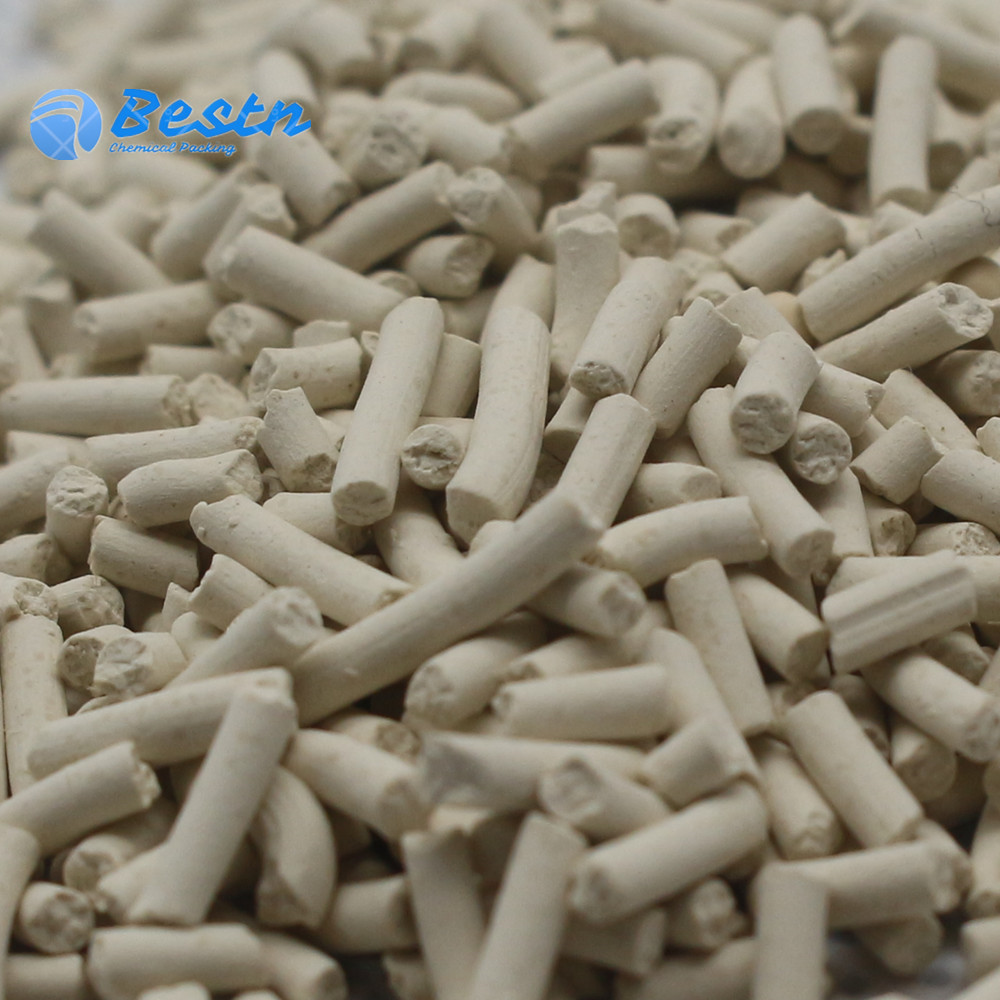

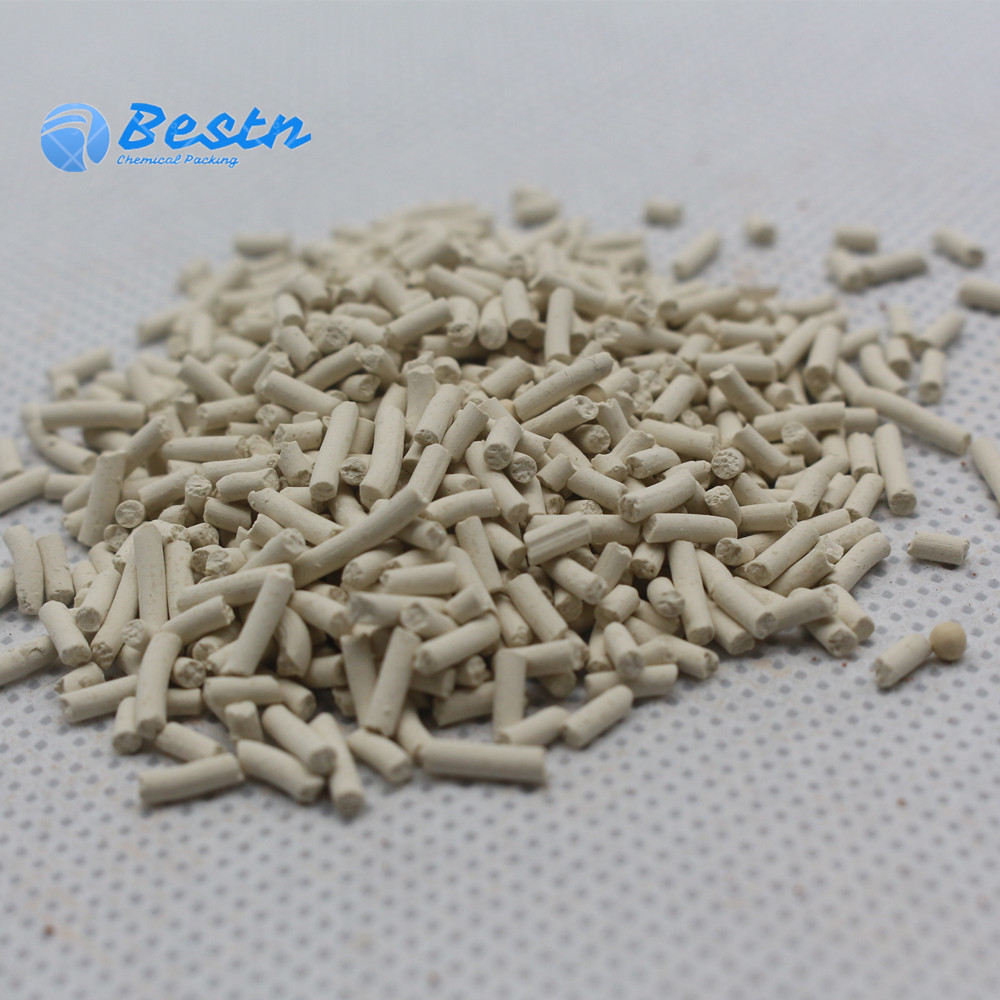

13X Molecular sieve

Model Number:BS-13X

Place of Origin:Pingxiang,China

Keywords:Molecular sieve 13X, 13x zeolite, 13X PSA molecular

It also has the highest theoretical capacity of the common adsorbents and very good mass transfer rates. It can remove impurities too large to fit into a type A crystal and is commonly used to separate nitrogen from oxygen.

INQUIRE NOW Contact us 86 (0) 799 6699600 / 0086 15179934828 info@bestpacking.cn
jenny@towerpacking.cn

Molecular Sieve 13X is the sodium form of the type X crystal and has a much larger pore opening than the type A crystals. It will adsorb molecules with a kinetic diameter of less than 9 Angstrom (0.9 nm) and exclude those larger.


It also has the highest theoretical capacity of the common adsorbents and very good mass transfer rates. It can remove impurities too large to fit into a type A crystal and is commonly used to separate nitrogen from oxygen.



Typical Chemical Formula
Na2O  Al2O3  2.45 SiO2  6.0 H2O
SiO2: Al2O3 ≈2.6-3.0

Technical Parameter

Item

Unit

Technical data

Shape



Pellet

Sphere

Diameter

mm

1.5-1.7

3.0-3.3

2.0-3.0

3.0-5.0

Size ratio up to grade

%

≥98

≥98

≥96

≥96

Bulk density

g/ml

≥0.65

≥0.65

≥0.70

≥0.70

Wear ratio

%

≤0.20

≤0.20

≤0.10

≤0.10

Crushing strength

N

≥30/cm

≥70/cm

≥50/p

≥70/p

Static water adsorption

%

≥27

≥27

≥27

≥27

Static CO2 adsorption

NL/g

≥18.5

≥18.5

≥18.5

≥18.5

Water content, as shipped

%

≤1.5

≤1.5

≤1.5

≤1.5



Application
 ● Removal of CO2 and moisture from air (air pre-purification) and other gases.
 ● Separation of enriched oxygen from air.
 ● Removal of mercaptans and hydrogen sulphide from natural gas.
 ● Removal of mercaptans and hydrpogen sulphide from hydrocarbon liquid streams (LPG, butane, propane etc.)
 ● Catalyst protection, removal of oxygenates from hydrocarbons (olefin streams).
 ● Removal of n-chained compositions from aromatics.
 ● Production of bulk oxygen in PSA units.
 ● Production of medical oxygen in small scale oxygen concentrators.


Regeneration
Molecular sieve Type 13X can be regenerated by either heating in the case of thermal swing processes; or by lowering the pressure in the case of pressure swing processes.
To remove moisture from a 13X molecular sieve, a temperature of 250 -300°C is required. A properly regenerated molecular sieve can give moisture dew points below -100°C, or mercaptan or CO2 levels below 2 ppmv.
The outlet concentrations on a pressure swing process will depend on the gas present, and on the conditions of the process.


Size
13X - Zeolites are available in beads of 1-2 mm, (10x18 mesh) 2-3 mm, (8x12 mesh) , 2.5-5 mm, (4x8 mesh) and as powder, and in pellet 1.6”, 3.2”.


Attention
To avoid damp and pre-adsorption of organic before running, or must to be reactivated.
