Home > Products > Ceramic Foam Filter
< >

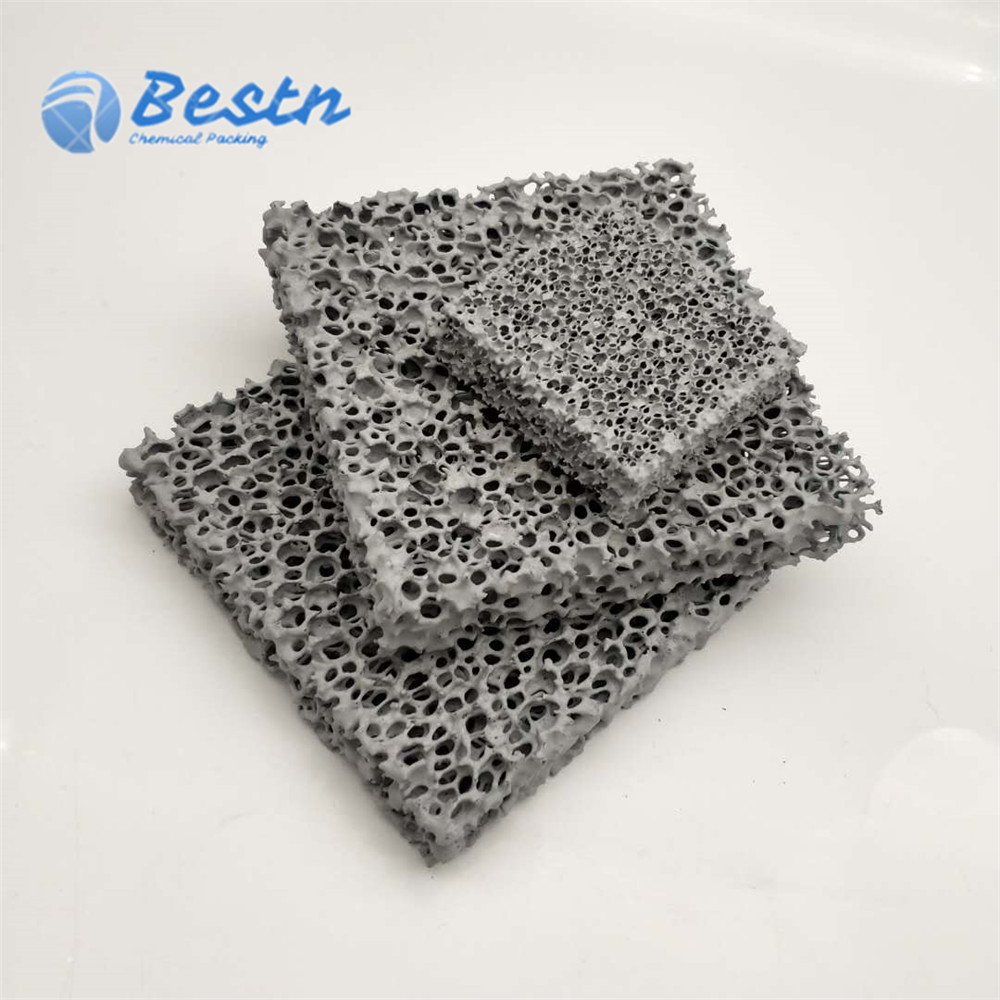

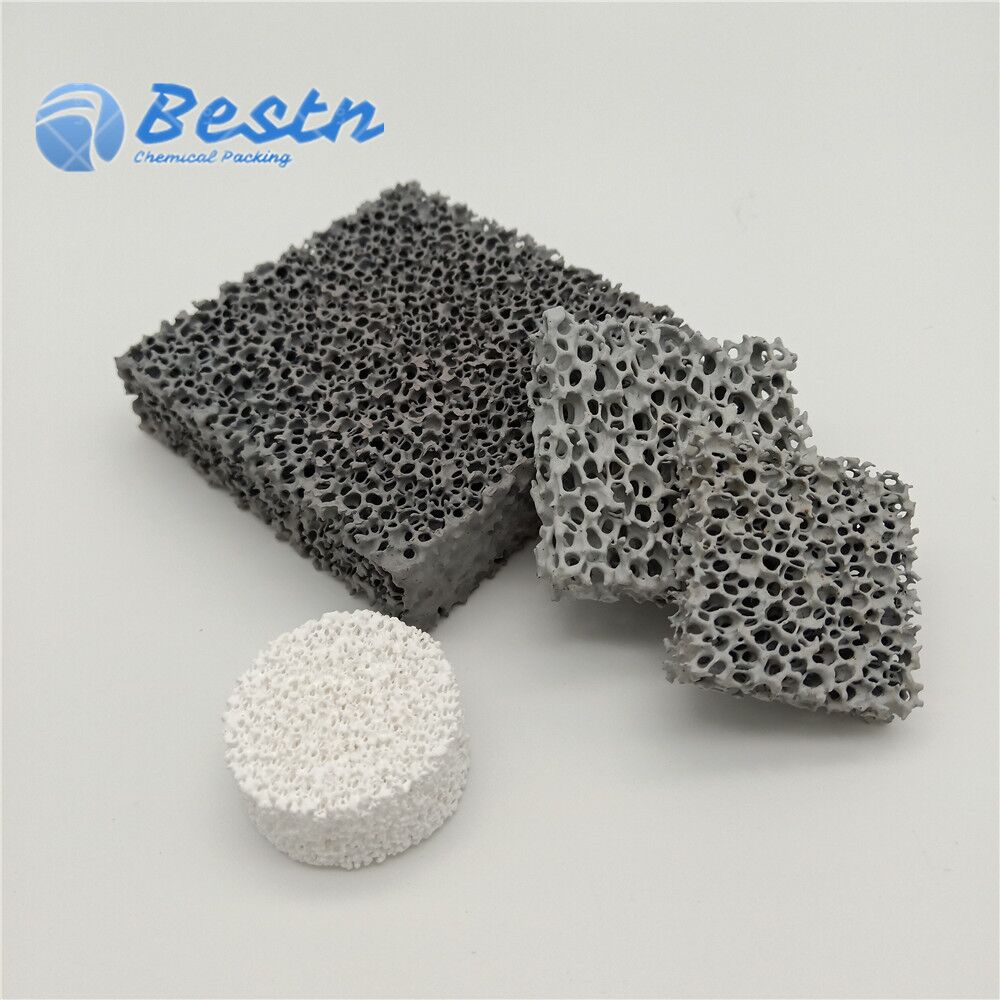

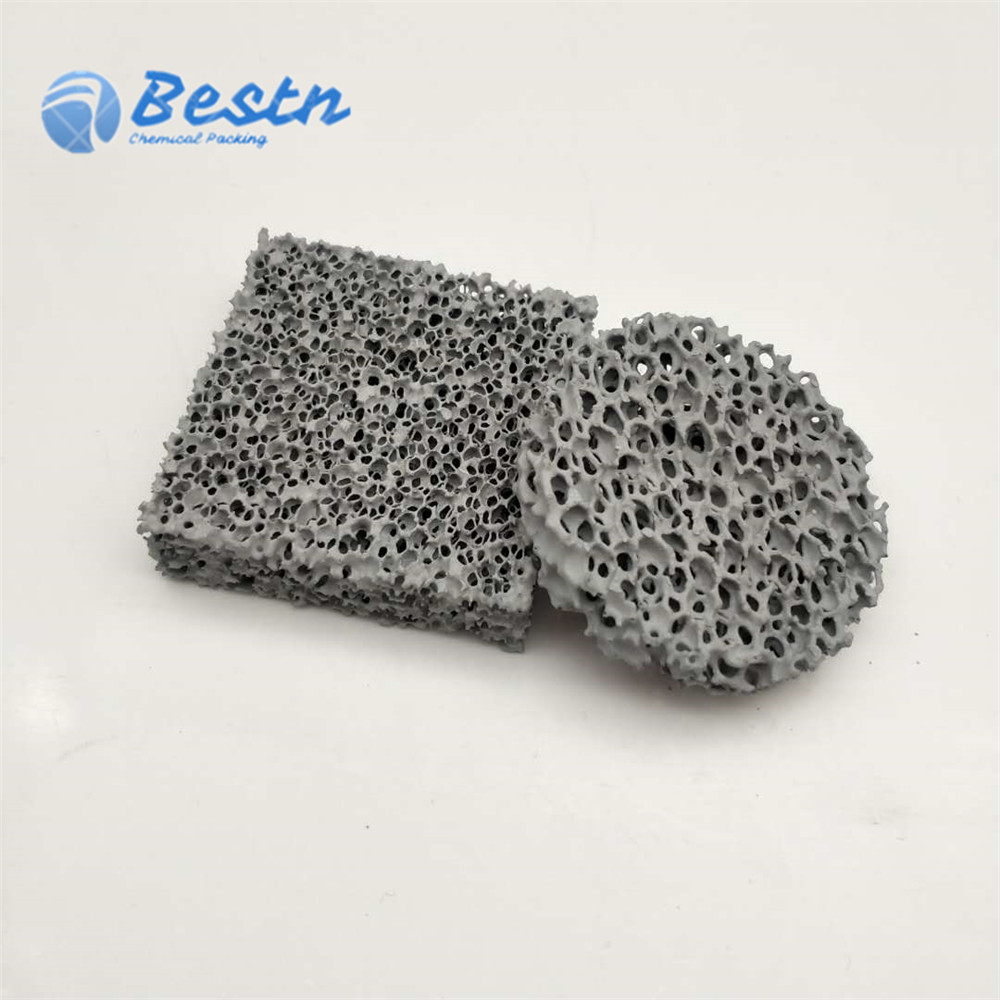

Silicon Carbide Foam Filter

Model Number:BS-SCFF

Place of Origin:PINGXIANG,CHINA

Keywords: Silicon Carbide Foam Filter, Sic ceramic foam filter, metal cating filter foam

● Decontaminate the melting metal liquid ● Simplified gating system ● Improve the metallurgical structure of the castings ● Reduce imparities of the castings ● Improve casting quality rate ● Reduce casting internal re-oxidation defects ● Reduce the surface defects after machining of the castings

INQUIRE NOW Contact us 86 (0) 799 6699600 / 0086 15179934828 info@bestpacking.cn
jenny@towerpacking.cn


Silicon Carbide Ceramic Foam Filters mainly for filtration of cast iron and non-ferrous alloys. With their excellent resistance to attack and corrosion from molten iron liquid, they can effectively remove inclusions, reduce trapped gas from liquid metal and provide laminar flow, and then the filtered metal is significantly cleaner. Cleaner metal results in higher-quality castings, less scrap, and fewer inclusion defects, all of which contribute to bottom-line profit.


SiC Ceramic Foam Filters is available in all standard dimensions and different thickness. The most common porosities are PPI 10, 20 and 30; higher porosities are available upon request. Custom-made cut-to-size filters are also possible.



SiC Ceramic Foam Filters common sizes in Round shape:

40x11mm, 40x15mm, 50x15mm, 50x20mm, 60x22mm,
70x22mm, 80x22mm , 90x22mm,100x22mm, 305x25mm



SiC Ceramic Foam Filters common sizes in Square shape:

40x40x11mm, 40x40x15mm, 50x50x22mm, 75x75x22mm, 50x75x22mm,
100x75x22mm, 100x100x22mm, 55x55x15mm, 150x150x22mm


Functions of ceramic foam filter

● Decontaminate the melting metal liquid
● Simplified gating system
● Improve the metallurgical structure of the castings
● Reduce imparities of the castings
 Improve casting quality rate
● Reduce casting internal re-oxidation defects
● Reduce the surface defects after machining of the castings




Physical and Chemical Properties

Material

Silicon Carbide

Color

Grey black

Pore Density

8-60ppi

Porosity

80-90%

Refractoriness

≤1500℃

Bending Strength

>0.8Mpa

Compression Strength

>0.9Mpa

Volume-weight

0.35-0.5 g/cm3

Thermal shock resistance

6times/1100℃

Application

Ductile Cast Iron, Malleable Cast Iron, Gray iron and other Cast Iron





Specification for Silicon Carbide Foam Filter

Dimension (mm)

Pouring rate (kg/s)

Filtration capacity (ton)

Grey Iron

Ductile Iron

Grey Iron

Ductile Iron

40*40*22

4

3

65

32

50*50*22

6

4

100

52

75*50*22

9

6

150

75

75*75*22

14

9

220

100

100*50*22

12

8

200

100

100*75*22

18

12

300

150

100*100*22

25

16

400

200

150*150*22

50

36

900

450
