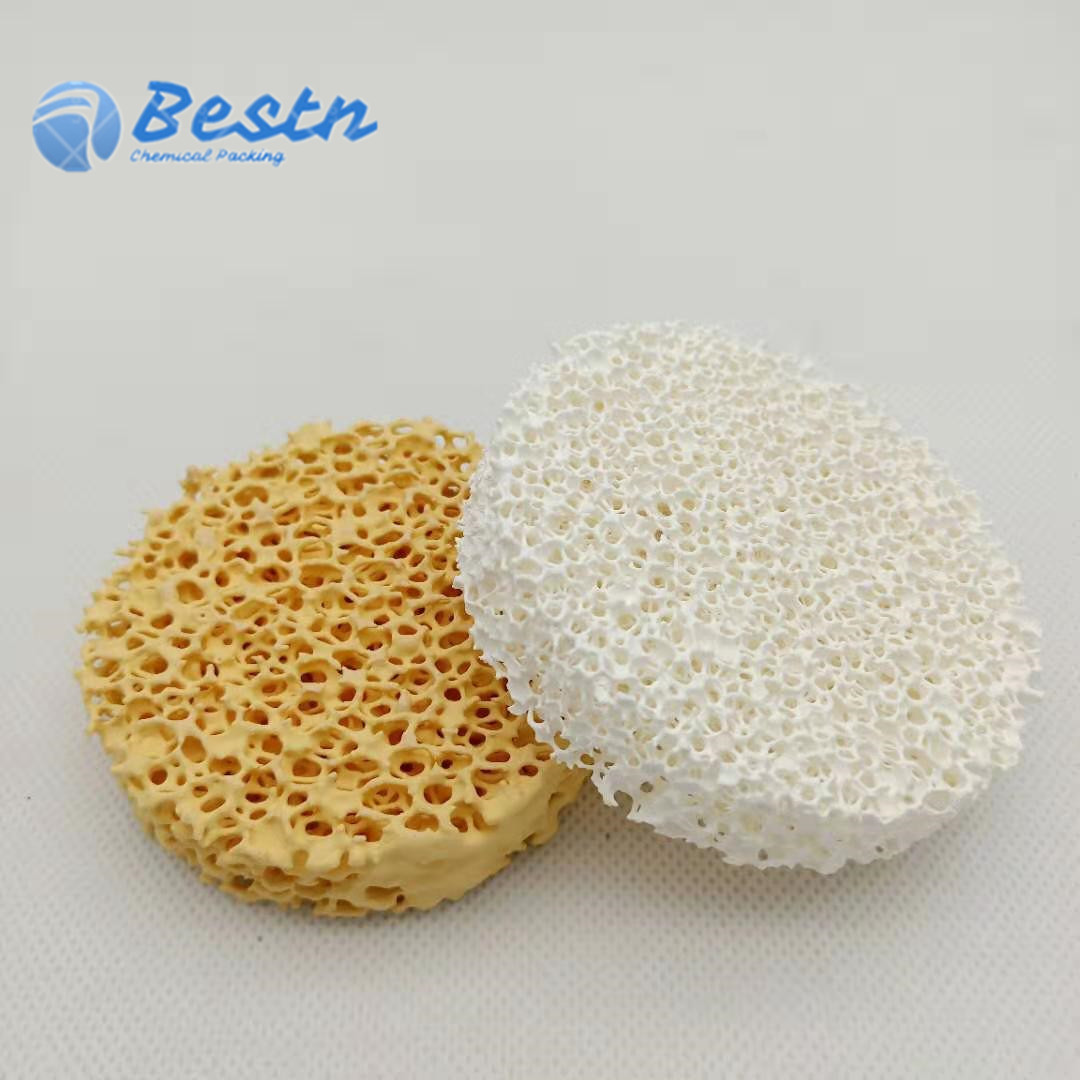

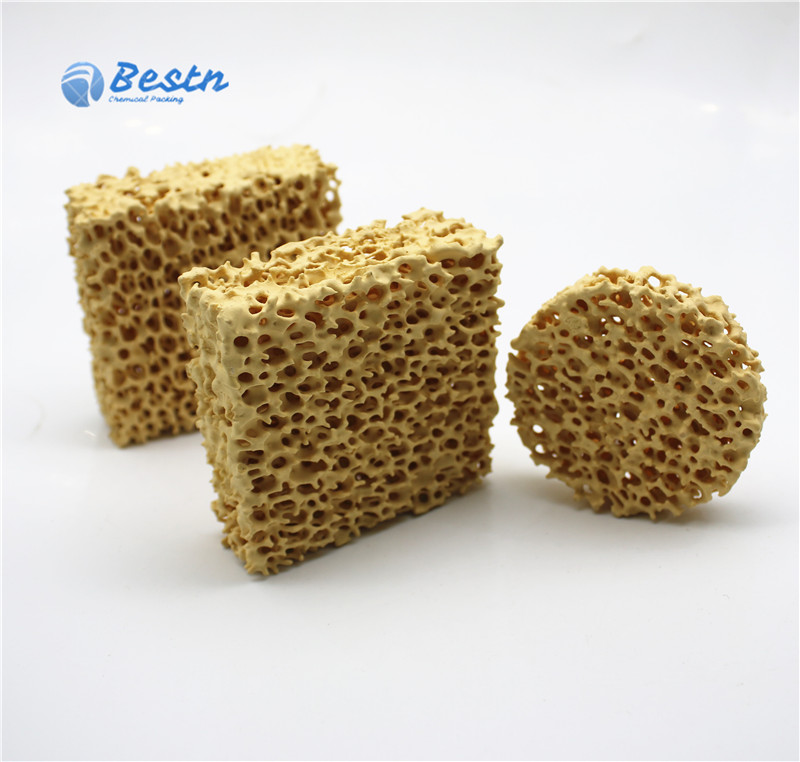

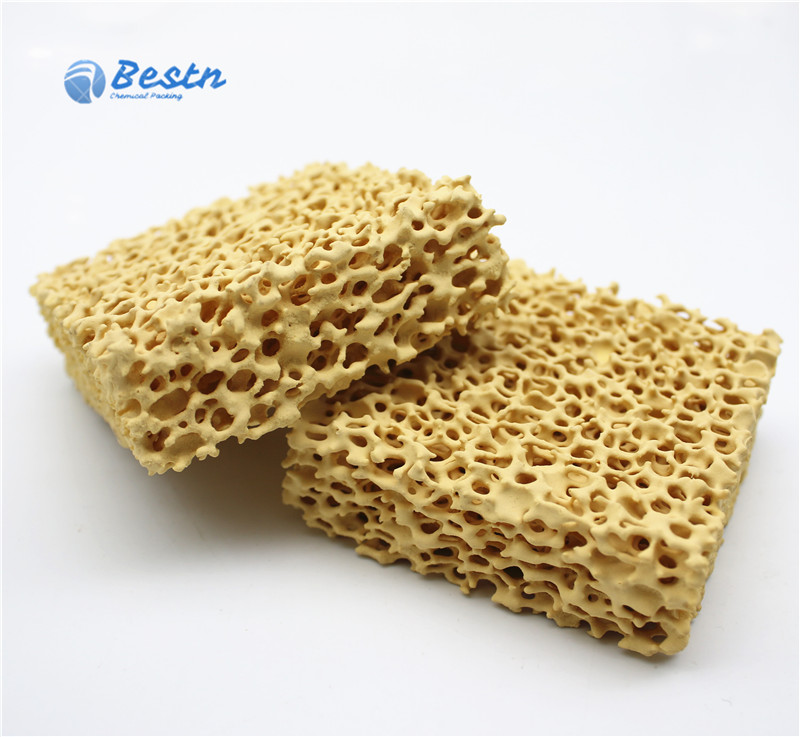

Zirconia Ceramic Foam Filter

Model Number:BS-ZCFF

Place of Origin:Pingxiang,China

Keywords:Zirconia Ceramic Foam Filter ,ZIR foam filter, ceramic foam filter

Zirconia Ceramic Foam Filter is a phosphate-free, high metling point, It is characterized by high porosity and mechanochemical stability and excellent resistance to thermal shock and corrosion from molten steel,

INQUIRE NOW Contact us 86 (0) 799 6699600 / 0086 15179934828 info@bestpacking.cn
jenny@towerpacking.cn

Zirconia Ceramic Foam Filter is a phosphate-free, high metling point, It is characterized by high porosity and mechanochemical stability and excellent resistance to thermal shock and corrosion from molten steel, It can effectively remove inclusions, reduce trapped gas and provide laminar flow when molten zieconia foam  filtrated, it is machined to tight dimensional tolerance during production, this combination of physical properties and precise tolerance make them first choice for molten steel,alloy steel, and stainless steel, etc.




Technical parameters:

Material

Zirconia

Color

Yellow

Pore Density

8-60ppi

Porosity

80-90%

Refractoriness

≤1700°C

Bending Strength

>1.0Mpa

Compression Strength

>1.2Mpa

Volume-weight

0.9-1.5 g/cm3

Thermal shock resistance

6times/1100°C

Application

High melting point metal alloys like Steel,Alloy Steel,Stainless Steel etc



Specification for Steel Casting:

Dimensions (mm)

Zirconia Foam Filter

Pouring Rate(kg)

Filtration Capacity(kg)

50×50×22

3~5

30

50×75×22

4~6

40

75×75×22

7~12

60

75×100×22

8~15

80

100×100×22

14~20

100

Dia 50×22

2~6

18

Dia 80×22

6~10

50

Dia 90×22

8~16

70


Advantages:

Precise Dimension Tolerance

High Mechanical Strength

Chemical Stability and Corrosion-resistance for molten aluminum.

Phosphate-free, No Pollution for Environment

Purifying Liquid Aluminum, Improving Quality

Reduce Defects

Reduce Cost

Increase Yield Rate

Easy to Use

Size from 40-600mm available.
