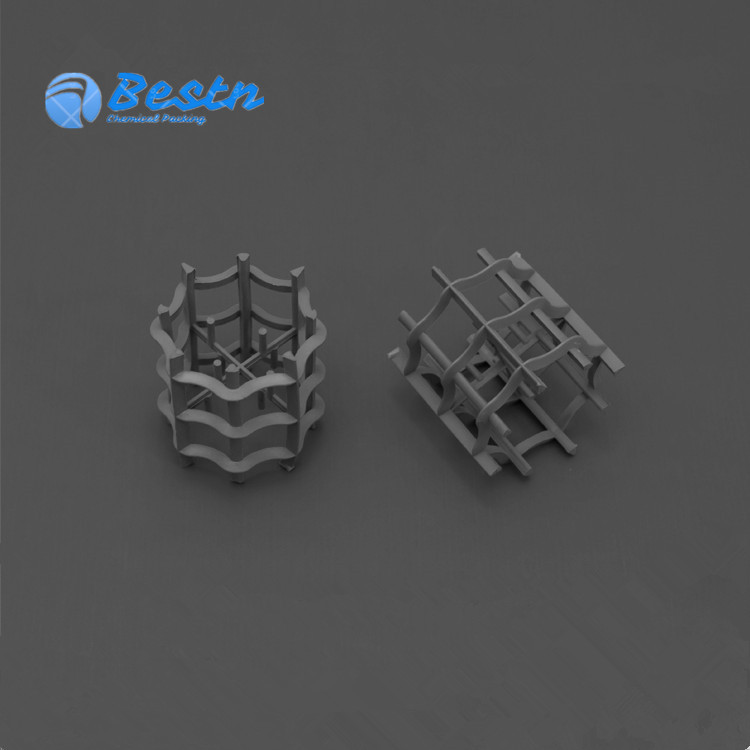

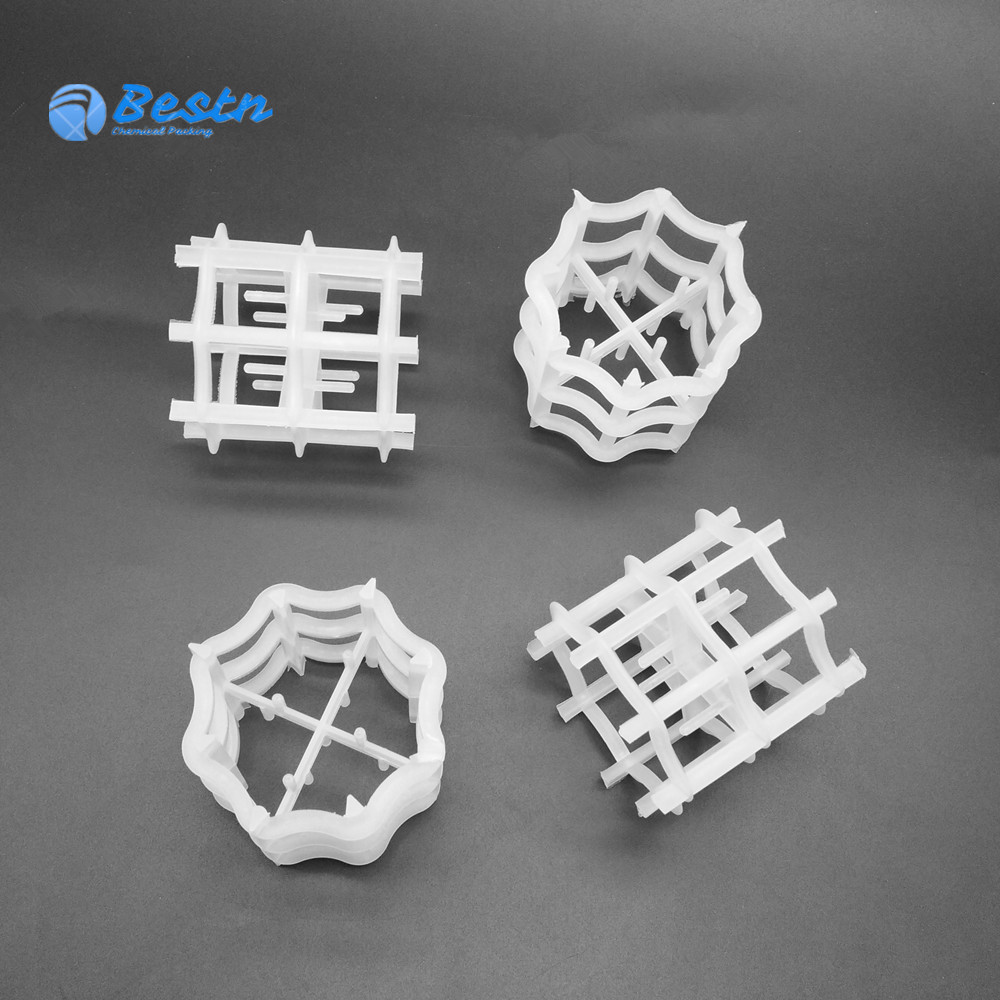

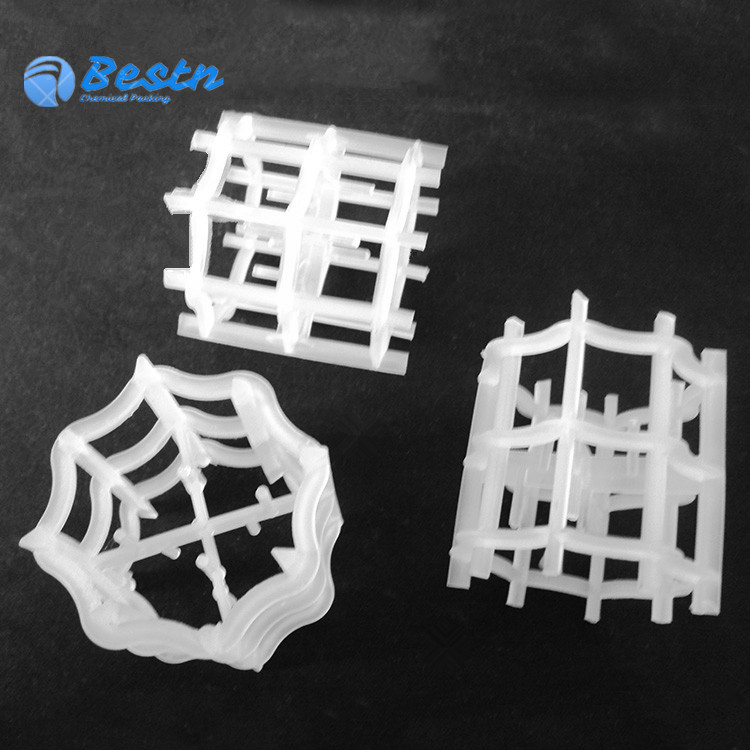

Inner Arc (VSP) Ring
Model Number:BS-VSP
Place of Origin:Pingxiang,China
Keywords:Mella ring, very special packing, VSP ring,Inner Arc Ring
Applications ● Various separation ● Absorption and desorption equipment ● Vacuum distillation plant ● Decarburateing and desulfuration systems ● Ethyl benzene separation ● Iso-octane/toluene systems
INQUIRE NOW
Contact us
86 (0) 799 6699600 / 0086 15179934828
jenny@bestpacking.cn
Petrochemical Packing VSP Ring Desulfuration Systems
Mella Ring is also name very special packing (VSP Ring) means very excellent packing.
Advantage
It has many advantages such as low pressure drop, large throughout, high efficiency, high operating elasticity, and perfect strength. It has rational symmetry, excellent inner structure and large free space. Compared with Pall Ring, its flux efficiency is 15-30%, its pressure drop is reduce 20-30%.
Applications
● Various separation
● Absorption and desorption equipment
● Vacuum distillation plant
● Decarburateing and desulfuration systems
● Ethyl benzene separation
● Iso-octane/toluene systems
Specification
Diameter (mm) |
Pieces per m3 |
Specific surface area (m2/m3) |
Void volume (m2/m3) |
Dry packing factor (m-1) |
25 |
45000 |
185 |
93 |
133 |
50 |
6000 |
108 |
94 |
131 |
58 |
4800 |
106 |
92 |
129 |
90 |
1100 |
78 |
97 |
125 |
